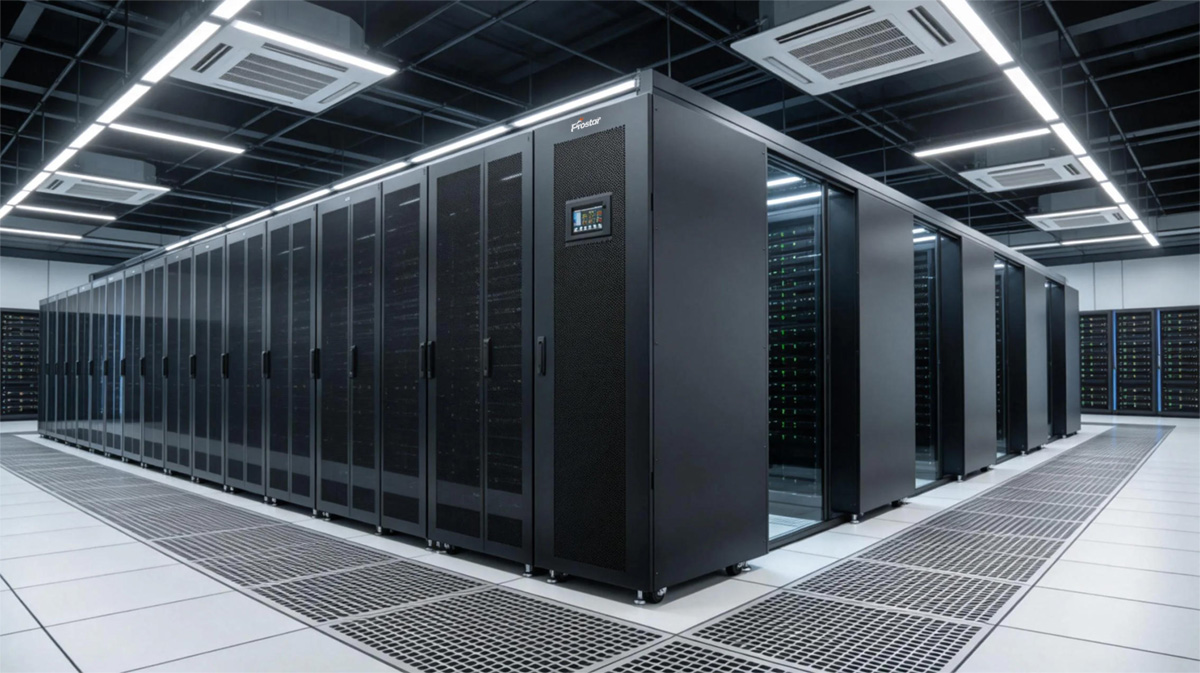

Prostar MPS600K-50K best double conversion modular online ups 600kva designed to provide reliable and efficient power protection for critical applications. This system is engineered with advanced modular architecture. The modular online ups 600kva ensures maximum uptime, flexibility, and ease of maintenance. This is beneficial for data centers, industrial facilities, healthcare institutions, and large enterprise IT environments.

With a robust capacity of 600 kVA, this modular online UPS system is engineered to ensure uninterrupted power delivery, safeguarding sensitive equipment and data in various environments.

Prostar MPS600K-50K best double conversion modular online ups 600kva

Modular Online UPS Key Features

True Double Conversion Online Technology

Provides continuous, clean, and stable power by isolating critical loads from all utility power anomalies, including sags, surges, harmonics, and outages. Zero transfer time to battery mode ensures uninterrupted power supply during grid failures.

Modular Scalability

Built with 50kVA hot-swappable power modules, allowing seamless capacity expansion from initial deployment up to 600kVA (12 modules in parallel).

High Efficiency (Online Mode)

Peak Efficiency: Up to 95.5% in double-conversion mode.
Eco-Mode Efficiency: Up to 98.5%.

The high efficiency reduces heat dissipation. It lowers cooling requirements and operational costs. As a result, there is a lower TCO (Total Cost of Ownership) and PUE (Power Usage Effectiveness) for your facility.

Advanced Redundancy (N+X)

The modular architecture allows for configurable redundancy. Users can configure the system for N+1 or N+X redundancy. This setup ensures that if one module fails, the remaining modules instantly take over the full load. There is no interruption, guaranteeing 100% load availability.

Hot-Swappable Design

Power modules, control units, and fan assemblies can be replaced without shutting down the system or interrupting protected loads.

Remote Management

The system is equipped with multiple communication slots for SNMP, Modbus, and TCP/IP protocols. This allows seamless integration with data center infrastructure management (DCIM) platforms and remote monitoring tools.

Compact Footprint & Flexible Installation

Space-saving rack-mount or floor-standing design fits seamlessly into existing infrastructure. Top or bottom cable entry options simplify installation in diverse facility layouts.

Modular Online UPS 600kVA Diagram

The system is constructed using hot-swappable 50kVA power modules. A standard cabinet can house up to 10 modules to achieve the full 600kVA capacity. These modules are “Plug-and-Play.” If a module fails, it can be removed and a new one inserted while the UPS remains online. This reduces the Mean Time to Repair (MTTR) to minutes. It also eliminates the need to switch the critical load to unprotected bypass power. More details: MPS50K 3 phase modular ups hot-swappable power module 50kW

Modular UPS System in Parallel: Up to 1.2MVA

For enterprise environments that need more power capacity than a single unit, modular online ups 600kva supports seamless system-level parallelization. It is also suitable for environments requiring the highest levels of fault tolerance. By connecting two 600kVA Modular Online UPS systems in parallel, organizations can achieve a massive 1.2 MVA (1200 kVA) power protection solution. This configuration offers the inherent benefits of internal module redundancy. The modular online ups also provides system-level redundancy. Together, these create an ultra-resilient power infrastructure. This is ideal for hyperscale data centers, large industrial plants, and critical national infrastructure.

The parallel architecture minimizes risks associated with power failure, as multiple modules provide backup support. Users can start with a smaller capacity and expand the system as required, making it a scalable investment. A centralized control system can monitor multiple modules, simplifying management and maintenance tasks.

Modular UPS Cabinet Wiring Diagram

Wiring a modular UPS cabinet correctly is crucial for ensuring optimal performance, safety, and reliability in power distribution. Proper wiring will facilitate efficient interconnection between modules and the associated electrical systems.

Input Power Distribution

Wires connecting the mains supply to the UPS modules, usually requiring appropriate circuit breakers.

Battery Connections

Connections between the UPS modules and the battery packs, ensuring correct voltage and ratings.

Output Connections

Wires linking the UPS output to the load, including breaker protection for the connected equipment.

Communications Wiring

Cables for monitoring and communicating between UPS modules, including connection to management systems.

Ground Connections

Grounding wires to prevent electrical faults and enhance safety, ensuring proper earthing of the entire system.

Installation Checklist

Component	Requirement
Cable Sizing	Based on 600kVA max capacity (approx. 900A-1000A per phase).
Phase Rotation	Must be L1-L2-L3 clockwise; the UPS will fault if phases are reversed.
Torque	All busbar bolts must be torqued to specific N-m settings to prevent “hot spots.”
Ventilation	Maintain at least 50cm-80cm clearance at the rear for exhaust airflow.

Technical Specification

Item	Specification
UPS Type	Modular Online UPS (Double Conversion)
Rated Capacity	600kVA / 600kW
Power Factor	1.0
Power Module	50kVA / 50kW
Phase	3 Phase In / 3 Phase Out
Input Voltage	380/400/415Vac (optional)
Output Voltage	380/400/415Vac
Input Frequency	50/60Hz, 40Hz ~70Hz
Output Frequency	50/60Hz, 46Hz ~ 54Hz or 56Hz ~ 64Hz
Transfer Time	0ms
Battery Voltage	±192VDC ~ ±240VDC
Output Waveform	Pure Sine Wave
Efficiency	Utility Mode: 95.5%; ECO Mode: 98.5%; Battery Mode: 94.5%
Overload Capacity	60 mins for 110%, 10 mins for 111%-120%,; 1 min for 121%-150%, 200ms for >150%
Display	LCD display
Communication	RS232 / RS485 / Dry Contact / SNMP (optional)
Parallel Function	Supported
Protection	Overload, short circuit, over-temperature, battery low voltage, etc.
Application	Data center, telecom, hospital, industrial, banking

Online UPS Details

System Input Information

Power Module Input Information

System Battery Information

Module Output Information

Application Scenarios

Hyperscale Data Centers: Supporting thousands of servers where even a single cabinet failure cannot be tolerated.
Financial Trading Hubs: Ensuring absolute continuity for high-frequency trading platforms with massive power draws.
Large Manufacturing Lines: Protecting automated production lines where a power dip could result in significant material waste.
Broadcasting & Media Centers: Guaranteeing uninterrupted transmission for live global events.
Hospital Complexes: Providing 2N power protection for critical care units, surgical theaters, and diagnostic imaging centers.

Why Choose a Parallel MPS600K-50K Deployment?

Deploying two MPS600K-50K systems in parallel is not just about adding capacity; it is about engineering maximum resilience. This architecture removes the single point of failure at the cabinet level. It offers a “fail-safe” environment where maintenance, upgrades, or unexpected faults in one unit never impact the critical load.

With its hot-swappable modularity, this configuration demonstrates intelligent load balancing. It ensures future-proof scalability. The dual MPS600K-50K modular online ups 600kva configuration represents the gold standard in large-scale power protection.
