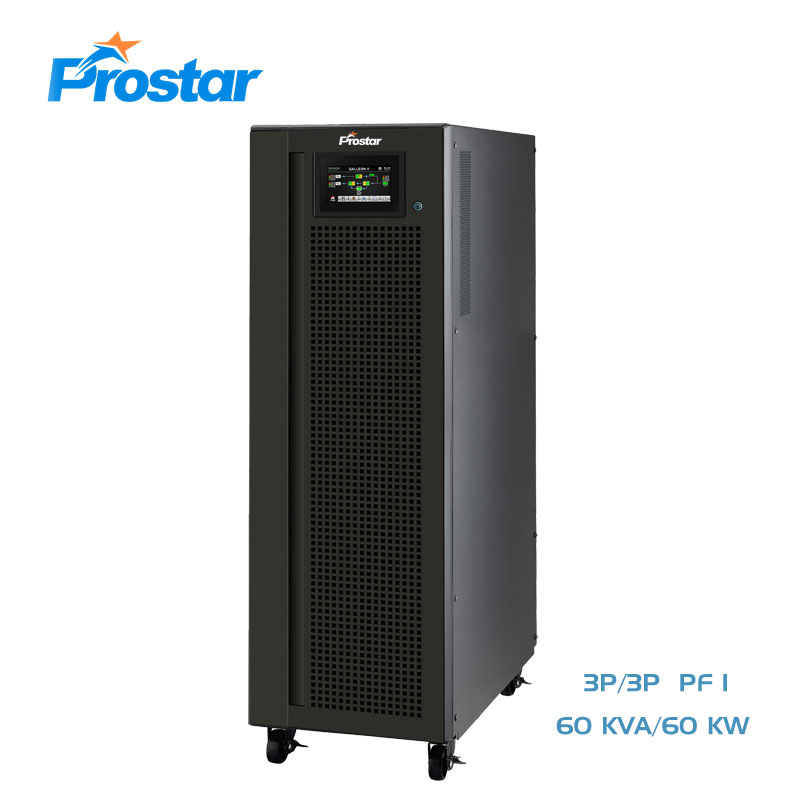

PHP60K igbt design 60kva ups 3 phase for data center power solutions
3 Phase Online UPS | 60KVA / 60KW | OUTPUT PF 1 | 3P/3P | 380Vac/400Vac/415Vac | Max. 6 units in parallel
Prostar PHP60K igbt design 60kva ups 3 phase for data center power solutions provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It’s recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.
True online double conversion igbt design 60kva ups is specially designed with pluggable power module and front access to simplify maintenance.
Output power factor 1 true three phase 60kva ups is non-isolated, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability.
Voltage and Frequency Independent (VFI) design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.
3 Phase 60KVA UPS Features & Benefits
1. True On-Line Double Conversion 3 Phase
- Provides fully regulated sine wave AC output for critical telecom, network, security, financial, corporate and light industrial applications
- +/-1% output voltage regulation in online and battery modes
- Output power factor 1 is allowing for more connected devices
- Selectable 380/400/415V output voltage
- Wide input voltage window (190V–478V) minimizes battery use and prolongs battery life
2. IGBT Inverter Technology
- Produces output power with less than 2% THD to keep connected equipment functioning at its peak
- Low <4% THDi input rating and advanced IGBT rectifier
3. Modulity Design
- Pluggable power module design
- Front access design for esay maintenance
4. Paralleling Capability
- Connect up to 6 units in parallel configuration for increased capacity and fault tolerance
5. Automatic and Manual Bypass
- Manual bypass switch as well as an automatic bypass function ensures 100% availability of connected equipment by safely passing through AC power when the power module requires maintenance
6. ECO Mode
- Operates at efficiency levels as high as 99% when input line conditions are favorable
7. SNMP/Web Capability
- Slot for SNMP card network interface or AS400 relay card for remote monitoring and control options
8. Small-Footprint Tower Design
- Reduced-size black tower case saves valuable floor space
- Matching external battery cabinets enable extended runtime
Uninterruptible Power Supply Details
UPS Wiring Terminal View

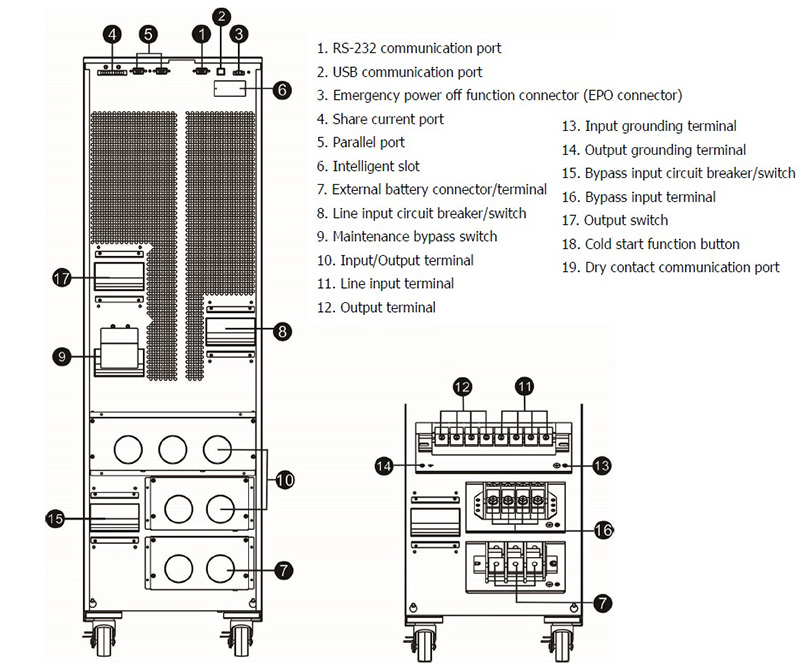

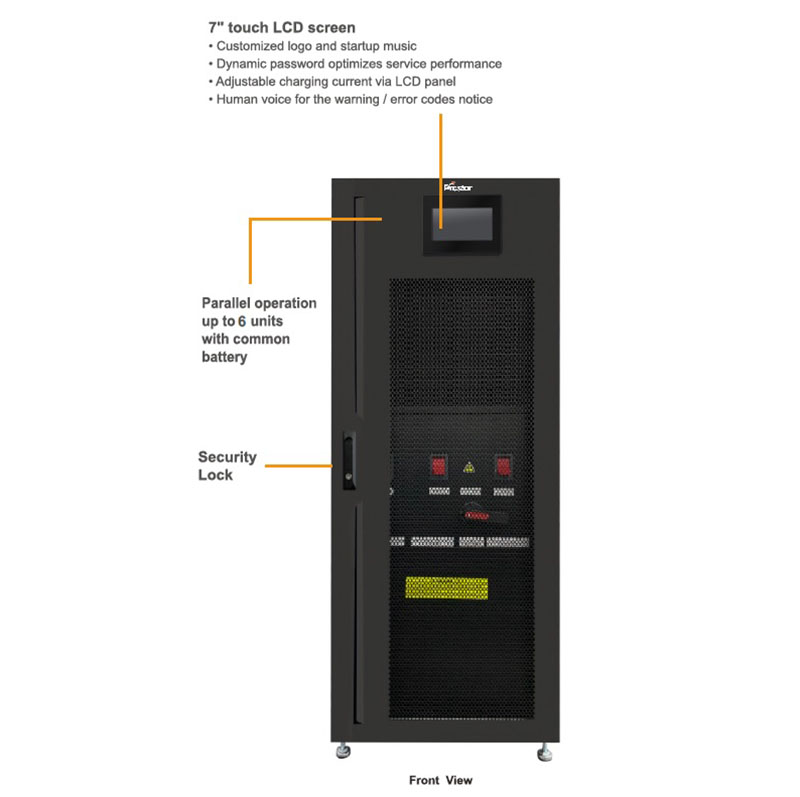

Online UPS 30KVA/60KVA Front and Rear View

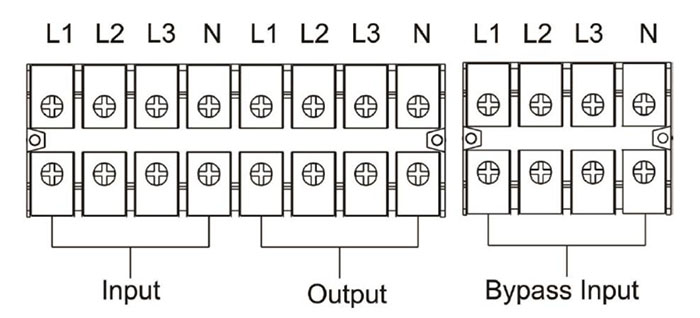

Terminal block wiring for UPS 30KVA / 60KVA

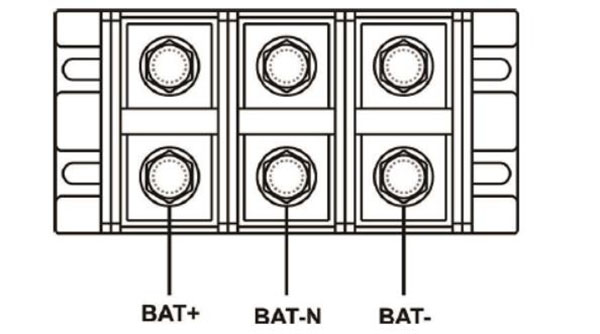

Battery terminal block wiring for UPS 30KVA / 60KVA

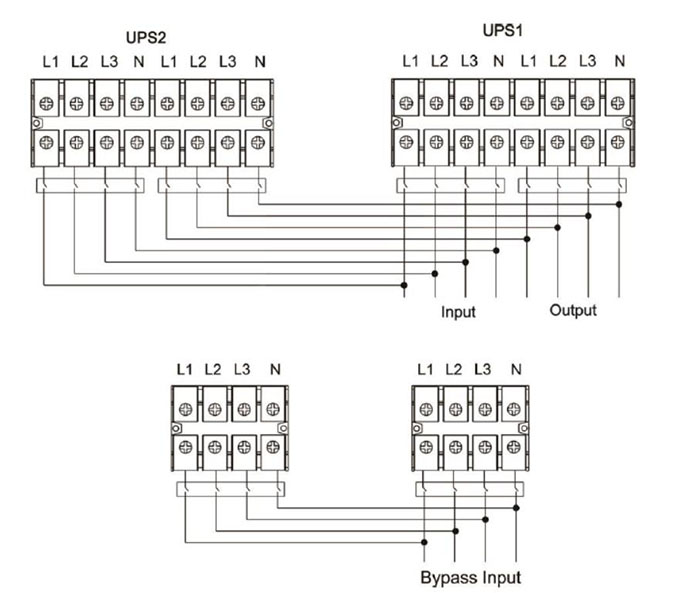

Wiring Parallel System for UPS 30KVA / 60KVA
The Articles You May Like
| Model | PHP60K |
| Capacity | 60KVA/60KW |
| Noise | Less than 70 dB @ 1 Meter |
| Dimension(WxDxH mm) | 815x300x1000 |
| Weight(Kgs) | 74 |
| INPUT | |
| Nominal Voltage | 3 Phases 4 Wires, 380Vac/400Vac/415Vac |
| Voltage Range | 110Vac – 300Vac @50% load; 176-276Vac @100 load |
| Nominal Frequency | 50Hz/60Hz (Automaticly) |
| Frequency Range | 40Hz – 70Hz |
| Power Factor | >=0.99 @100% load |
| Harmonic Distortion(THDi) | < 4% at full liner load |
| OUTPUT | |
| Voltage | 3 Phases 4 Wires, 380Vac/400Vac/415Vac ± 1% |
| Frequency | 50Hz/60Hz±1% |
| Frequency Range(Synchronized) | 46Hz – 54Hz or 56Hz – 64Hz |
| Harmonic Distortion | Linear load<2%, Non-linear load<5% |
| Overload Capacity | 100-110% for 60mins, 111-125% for 10mins, 126-150% for 1 min, >150% for 400ms |
| Crest Factor | 3:1 |
| Wave Form | Pure sine wave |
| Transfer Time | 0ms |
| BYPASS | |
| Nominal Voltage | 380Vac/400Vac/415Vac |
| Voltage Range | 305Vac – 457Vac |
| Frequency Range(Synchronized) | 46Hz – 54Hz or 56Hz – 64Hz |
| Overload Capacity | >130% 1 min(default); Continously working until breaker protection(optional) |
| EFFICIENCY | |
| AC Mode | 96.00% |
| ECO Mode | 99.00% |
| Battery Mode | 95.00% |
| BATTERY | |
| Battery Type | Depending on application |
| Battery Numbers | 32 – 40Pcs (Adjustable) |
| Max. Charging Current | 1A – 18A (Adjustable) |
| Charging Voltage | +/- 13.65V*N (N=16 – 20) |
| INDICATORS | |
| 7 Inch Touch LCD Display | UPS status, load level, battery level, input/output voltage, discharge time, and fault conditions |
| SYSTEM | |
| Protection | Input over-voltage, under-voltage; output overload, shortcircuit; Inverter over-temperature; Battery under-voltage,over-voltage |
| IP Protection | IP20 |
| Parallel Mode | N+1,N+X,can be in parallel with differenct power capacity |
| ENVIRONMENT | |
| Operating Temperature | 0℃ to 40℃ |
| Humidity | 0~95% (non-condensing) |
| Altitude | 0 – 1500m at full load |
| Safety compliance | EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU |
| EMC conformance | EN 62040-2 and Directive 2014/30/EU |
| MANAGEMENT | |
| Smart RS-232/USB | Windows 2000/2003/XP/Vista/7/8,Linux and MAC |
| SNMP | Power managemetn from SNMP manager and web browser |
