PHS10K-48L-PRO pure sine wave 10kw hybrid inverter single phase 48v

Prostar PHS10K-48L-PRO pure sine wave 10kw hybrid inverter single phase 48v extends beyond its dual PV inputs, offering seamless integration with battery storage and grid connections.

The inverter’s hybrid design allows it to operate both on-grid and off-grid, giving users the flexibility to switch between the two modes as needed. When connected to the grid, it can provide backup power during outages, ensuring a continuous supply of electricity. In off-grid mode, it relies solely on solar power, making it an excellent choice for remote locations or areas with unreliable grid connections.

PHS10K-48L-PRO pure sine wave 10kw hybrid inverter can independently track and optimize the power output from each PV array. This can be particularly useful if the two arrays have different orientations, tilts, or shading conditions.

Compatible with a wide range of battery technologies, including lithium-ion, lead-acid, and others, the inverter facilitates energy storage and enables load shifting for optimal utilization of renewable energy.

10kW Hybrid Inverter Features

Pure Sine Wave Output

The hybrid inverter ensures a stable and reliable power supply with its pure sine wave output, providing clean energy for your electronic devices.

Efficient MPPT Solar Controller

Equipped with a built-in 160A MPPT solar controller, the off-grid power inverter boasts high efficiency in converting solar power into usable energy, optimizing your system’s overall performance.

Dual PV Input Channels

The inverter has two separate input channels, each capable of handling the output from a separate PV array. This allows for flexibility in system design and installation.

Programmable Multiple Operations

Offers flexibility with multiple operating modes including Grid Tie, Off Grid, and Grid-tie with Backup, allowing customization to suit specific energy needs.

Dual Outputs for Smart Load Management

Enables efficient distribution of power to different loads, optimizing energy usage.

LCD Display Panel

Provides comprehensive information at a glance, allowing users to monitor system performance and parameters easily.

User-adjustable Battery Charging Current and Voltage

Allows customization of battery charging parameters for optimal battery health and performance.

Self-consumption and Feed-in to the Grid

Maximizes self-consumption of solar energy while enabling excess energy to be fed back into the grid.

Programmable Supply Priority

Offers flexibility in power source prioritization between PV, Battery, or Grid, ensuring efficient energy utilization.

Reserve Communication Interface for BMS

Facilitates integration with Battery Management Systems for enhanced control and monitoring capabilities.

One-key Restoration to Factory Reset

Simplifies troubleshooting and system maintenance by allowing quick restoration to default settings.

Built-in Lithium Battery Automatic Activation

Streamlines the setup process and ensures compatibility with lithium batteries.

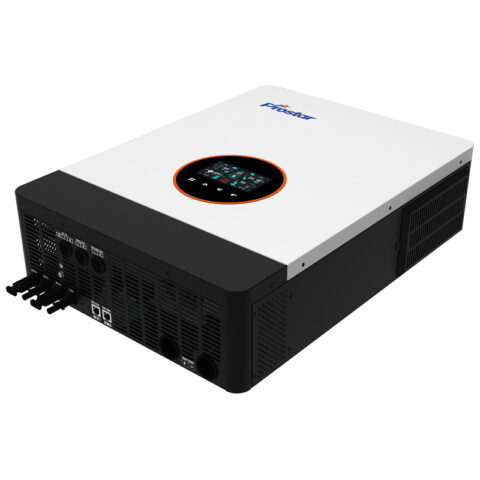

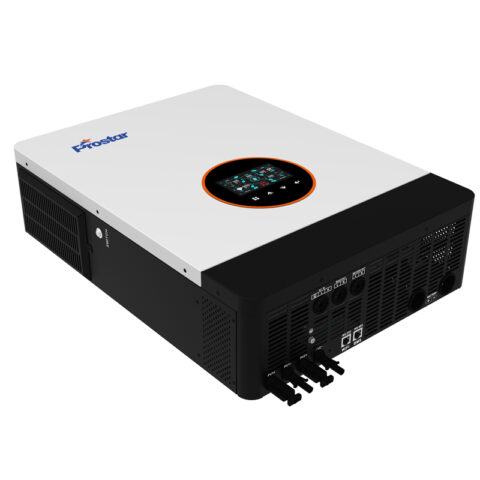

Hybrid Solar Inverter Overview

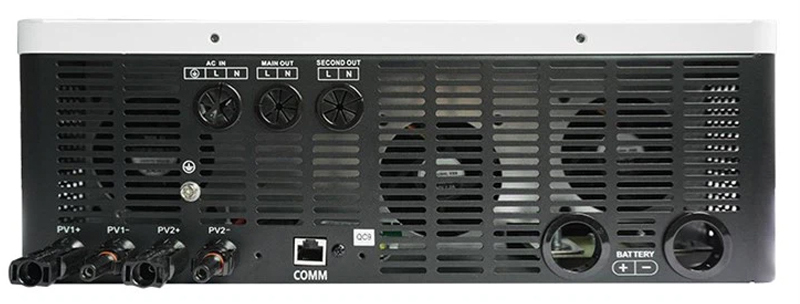

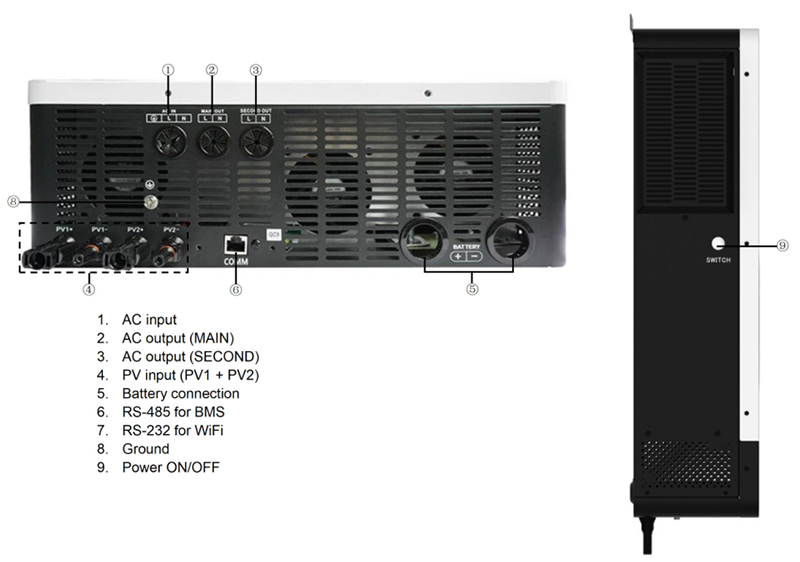

Hybrid Solar Inverter Details

Choose the Right Working Mode

Programmable multiple operations in a solar inverter typically refer to the ability to switch between different operating modes based on your needs or the prevailing conditions. Here’s how these modes typically work:

Grid-tie mode: In this mode, the solar inverter synchronizes its output with the utility grid. It feeds solar-generated electricity directly into the grid to power your home or business. If your solar system generates more electricity than you’re currently using, the excess power is exported to the grid, and you may receive credits or compensation for it, depending on local regulations.

Off-grid mode: In off-grid mode, the solar inverter operates independently of the utility grid. It converts solar energy into usable AC power for your home or business and charges a battery bank for energy storage. This mode is useful in areas where there’s no access to the grid or for providing backup power during grid outages.

Grid-tie with backup mode: This mode combines the features of both grid-tie and off-grid operations. The solar inverter prioritizes using solar energy to power your home or business. If the solar energy isn’t sufficient to meet your demand, it supplements it with electricity from the grid. Additionally, excess solar energy can be stored in a battery bank for backup power during grid outages or periods of low solar generation.
