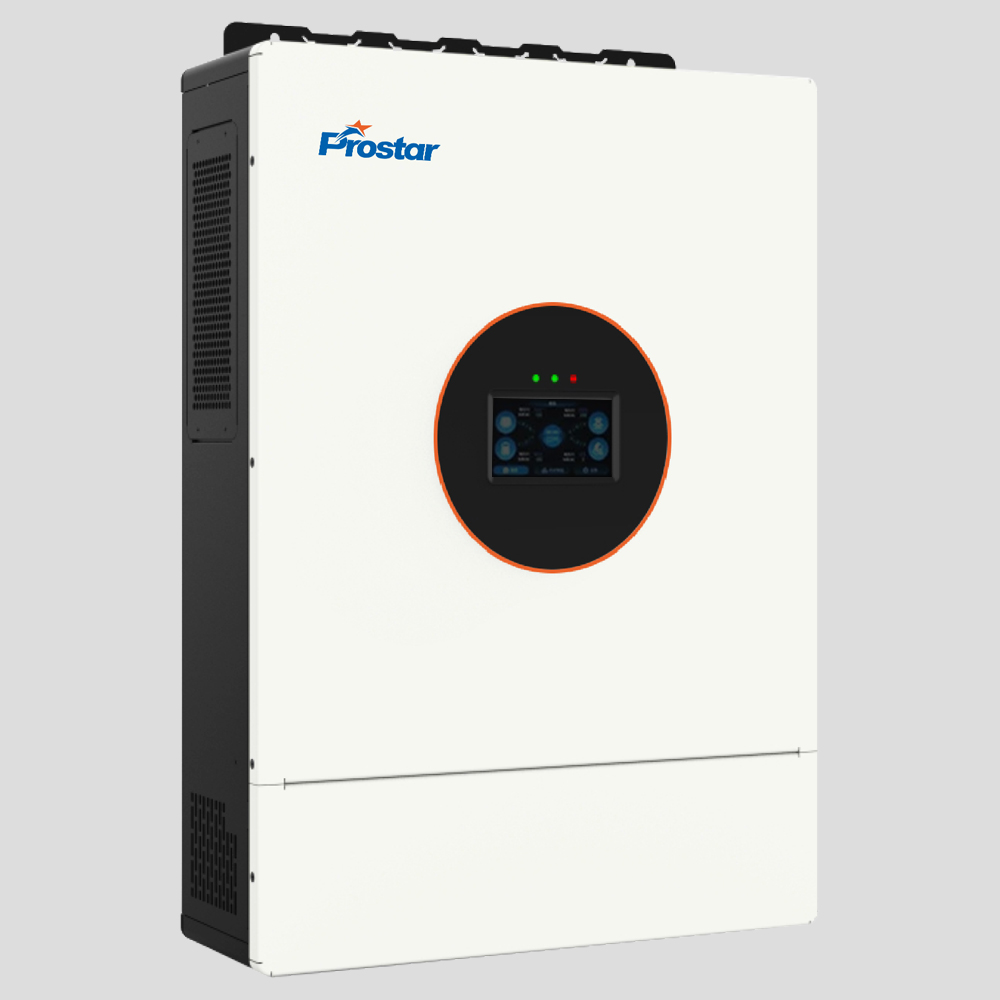

PLV10K-48PL-PLUS dual MPPT all in one split phase inverter 10kw

Prostar PLV10K-48PL-PLUS dual MPPT all in one split phase inverter 10kw is created for residential systems. It is also suitable for commercial and small industrial off-grid or backup power systems.

The all in one split phase inverter delivers a robust 10,000 watts of continuous AC power at 120/240V. It effortlessly handles heavy loads. This includes large appliances, HVAC systems, and power tools. It ensures uninterrupted power for your home or business.

It has a dual MPPT solar charger, split-phase AC output, and an all-in-one design. This all in one split phase inverter 10kW delivers flexibility. It also provides reliability and efficiency for modern energy storage solutions.

All in One Split Phase Inverter Features

Dual Independent MPPT Trackers

This inverter is equipped with two separate Maximum Power Point Trackers (MPPT). It maximizes solar harvest by optimizing the output from two distinct PV arrays independently. This is ideal for installations with panels facing different directions or experiencing varying shading conditions, significantly boosting overall energy yield.

All-in-One Integration

Simplify your system and reduce installation costs. The all in one split phase inverter combines a 10kW inverter, a 100A (adjustable) battery charger, and 200A MPPT solar charge controller. This integration eliminates the need for multiple separate components and complex wiring.

User-Friendly Monitoring & Control

Monitor system performance and adjust settings. Receive alerts via an intuitive LCD display. Alternatively, use optional Wi-Fi/Bluetooth modules for remote access via smartphone or web portal.

All-in-One Solution

Combines a solar inverter, a battery charger, and an AC transfer switch in a single, compact unit. This simplifies system design, saves space, and reduces installation costs.

Parallel Capability Ready

For systems requiring more than 10kW of power, multiple units can be connected in parallel to scale your energy output.

Comprehensive Protections

Features comprehensive protection against over-voltage, under-voltage, over-load, over-temperature, short-circuit, and islanding, ensuring the safety of your equipment and personnel.

Product Details

Production View

Split Phase Inverter Wiring Diagram

Supports both single-phase (120VAC) and split-phase (120/240VAC) output modes, making it compatible with a wide range of residential and commercial loads.

Parallel Operation

2 Units parallel in Single Phase

Unlock the next level of energy independence by connecting two 10KW inverters in parallel. This powerful configuration delivers a robust 20kW of continuous 120V/240V single-phase AC power. It provides the ultimate scalable solution for large homes, workshops, and agricultural operations. This is ideal for anyone with significant energy demands.

2 Units parallel in 3 Phase

Configure two 10KW inverters in a 3-phase setup. By doing this, you can generate robust 208V 3-phase AC power from a standard 48V battery bank. This provides the perfect bridge between solar energy and the demanding needs of commercial, agricultural, and industrial equipment.

3 Units parallel in 3 Phase

By configuring three 10KW inverters in a parallel 3-phase setup, you create a formidable 24kW 208V three-phase AC power system. This scalable configuration provides unmatched power. It offers reliability and performance for the largest off-grid and backup power applications in industrial, agricultural, and commercial settings.

Typical Applications

• Off-grid homes and cabins

• Hybrid solar ESS (energy storage systems)

• Rural electrification projects

• Backup power for critical loads

• Farms, workshops, and microgrids

• Commercial buildings and telecom systems
