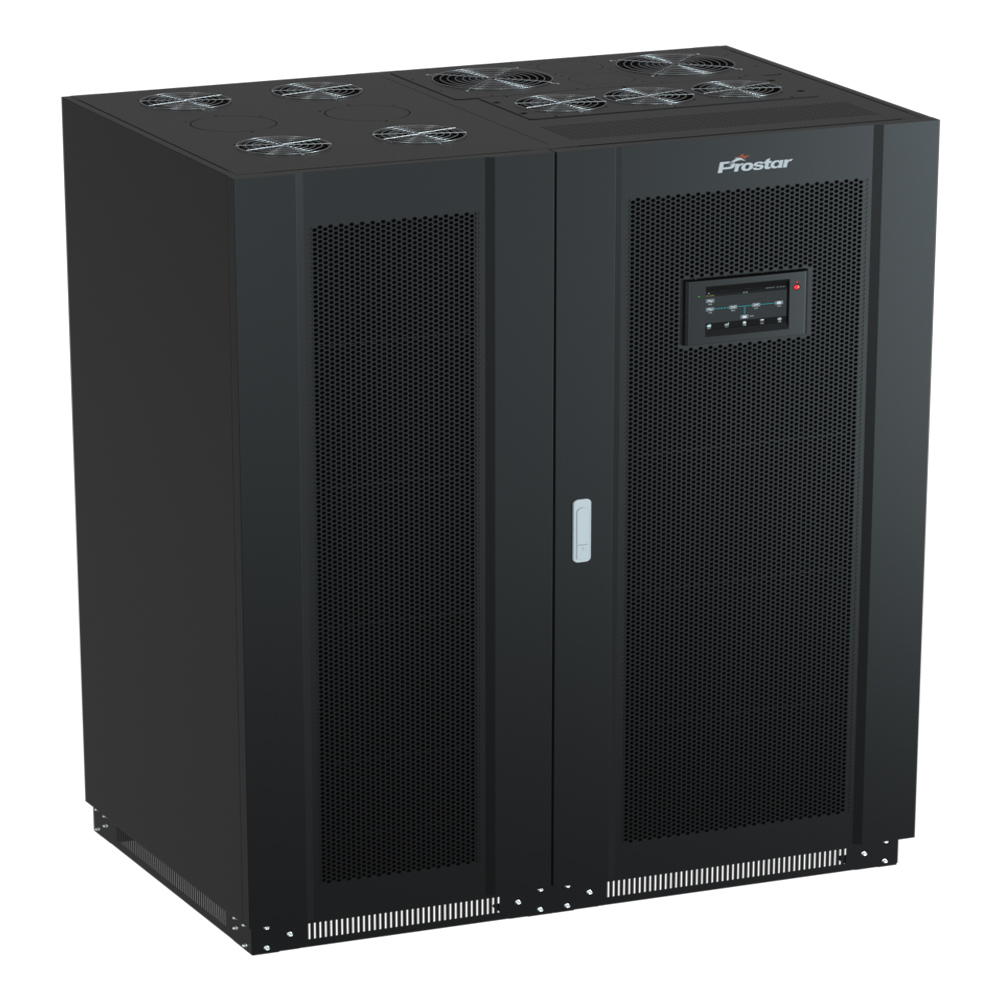

ET160K HV large capacity 480v 160kva ups for heavy industry

Heavy industrial environments — manufacturing plants, mining operations, oil & gas facilities, and large-scale data centers — operate under electrical conditions that would destroy a consumer-grade power backup in seconds. Voltage sags, harmonic distortion, frequency instability, and sustained overloads aren’t edge cases here.

A standard 160kVA UPS designed for office servers simply cannot handle these realities. What heavy industry needs is a purpose-built 480V three-phase UPS 160kVA system engineered for continuous operation under extreme electrical stress — with zero compromise on output quality.

Why Power Interruptions are Costing Heavy Industries

Modern industrial facilities rely on continuous power to keep production lines, automation systems, control equipment, and critical infrastructure operating without disruption.

However, many factories still face power-related challenges such as:

• Utility voltage fluctuations
• Unexpected power outages
• Harmonic distortion
• Generator instability
• Equipment shutdowns caused by transient disturbances
• Expensive production downtime

For heavy industries, even a few seconds of power interruption can result in:

• Production losses worth thousands of dollars
• Damaged equipment
• Process failures
• Safety risks
• Missed delivery schedules

This is why industrial operators are increasingly investing in a high-performance 160kVA UPS capable of delivering reliable, uninterrupted power under demanding operating conditions.

Standard UPS Systems are Often Not Designed for Heavy Industry

Many conventional UPS systems perform well in office environments but struggle when deployed in industrial settings.

Heavy industrial facilities typically demand:

• High-capacity power protection
• Long-term operational reliability
• Generator compatibility
• Scalability
• Excellent overload capability
• Low harmonic distortion
• Support for modern lithium battery systems

When a UPS cannot meet these requirements, facilities often experience reduced efficiency, frequent maintenance, and increased operational risks.

The solution is a true industrial-grade three phase 160kVA UPS designed specifically for demanding environments.

Technical Specifications 160kVA UPS for Heavy Industry

This industrial UPS 160kVA 480V specifications profile represents the gold standard for facilities where power quality isn’t optional — it’s operational.

How the ET160K HV 160kVA UPS Solves the Power Problems

Solving Voltage Instability and Power Quality Problems

Industrial equipment is highly sensitive to power quality issues.

Common problems include:

• Voltage sags
• Voltage surges
• Frequency variations
• Harmonic distortion
• Electrical noise

These disturbances can cause:

• PLC failures
• CNC machine shutdowns
• Motor control malfunctions
• Data corruption
• Production interruptions

The ET160K HV 160kva industrial ups system addresses these challenges through advanced double-conversion technology.

Benefits Include:

• Output voltage regulation of ±1%
• Pure sine wave output
• THDu <2% at linear loads
• THDu <5% at non-linear loads
• Stable frequency control during battery operation

As a result, sensitive industrial equipment receives clean, regulated power even during severe grid disturbances.

Maximizing Production Uptime During Utility Failures

Power outages remain one of the most expensive risks facing manufacturing operations.

A sudden blackout can:

• Stop production lines
• Interrupt automated processes
• Damage work-in-progress materials
• Create costly restart procedures

The ET160K HV 480v three phase ups provides seamless backup power with:

0ms Transfer Time

Because the inverter continuously powers the load, there is no switching delay when utility power fails.

Critical systems continue operating without interruption.

This makes the ET160K HV an excellent heavy industry backup power solution for facilities where downtime is unacceptable.

Strong Overload Capability

• 105–110% load: 60 minutes.
• 110–125% load: 10 minutes.
• 125–150% load: 1 minute.

This industrial backup ups 480v provides additional protection during temporary load surges.

High Input Power Quality

• Wide input voltage range: 384–576Vac.
• Input power factor ≥0.95.
• Ultra-low input harmonic distortion (THDi <3% at full load).

The 160kva ups for industrial reduces impact on generators and electrical distribution systems.

Reducing Energy Costs with High-Efficiency Operation

Energy efficiency is becoming a major consideration for industrial power infrastructure.

Traditional large-capacity UPS systems can consume significant energy over their operational life.

The ET160K HV addresses this challenge through:

• AC-AC efficiency >93%
• ECO mode efficiency >98%

For large industrial installations operating 24/7, these efficiency gains can translate into substantial reductions in electricity costs over the lifespan of the UPS.

This makes the ET160K HV a cost-effective large capacity online UPS solution for modern facilities.

Supporting Both Lead-Acid and Lithium Battery Technologies

Battery technology is rapidly evolving.

Many industrial facilities are transitioning from traditional VRLA batteries to advanced lithium energy storage systems.

The ET160K HV online UPS provides maximum flexibility by supporting:

VRLA Batteries

• Proven technology
• Lower initial investment
• Widely available

LiFePO4 Batteries

• Longer service life
• Faster charging
• Reduced maintenance
• Improved energy density

The UPS supports battery voltages from 336VDC to 384VDC and allows charging current adjustment based on battery specifications.

This flexibility protects long-term infrastructure investments.

Battery Failure → Cold Start & Comprehensive Protection

he ET160K HV supports DC cold start — the system can boot directly from batteries with zero mains input, using built-in current-limiting resistors to prevent inrush damage. Combined with battery reverse-connection detection, over-discharge protection, and over-charge protection, the risk of a silent battery failure is virtually eliminated.

Built for Future Expansion with Parallel Redundancy

Industrial power requirements often increase over time.

Rather than replacing existing infrastructure, facilities prefer scalable solutions.

The ET160K HV supports:

Up to 8 UPS Units in Parallel

Benefits include:

• Capacity expansion
• N+1 redundancy
• Improved system availability
• Higher fault tolerance

This scalability makes the system suitable for growing industrial operations and large infrastructure projects.

160kVA UPS Battery Backup Time: How Long Will It Actually Run?

This is the question every facility manager asks — and the answer depends on load, not just battery size.

For facilities requiring extended runtime, the ET160K HV supports custom battery configurations using either sealed lead-acid or lithium-ion battery sets. Lithium-ion options can double runtime at the same physical footprint and extend battery lifespan by up to 50% — a critical advantage for high capacity UPS 160kVA for data center and industrial co-location environments.

Why 160kVA UPS is the Right Choice for Heavy Industry

If your facility runs on 480V three-phase power and you cannot afford even a second of unplanned downtime, the ET160K HV is the 160kVA UPS for heavy industry that delivers. It combines transformer-based isolation, 10ms transfer time, 93% efficiency, and military-grade protection into a single system rated for continuous industrial operation.
