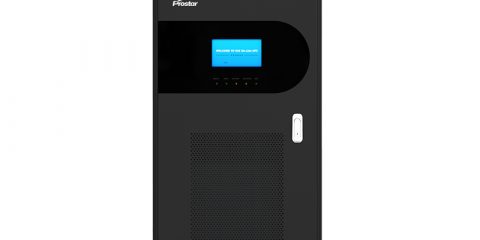

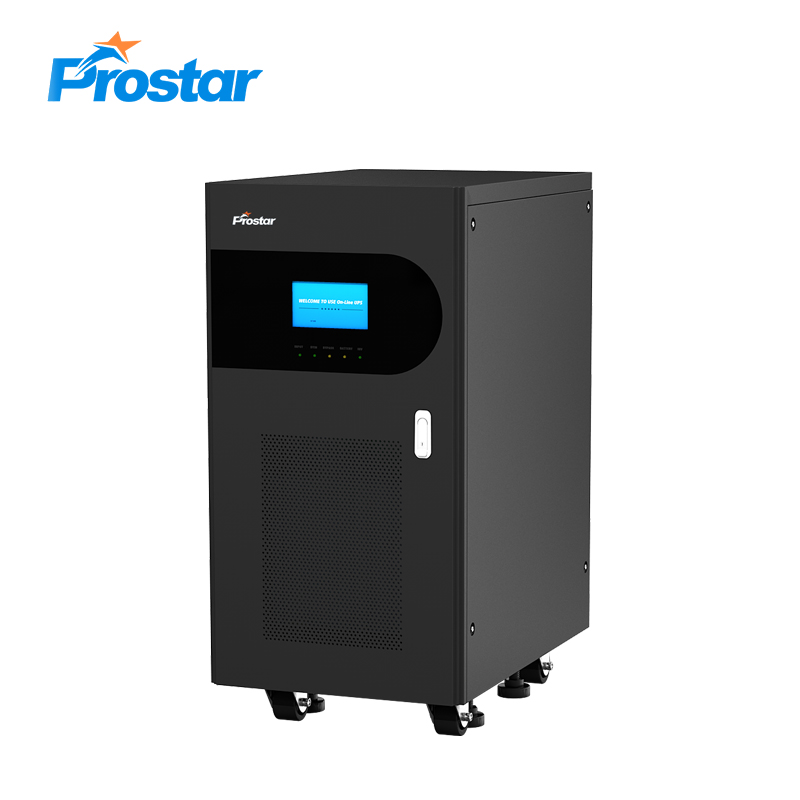

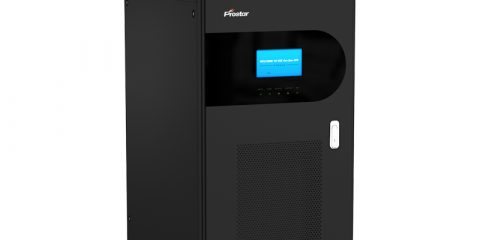

GT15K double conversion uninterrupted power supply ups 15kva 3 phase

Three Phase Online UPS |15KVA/12KW | 3 Phases 4 Wires | 380Vac/400Vac/415Vac | 384Vdc

Prostar GT15K double conversion uninterrupted power supply ups 15kva 3 phase offers technology that increases performance and reliability. Online technology fully isolates and protects against all power quality disturbances.

The upstream harmonics management allows a generator friendly installation and flexible configurations for even the most demanding designs.

GT15K double conversion uninterrupted power supply ups 15kva 3 phase power protection, solving today’s energy challenges while setting the standard for quality and innovation with fully integrated solutions for enterprise-wide networks, data centers, mission-critical systems, and industrial/manufacturing processes.

Uranus Series 10KVA – 500KVA 3 phase UPS power protection designed to meet a wide range of requirements from medium data centers to industrial and facilities applications.

3 phase ups

Prostar GT15K double conversion uninterrupted power supply ups 15kva 3 phase  is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments. It can be custom-designed for use in the harsh industrial environments.


residential ups systems

UPS Backup Systems Details

UPS Backup Systems

UPS LCD Display

Industrial Online UPS Internal Structure

UPS Free Monitoring anytime and anywhere

IGBT inverter technology produces output power with less than 2% total harmonic distortion (THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

three phase igbt online ups

The Articles You may Like

1DSP digital control technology

Core system uses the world’s most advanced all-digital DSP control technology, which can effectively guarantee the UPS’ core system accurate, and fast running.

Online UPS DSP Control Module

2) Advanced IGBT inverter technology

Combined high-reliable and high-efficiency IGBT inverter technology with high-frequency Pulse Width Modulation technology (PWM).
It could reduce noise and power loss, to ensure users can load in a variety of working situations and obtain high-quality voltage output and maximum cost-effectiveness, but also make input efficiency more than 95%.

InFineon IGBT Module

3) Pure-online double conversion technology
Reliable and stable, after filtered and regulated, the output sine wave from pure-online double conversion technology, not only has the atmospheric disturbance suppression filter, but also with the standard output isolation transformers, static bypass, maintenance bypass, make this product with higher ability to engage in short circuit current. And it can be applied to the worst working environment.

Online Double Conversion Technology

4) Perfect Protection
Perfectly system protection functions: It has AC over-voltage, under-voltage, output over-voltage, under-voltage, output overload, short circuit protection, inverter, rectifier over-temperature protection, voltage under-voltage warning, battery over charging protection and other protections in one to ensure the system to operate stably and reliably.

5) Powerful Redundant Parallel Connection Function
Durable and reliable design of industrial-type modular structure, combined with full digital DSP control technology core system, make this product not only can be used for N +1 / N + X redundancy and the ability of enlarge the capacity, but also permit different power and different times of the UPS could be in parallel. It greatly reduced the user’s pre-and post-purchasing costs, and increased capacity costs, but also expanded upper spaces of increasing capacity.

UPS Redundant Parallel Connection

6) Powerful communication system
The standard equipped with RS232 interface, dry contact relays, emergency switching device EPO input interface.

7) Low-power dissipation but high-efficiency
To achieve more than 98% of ultra-high efficiency under ECO economic model, which can effectively bring down the amount of electricity, and effective in accordance with the requirements of energy-saving target of the country.

8) Prediction warning system
LCD panel automatic detection function and timely warning in advance, with the boot self-diagnosis function. It could avoid the hidden danger in time due to UPS’ failure, which caused risks. Also it could automatically alarm by setting the battery discharge to standby time is less than a set value.

9) Humanized panel display
Humanized panel settings, the users can set system parameters, date, output voltage, battery capacity, alarm function, light-load shutdown, system boot time, MODEM settings, such as orders, also it can be up to 120 abnormal failure information for users to query.

10) Super-strong environment adaptability
This product has superior environmental adaptability, wide AC input range, greatly reduces the frequency of battery using, and effectively extends the battery life.

11) Powerful Overload Ability
Using the pure-online double conversion technology, with the output isolation transformers, static bypass, and maintenance bypass.
Inverter Overload Ability reached 110% / 125% / 150% overloading time can last for 300min/10min/1min.
Bypass Overload Ability reached 150% / 170% / 250% overloading time can last for 60min/10min/1min.

Model GT15K
Capacity 15KVA/12KW
UPS Efficiency >95%
Noise 48dB~54dB(Distance 1 Meter)
Dimension(WxDxH mm) 485x695x1000
Weight(Kgs) 185
Voltage 3 Phases 4 Wires, 380Vac/400Vac/415Vac ± 25%
Frequency 50Hz/60Hz±5% (Automaticly)
Power Factor ≥0.95
Voltage 3 Phases 4 Wires, 380Vac/400Vac/415Vac ± 1%
Frequency 50Hz/60Hz±0.05%(By Battery)
Harmonic Distortion Linear load<3%, Non-linear load<5%
Imbalance Voltage Balance load≤1%, Imbalance load≤3%
Phase Shif Angle Balance load≤1°, Imbalance load≤2°
Transient Response Output at 0~50%~100% ≤5%, response ≤ 10ms
Overload Capacity 110%≥300Min, 125%≥10Min, 150%≥1Min
Crest Factor 3:1
Wave Form Pure sine wave
Transfer Time 0ms
Type Support VRLA Battery
D.C. Voltage 384Vdc
Max. Charging Current 0.2AxC10
Charging Time(Standard) 12hours
Protection Input over-voltage, under-voltage; output overload, shortcircuit; Inverter over-temperature; Battery under-voltage,over-voltage
IP Protection IP20
Parallel Mode N+1,N+X,can be in parallel with differenct power capacity
Software Interface Windows9x,2000,NT,ME,XP,Linux,Novell,Macosx,NT4.0
Meantime Between Failures 300,000Hours
Operating Temperature 0℃ to 40℃
Humidity 0~95% (non-condensing)
Altitude <1000m (with increase of 100m,it will reduce output of 1%) max. 4000m
Storage Temperature -15℃ to 50℃
Communication Interface RS232/RS485
Remote Signaling Dry contact (battery low,battery discharging,bapass/fault),EPO
Remote Control EPO and bypass
SNMP Power managemetn from SNMP manager and web browser
Optional Dustproof & dampproof, Isolating inverter transformer, lightning surge absorption, static switches, manual maintainence switch
