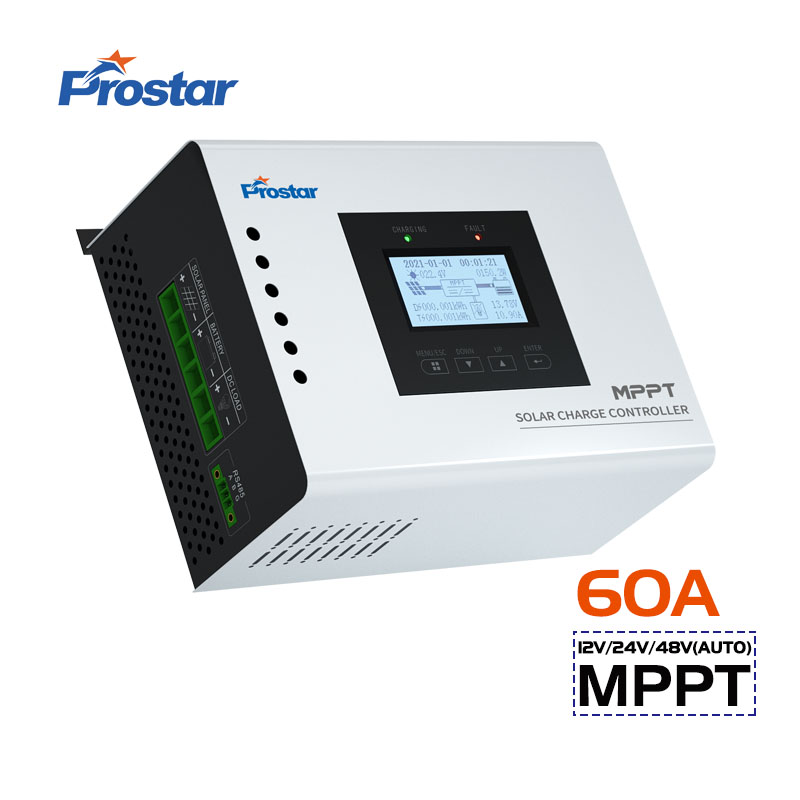

MCR6048 intelligent 60a mppt solar charge controller 12v 24v 48v
MPPT solar charge controller | 60A | 12V/24V/48V AUTO | Max PV INPUT: 170VDC
Prostar MCR6048 intelligent 60a mppt solar charge controller 12v 24v 48v tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries.
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 97%. Touch LCD screen and LED indicators for displaying system operation information, customizable parameters, and error codes.
It protects the battery from becoming over-charged by the solar modules and over-discharged by the loads. By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage.
It is widely used in many fields such as RVs, communication base stations, household systems and field monitoring.
60 AMP MPPT Solar Charge Controller Features
- Compatible for PV systems in 12V / 24V / 48V Auto.
- MPPT tracking efficiency up to 99%.
- Touch LCD screen and LED indicators for operation information, customizable parameters, and error codes.
- Three-stage charging optimizes battery performance.
- Deep Cycle Sealed, Gel, Flooded, and Lithium battery option ready.
- Automatic battery voltage detection.
- User programmable for Absorption voltage/Floating voltage/Low voltage disconnect.
- Ability to output in parallel to power DC loads.
- Over-temperature protection.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS485 communication port with standard Modbus protocol.
Solar Charge Controller Information
MPPT Solar Charge Controller Details
Setting UP Off-grid Solar System
The Articles You may Like
| Model | MCR6048 | |
| MPPT Efficiency | > 97% | |
| System Voltage | 12V/24V/48V(Auto) | |
| Dimension(WxDxH mm) | 200x168x94 | |
| Net Weight | 1.8 | |
| INPUT | ||
| Max. PV Input Voltage | 170VDC | |
| MPPT Operating Voltage Range | 12V | 18VDC – 150VDC |
| 24V | 34VDC – 150VDC | |
| 48V | 65VDC – 150VDC | |
| Low Voltage Protection | 12V | 16VDC |
| 24V | 30VDC | |
| 48V | 60VDC | |
| High-voltage Protection | 170VDC | |
| PV Rated Input Power | 12V | 855W |
| 24V | 1710W | |
| 48V | 3420W | |
| DC LOAD OUTPUT | ||
| Load Voltage | Same as battery voltage | |
| Load Current | 20A | |
| Load Control Mode | ON/OFF, PV voltage control, time control, PV + time control | |
| CHARGE | ||
| Battery Type | Sealed Lead Acid, Gel, Flooded, Lithium-ion, User-defined | |
| Charging Mode | MPPT (Maximum Power Point Tracking) | |
| Charging Current | 60A | |
| Charging Method | Three-stage: CC (Constant current) – CV (Constant voltage) – CF (Float charge) | |
| Temperature compensation | -3mV/℃/2V (Default) | |
| Float Charging Voltage (Lead Acid Default) |
12V | 13.8VDC (Settable) |
| 24V | 27.6VDC (Settable) | |
| 48V | 55.2VDC (Settable) | |
| Boost Charging Voltage (Lead Acid Default) |
12V | 14.5VDC (Settable) |
| 24V | 29.0VDC (Settable) | |
| 48V | 58.0VDC (Settable) | |
| SYSTEM | ||
| Protection Function | Input low/over voltage, input/output polarity reverse connection, short circuit, over temperature, battery shedding etc. | |
| Display | Touch LCD + LED | |
| Cooling method | Forced Air Cooling | |
| Standby power | < 2W | |
| Communication | RS485 | |
| ENVIRONMENT | ||
| Relative Humidity | < 90% (Non-condensing) | |
| Altitude | < 3000m | |
| Operating Temperature | -20℃~+40℃ | |
| Storage Temperature | -40℃~+75℃ | |
| Protection Level | IP21 | |
