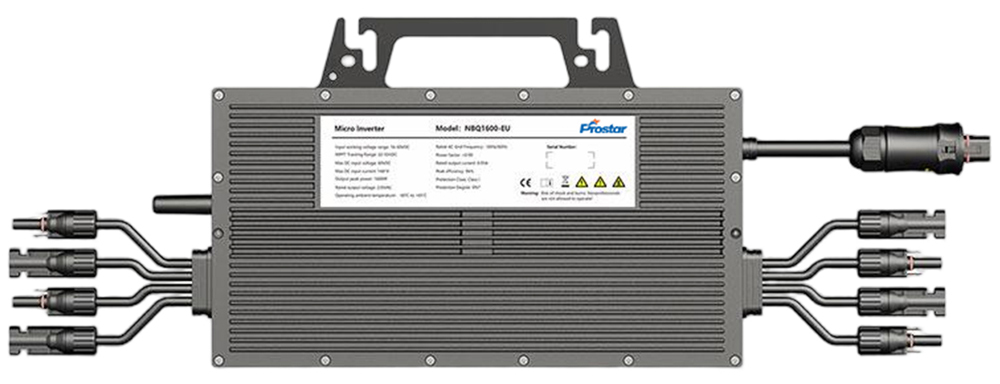

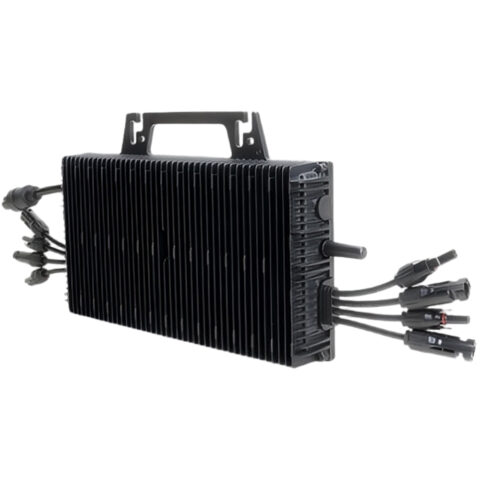

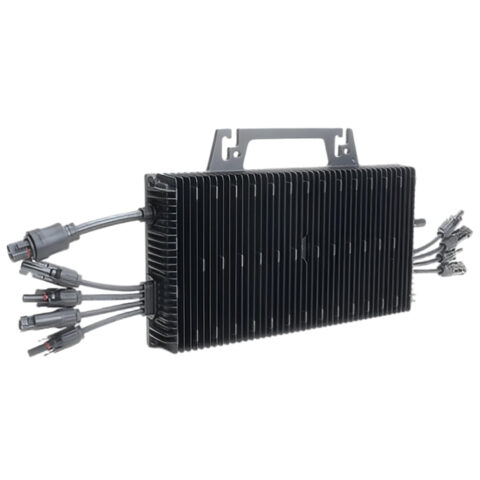

NBQ1600-EU best pure sine wave 4 in 1 micro inverter 1600w
Micro Inverter | 1600W | 220V/230V 50Hz or 60Hz | Start-up Voltage: 22V | 4 MPPT | 14A per MPPT
Prostar NBQ1600-EU best pure sine wave 4 in 1 micro inverter 1600w produces stable, low-noise AC. It is suitable for induction motors and HVAC systems. It is also suitable for audio/AV equipment, medical devices, and electronics with active power supplies.
The micro inverter delivers 1600 W of continuous AC output with a true pure sine wave, optimized for modern PV modules and household loads.
Micro Inverter Key Features
Input compatibility
Wide DC input range to match common PV module voltages and tolerate partial shading/variation
4-in-1 Design
Four independent MPPT inputs allow connection of up to four PV modules (or strings), optimizing energy harvest per module and minimizing mismatch losses.
Grid compliance features
There are several features to ensure compliance with stringent EU interconnection standards. They include anti-islanding. Reactive power support is optional and configurable. Frequency and voltage ride-through settings are provided. Automatic disconnection occurs under unsafe grid conditions.
Low THD
Total harmonic distortion (THD) under 5% ensures safe operation of sensitive electronics and compliance with grid power quality requirements.
Power balancing
Built-in protections and soft-start ensure inrush currents are managed during connection. Multiple units can operate in parallel. This operation occurs without upstream harmonics issues.
Connection Diagram
Technical Highlights
- Maximum AC Power: 1600 W
- Nominal AC Output Voltage: 220/230 VAC (single-phase)
- AC Output Frequency: 50/60 Hz (region dependent)
- Maximum Efficiency: ≥96%
- Max. PV Input Power: 275W-530W(4 Pieces)
- MPPT Inputs: 4 independent channels
- MPPT Voltage Range: ~22–55 V
- Max DC Input Current per MPPT: 14A
- Ingress Protection: IP67
- Operating Temperature Range: approximately -40 °C to +60 °C
- Communication: Built-in Wi‑Fi Kit
- Dimensions: 342×225.4×50 mm
Use Cases and Advantages
- Residential rooftop systems: Maximizes production on complex roofs with shading, dormers, or mixed orientations.
- Commercial retrofits: Simplifies upgrades by allowing module-level replacement without reworking central inverters.
- RVs and small buildings: Lightweight, compact form factor suitable for limited-space installations.
Installation and Scalability
- Plug-and-play installation: AC plug or hardwired AC output options, standardized DC connectors for PV modules, and simple mounting bracket for rapid rooftop attachment.
- Scalable design: Easily expand systems by adding more NBQ1600-EU units—ideal for staged installations or retrofits where roof space and module orientations vary.
- Reduced BOS costs: Integrated MPPT and safety features reduce external combiner boxes, string-level wiring, and specialist labor.
Frequently Asked Questions (FAQ)
- Q: What is the NBQ1600-EU?
A: A single‑phase, 1600 W micro inverter that converts DC from one PV module to grid‑tied AC with a pure sine wave, integrating MPPT, safety protections, and communications. - Q: What AC output does it provide?
A: Nominal 230 VAC, single‑phase at 50 Hz (EU standard). Peak continuous output 1600W. - Q: Is the output waveform pure sine?
A: Yes — low THD (<5%) suitable for sensitive electronics. - Q: What DC input range does it accept?
A: Compatible with common PV module voltages; consult the product datasheet for exact minimum and maximum DC input specifications. - Q: Is it weatherproof for rooftop use?
A: Yes — designed for outdoor installation with an IP‑rated enclosure – IP67.
The Articles You may Like
- The Indispensable Role of Online UPS for Industrial Use
- Stand-alone power system – Wikipedia
- Enhancing Performance in Fast Charging Lithium-Ion Battery
- How 3 Phase Lithium UPS System Enhances Backup Power Performance
- How Many Batteries do I Need for Hybrid Inverter 10KW?
- The Essential Role of Industrial Grade UPS Systems in Modern Manufacturing
- Industrial ups power supply vs normal UPS
| Model | NBQ1600-EU |
| PV Input Data(DC) | |
| Max. PV Input Power | 275W-530W(4 Pieces) |
| No. of DC Input Connectors | MC4 x 4 |
| Max. PV Input Voltage | 60V |
| Start-up Voltage | 22V |
| PV Operationg Voltage Range | 16-60V |
| MPPT Tracking Voltage Range | 22-55V |
| Max. Input Short-Circuit Current | 25A x 4 |
| Max. Operating PV Input Current | 14A x 4 |
| AC Output Side | |
| Rated AC Output Power | 1600W |
| Max.AC Output Current | 7.27 / 6.95A |
| Rated Output Voltage | 220V/230V |
| Output Voltage Range | 190-270V |
| Grid Connection Form | L/N/PE |
| Rated Output Grid Frequency | 50Hz / 60Hz |
| Output Frequency Range | 47.5-51.5Hz / 57.5-62.5Hz |
| Power Factor Adjustment Range | 0.9 leading to 0.9 lagging |
| Total Current Harmonic Distortion THDi | <5% |
| Efficiency | |
| Max. Efficiency | 96.00% |
| MPPT Efficiency | >99.50% |
| General Data | |
| Operating Temperature Range (°C) | -40 to +65℃, >45℃ Derating |
| Permissible Ambient Humidity | 0~100% |
| Permissible Altitude | 2000m |
| Noise | ≤ 25dB |
| Type Of Cooling | natural cooling |
| Ingress Protection(IP) Rating | IP67 |
| Protective Class | Class I |
| Communication | Wi-Fi |
| Cabinet Size（L*W*Hmm) | 342×225.4×50 mm |
| Weight (kg) | 5.2 |
| Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC 62321, IEC/EN 61000-6-2/4, IEC/EN 61000-3-2/3, IEC/EN 62920 |
