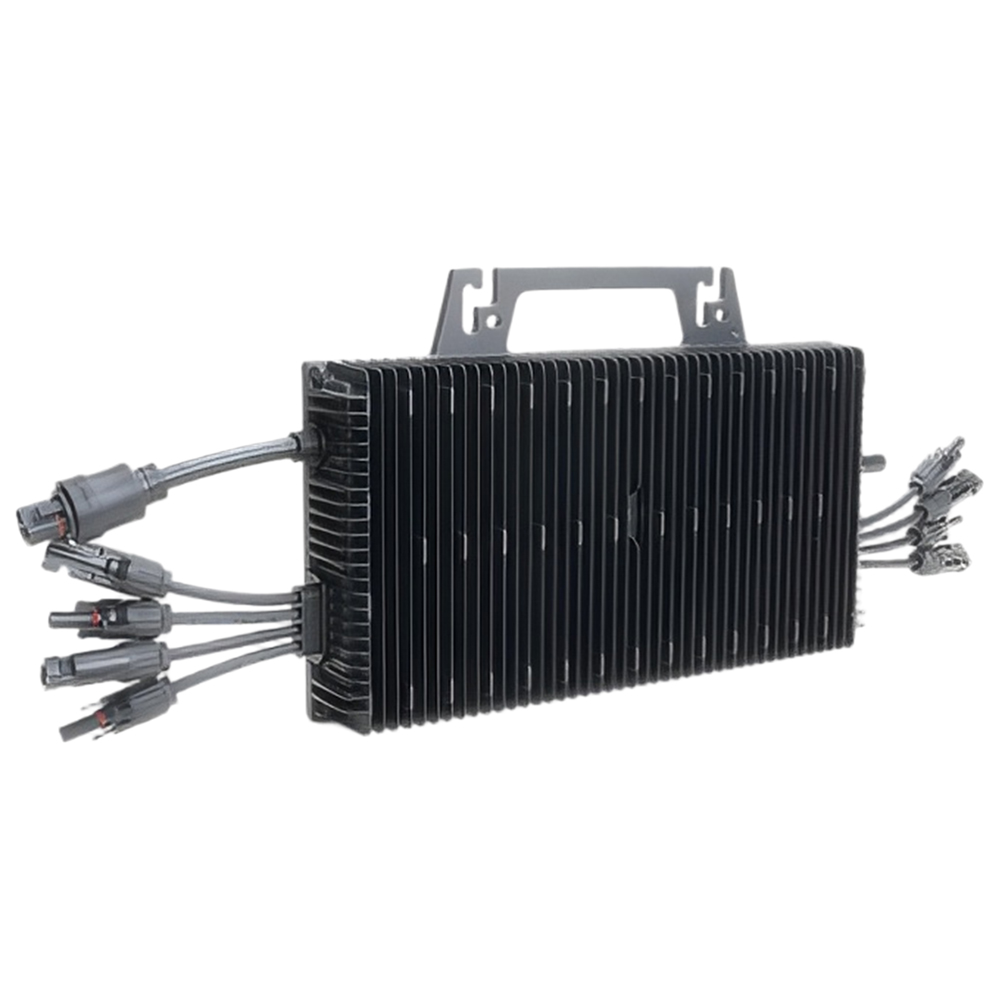

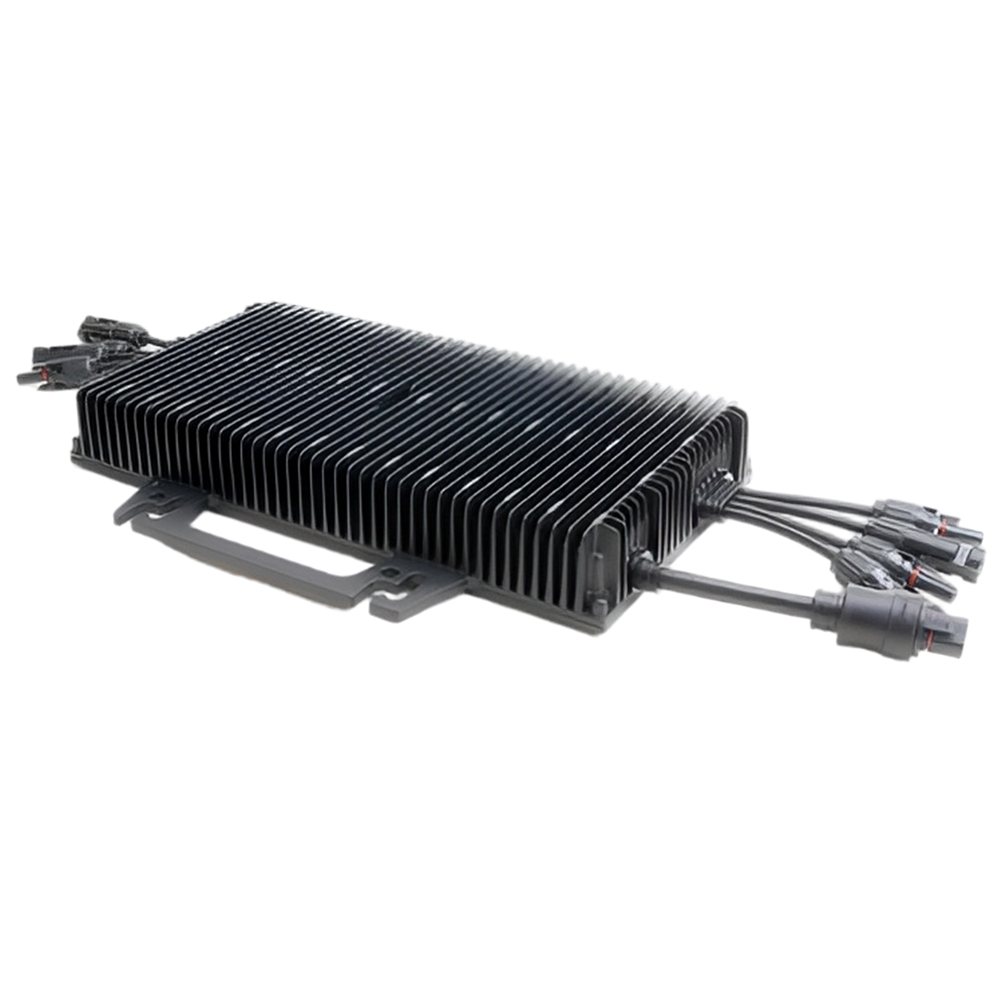

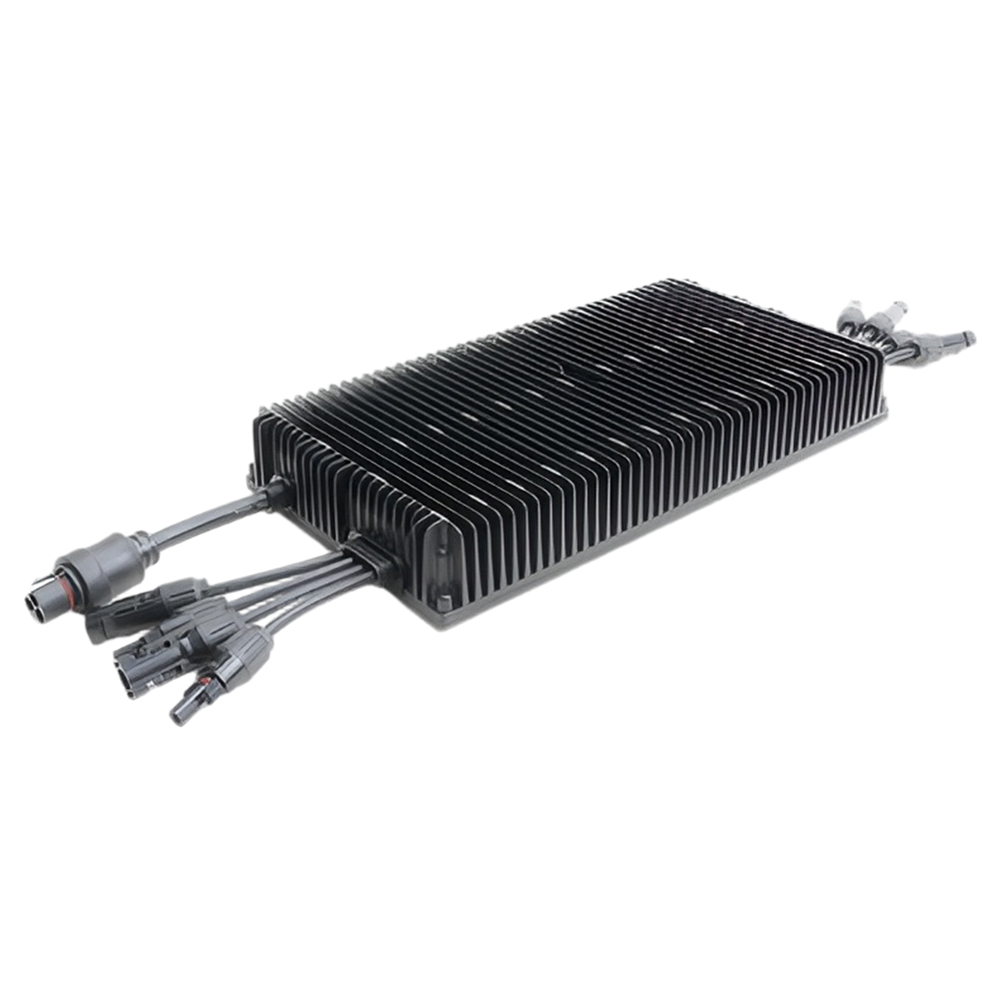

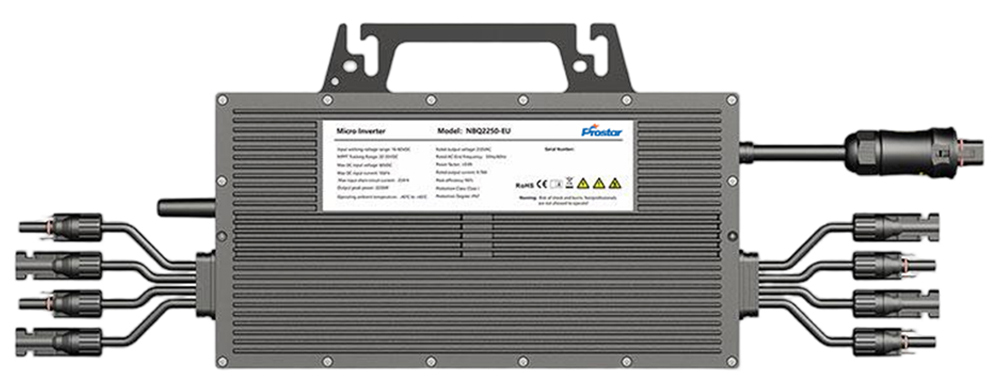

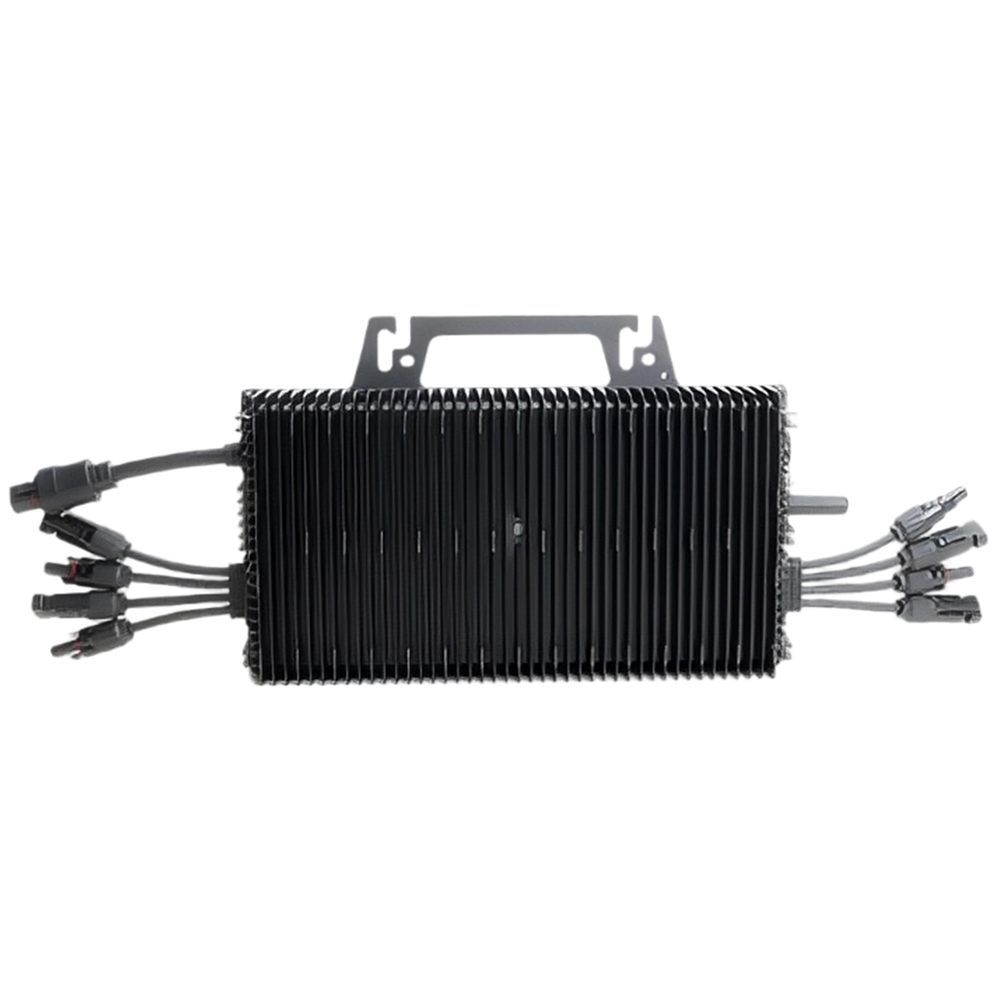

NBQ2250-EU 4 in 1 pure sine wave dc to ac inverter micro 2250w
Micro Inverter | 2250W | 220V/230V 50Hz or 60Hz | Start-up Voltage: 22V | 4 MPPT | 18A per MPPT
Prostar NBQ2250-EU 4 in 1 pure sine wave dc to ac inverter micro 2250w designed for residential and small commercial solar PV systems. It converts DC power from solar modules into a stable pure sine wave AC output. It integrates four independent MPPT channels into a single compact unit. This setup delivers a combined maximum AC output of 2250 W.
Inverter Micro 2250W Key Features
Pure Sine Wave Output
Clean AC waveform compatible with residential grid standards and sensitive electronics.
4-in-1 Design
Four independent MPPT inputs allow connection of up to four PV modules (or strings), optimizing energy harvest per module and minimizing mismatch losses.
Grid-Tied Operation
Synchronizes to the utility grid frequency and voltage with fast response and anti-islanding protection.
Compact & Robust
IP67 rated enclosure for outdoor installation, corrosion-resistant materials, and a compact footprint for easy mounting near PV arrays.
Smart Monitoring
Built-in WiFi communication and web/cloud monitoring support for real-time production data, historical logs, and remote diagnostics.

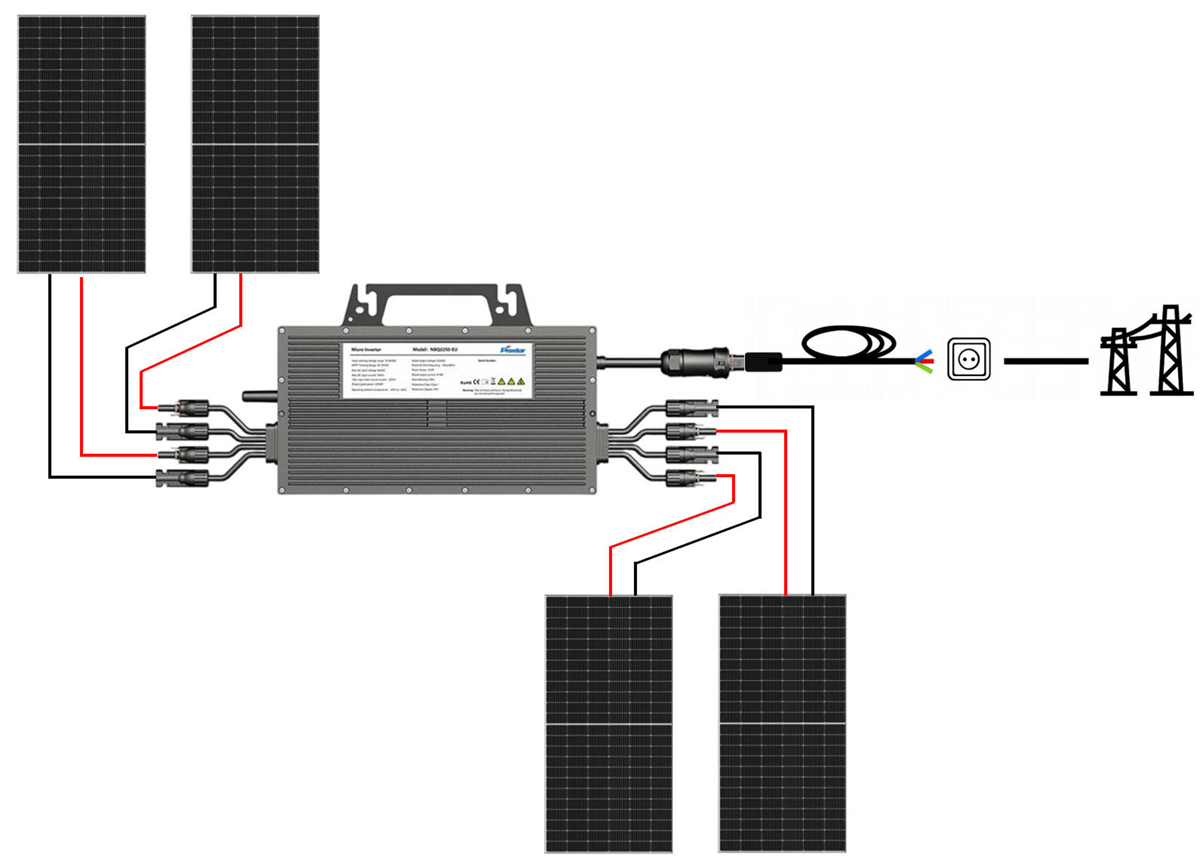

Connection Diagram
Technical Highlights
- Maximum AC Power: 2250 W
- Nominal AC Output Voltage: 220/230 VAC (single-phase)
- AC Output Frequency: 50/60 Hz (region dependent)
- Maximum Efficiency: ≥96%
- MPPT Inputs: 4 independent channels
- MPPT Voltage Range: ~22–55 V
- Max DC Input Current per MPPT: 18A
- Ingress Protection: IP67
- Operating Temperature Range: approximately -40 °C to +60 °C
- Communication Interfaces: Wi‑Fi
- Dimensions: 342×225.4×50 mm
Typical Applications
- Residential rooftop PV systems
- Small commercial or light-industrial installations
- Retrofits where module-level optimization is needed without full microinverter deployment
- Systems requiring easy, modular expansion
The Articles You may Like
- The Indispensable Role of Online UPS for Industrial Use
- Stand-alone power system – Wikipedia
- What is the CT Sensor in Solar Inverter On Off Grid
- How Long Should the Durable Online UPS Systems Last
- Safeguard Your Electronics with a UPS Backup Power Supply for Home
- The Essential Role of Industrial UPS for Factories
- Industrial ups power supply vs normal UPS
| Model | NBQ2250-EU |
| PV Input Data(DC) | |
| Max. PV Input Power | 275W-630W(4 Pieces) |
| No. of DC Input Connectors | MC4 x 4 |
| Max. PV Input Voltage | 60V |
| Start-up Voltage | 22V |
| PV Operationg Voltage Range | 16-60V |
| MPPT Tracking Voltage Range | 22-55V |
| Max. Input Short-Circuit Current | 25A x 4 |
| Max. Operating PV Input Current | 18A x 4 |
| AC Output Side | |
| Rated AC Output Power | 2250W |
| Max.AC Output Current | 10.23 / 9.78A |
| Rated Output Voltage | 220V/230V |
| Output Voltage Range | 190-270V |
| Grid Connection Form | L/N/PE |
| Rated Output Grid Frequency | 50Hz / 60Hz |
| Output Frequency Range | 47.5-51.5Hz / 57.5-62.5Hz |
| Power Factor Adjustment Range | 0.9 leading to 0.9 lagging |
| Total Current Harmonic Distortion THDi | <5% |
| Efficiency | |
| Max. Efficiency | 96.00% |
| MPPT Efficiency | >99.50% |
| General Data | |
| Operating Temperature Range (°C) | -40 to +65℃, >45℃ Derating |
| Permissible Ambient Humidity | 0~100% |
| Permissible Altitude | 2000m |
| Noise | ≤ 25dB |
| Type Of Cooling | natural cooling |
| Ingress Protection(IP) Rating | IP67 |
| Protective Class | Class I |
| Communication | Wi-Fi |
| Cabinet Size（L*W*Hmm) | 342×225.4×50 mm |
| Weight (kg) | 5.2 |
