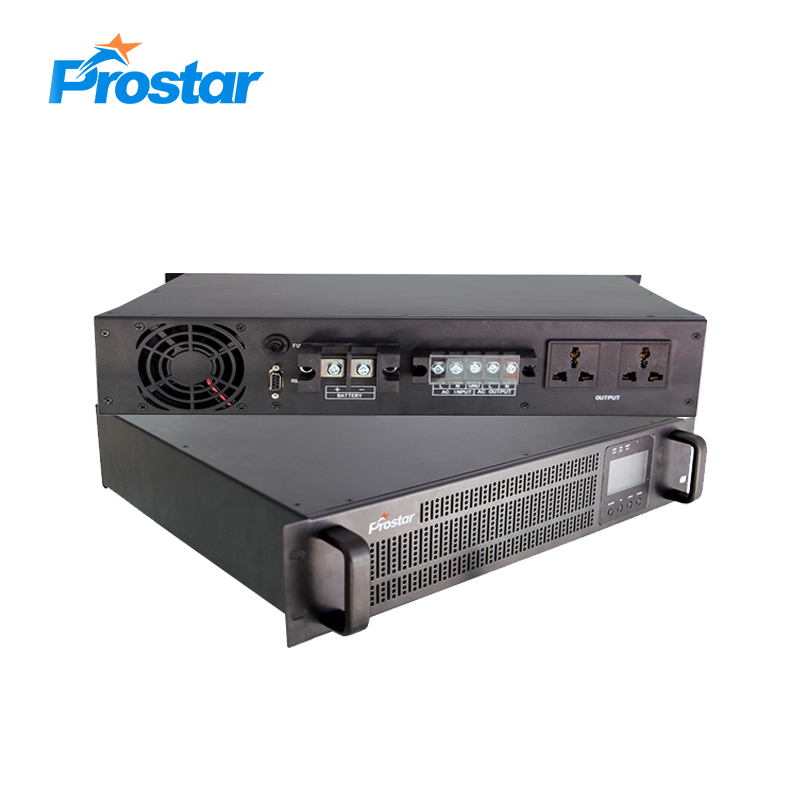

PIR1.5K 2u rack mount 1500w pure sine wave inverter 24v to 220v

Power Inverter | 1500W | 2U | 24VDC | 120Vac or 230Vac | Single Phase | Pure Sine Wave

SKU: PIR1.5K Category:

Prostar PIR1.5K 2u rack mount 1500w pure sine wave inverter 24v to 220v ensures a stable power supply to critical telecom equipment, even in challenging environments. This essential component ensures a stable and uninterrupted power supply to critical telecommunication equipment, even in remote or off-grid locations.

Designed rack mount type, this can save valuable floor space in data centers and other facilities with limited space availability.

The rack mount 1500w pure sine wave inverter provides scalability options, allowing telecom operators to expand their systems as needed. It also supports a wide range of input voltages and frequency configurations, ensuring compatibility with different telecom setups.

Prostar Rack-mount Power Inverter



1500W Pure Sine Wave Inverter Features

1.Compact Design

Rack mount power inverter can fit into standard equipment racks, allowing for efficient use of space in crowded environments.

2.Pure Sine Wave Output

It produces a smooth and consistent AC (alternating current) output, similar to what you would find in a standard household electrical outlet.

3.Robust and Reliable Performance

The telecom power inverter is built with high-quality isolation transformer and features a rugged design to withstand harsh operating conditions.

4.Wide input voltage range (110V-300V)

It is allowing to work with different power sources or handle fluctuating voltage conditions. This wide input voltage range makes the inverter versatile and adaptable for different applications and power supply scenarios.

5. Boost and buck AVR for voltage stabilization

It helps to regulate and maintain a stable output voltage despite fluctuations or variations in the input voltage. This is particularly useful in situations where the input power source experiences voltage sags or dips.

6.LCD panel for comprehensive display

Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes. Supports multiple advanced user setup and operating preferences.

7. Advanced Protection Mechanisms

These devices typically incorporate protective features such as overload protection, over-temperature protection, and short-circuit protection, ensuring safe and reliable operation.

8.Remote Monitoring and Control

It offers remote monitoring and control capabilities, allowing users to monitor performance, adjust settings, and receive notifications remotely.

Telecom Inverter 1500W Details

Rack-mount power inverter diagram

Rack-mount power inverter details

Rack-mount power inverter charging adjustable

Rack-mount power inverter LCD display

Rack-mount power inverter display icons

Rack-mount power inverter rear detail

Error code reference

Code Description
E01 Power amplifier over current
E02 Output short circuit protection
E03 Overload protection
E04 Over temperature protection
E05 Battery over voltage protection
E06 Low battery voltage protection
E07 Phase reverse protection
E08 Low output voltage protection
E09 Date of manufacture does not match
E10 Battery power down, voltage drop



The Articles You may Like

    Request Product Price


    * Required

    Model PIR1.5K
    Rated Power 1500W
    INPUT
    Voltage Range 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
    Frequency Range 50/60 Hz±2.5Hz Auto
    OUTPUT
    AC Voltage Regulation 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%（AC Mode±10%）
    Frequency 50HZ/60HZ±0.5HZ Auto（AC Mode±2.5HZ）
    Surge Power 4500W
    Battery Efficiency 81%
    AC Efficiency 93%
    Transfer Time 8ms default, 4ms optional
    Waveform Pure Sinewave
    BATTERY
    Battery Voltage 24VDC
    Floating Charge Voltage 27.2VDC
    Overcharge Protection 30.0VDC
    AC Charge Current 0-20A Adjustable (20A default)
    PROTECTION
    Battery Reversal Optional
    Output Short Circuit AC mode:Jump fuse, Inverter mode: Shut down
    Overload Full load 100%, inverter alarm. Overload 120%, inverter shut down output in 10s. Once the load back to normal, inverter recovers output.
    High AC Voltage Turn off AC, turn to inverter mode automatically
    Low DC Voltage Inverter shuts down automatically, once the AC recover, inverter turns on and charges automatically
    Over Temperature Power Off
    ENVIRONMENT
    Humidity 15～93%（No condensation）
    Temperature -10℃ ~ 50℃
    Altitude ≤3000m
    Communication RS232(default),USB, RS485, SNMP (Optional)
    MECHANICAL SPECIFICATIONS
    Dimension, DxWxH (mm) 483×390×88 [2U]
    Net Weight (Kgs/PC) 13.90
