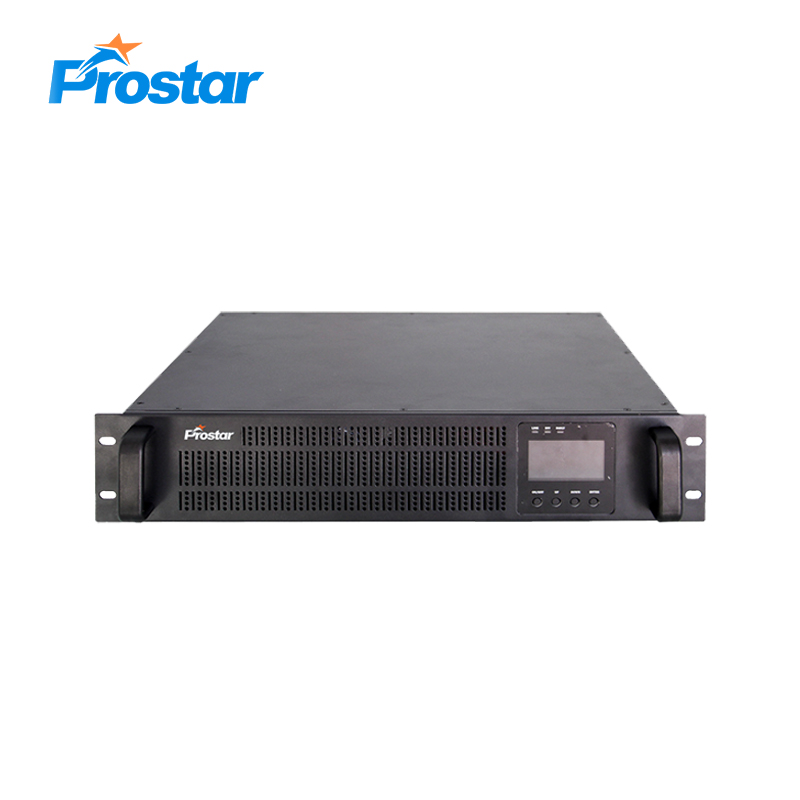

PIR0.3K 2U pure sine wave rack mount power inverter 300w 12v 220v
Power Inverter | 300W | 2U | 12VDC | 120Vac or 230Vac | Single Phase | Pure Sine Wave
PIR0.3K 2U pure sine wave rack mount power inverter 300w 12v 220v offers effective and economical data protection during power failure, dangerous power surges and voltage fluctuations.
Designed rack mount type, this compact and space-saving solution is commonly in data centers, telecommunications facilities, and other industrial applications.
2U pure sine wave rack mount power inverter 300w use automatic voltage regulation (AVR) to correct abnormal voltages without switching to battery.
Power Inverter 300W Features
1.Compact Design
Rack mount power inverter can fit into standard equipment racks, allowing for efficient use of space in crowded environments.
2.High Power Capacity
The power inverter is available in various power capacities, ranging from a few hundred watts to several kilowatts, catering to diverse power requirements.

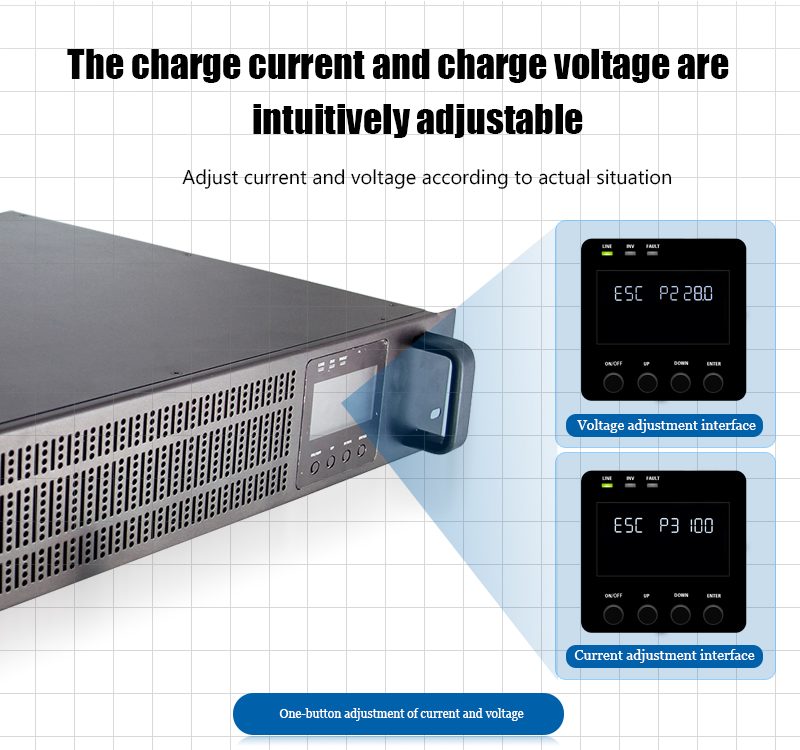

3.Intelligent Charger
Built-in smart charger, with TOP charge type (charging type of high current at the initial, and balanced type and floating type alternating charging), shorten the battery charging time, extend the battery life, and it is suit to the areas of high rate power cut. Also the end users can set charging voltage and charging current by press button.
4.Wide input voltage range (110V-300V)
It is allowing to work with different power sources or handle fluctuating voltage conditions. This wide input voltage range makes the inverter versatile and adaptable for different applications and power supply scenarios.
5. Boost and buck AVR for voltage stabilization
It helps to regulate and maintain a stable output voltage despite fluctuations or variations in the input voltage. This is particularly useful in situations where the input power source experiences voltage sags or dips.

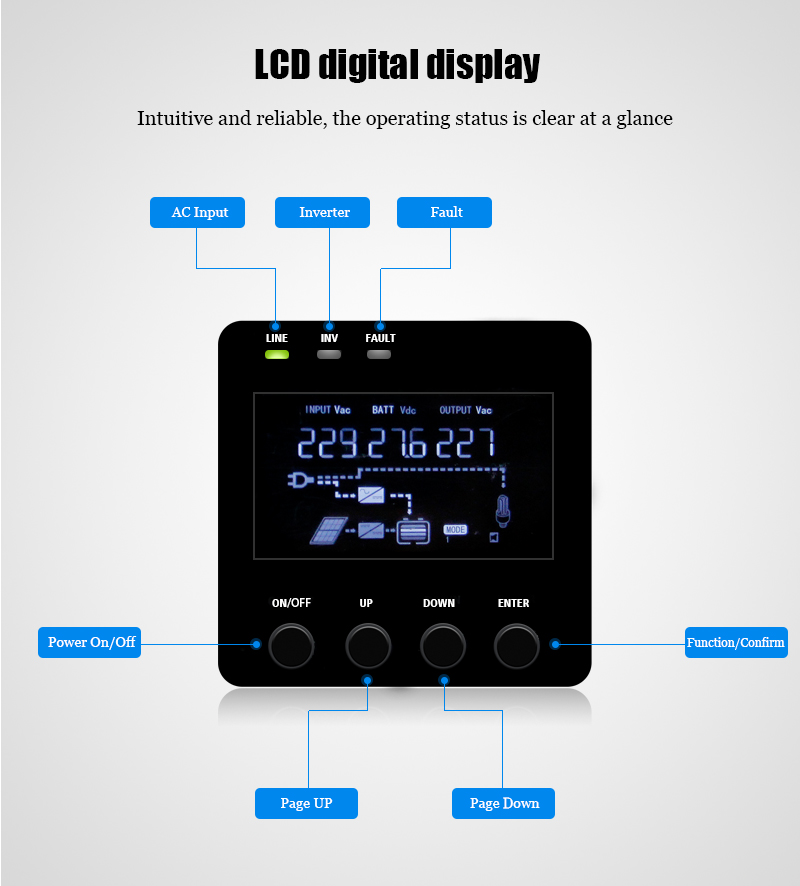

6.LCD panel for comprehensive display
Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes. Supports multiple advanced user setup and operating preferences.
7. Advanced Protection Mechanisms
These devices typically incorporate protective features such as overload protection, over-temperature protection, and short-circuit protection, ensuring safe and reliable operation.
8.Remote Monitoring and Control
It offers remote monitoring and control capabilities, allowing users to monitor performance, adjust settings, and receive notifications remotely.

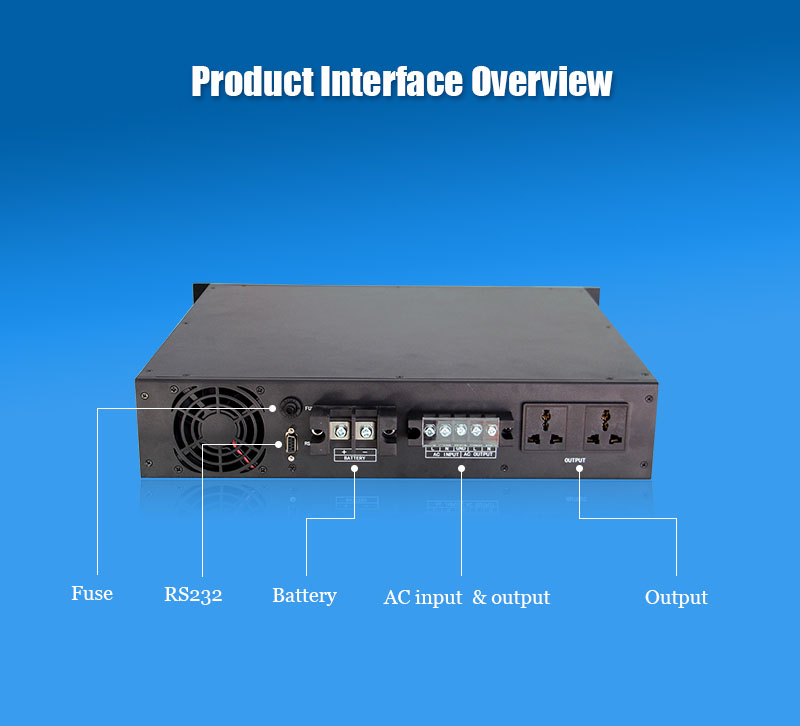

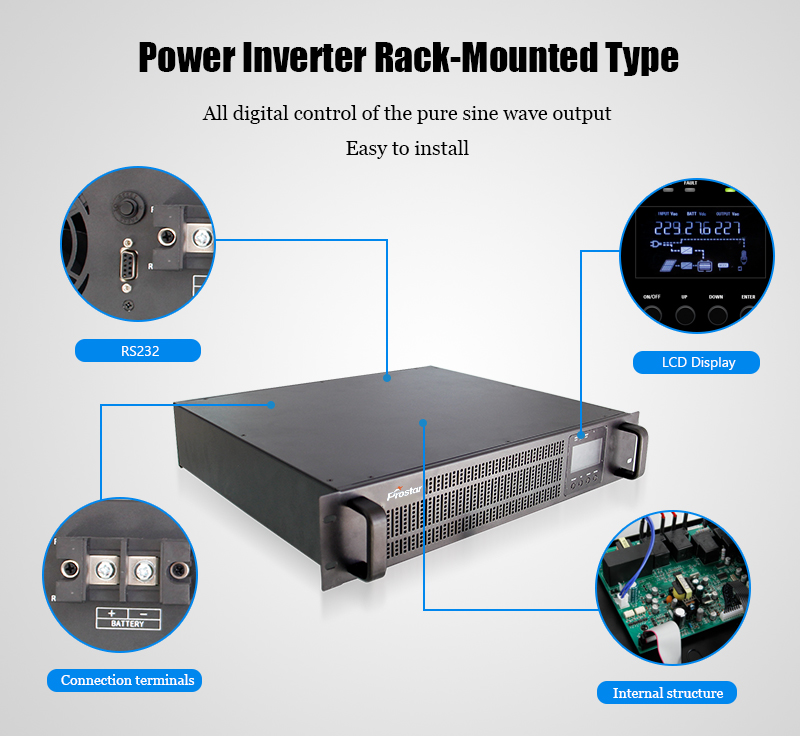

Rack Mount Inverter 300W Details
Error code reference
| Code | Description |
| E01 | Power amplifier over current |
| E02 | Output short circuit protection |
| E03 | Overload protection |
| E04 | Over temperature protection |
| E05 | Battery over voltage protection |
| E06 | Low battery voltage protection |
| E07 | Phase reverse protection |
| E08 | Low output voltage protection |
| E09 | Date of manufacture does not match |
| E10 | Battery power down, voltage drop |
The Articles You may Like
- Transformer based UPS VS transformerless UPS
- Chooce your best value mppt solar charge controller
- How to Choose Solar Inverter Kit for Home
- Rack Mount UPS – How to Choose for Servers and Home Network?
- Why Do We Need Split Phase Solar Inverter
- True online UPS system for railway signaling
- Solar inverter – Wikipedia
| Model | PIR0.3K | |||||
| Rated Power | 300W | |||||
| INPUT | ||||||
| Voltage Range | 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%) | |||||
| Frequency Range | 50/60 Hz±2.5Hz Auto | |||||
| OUTPUT | ||||||
| AC Voltage Regulation | 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%（AC Mode±10%） | |||||
| Frequency | 50HZ/60HZ±0.5HZ Auto（AC Mode±2.5HZ） | |||||
| Surge Power | 900W | |||||
| Battery Efficiency | 81% | |||||
| AC Efficiency | 93% | |||||
| Transfer Time | 8ms default, 4ms optional | |||||
| Waveform | Pure Sinewave | |||||
| BATTERY | ||||||
| Battery Voltage | 12VDC | |||||
| Floating Charge Voltage | 13.6VDC | |||||
| Overcharge Protection | 15.0VDC | |||||
| AC Charge Current | 0-20A Adjustable (20A default) | |||||
| PROTECTION | ||||||
| Battery Reversal | Optional | |||||
| Output Short Circuit | AC mode:Jump fuse, Inverter mode: Shut down | |||||
| Overload | Full load 100%, inverter alarm. Overload 120%, inverter shut down output in 10s. Once the load back to normal, inverter recovers output. | |||||
| High AC Voltage | Turn off AC, turn to inverter mode automatically | |||||
| Low DC Voltage | Inverter shuts down automatically, once the AC recover, inverter turns on and charges automatically | |||||
| Over Temperature | Power Off | |||||
| ENVIRONMENT | ||||||
| Humidity | 15～93%（No condensation） | |||||
| Temperature | -10℃ ~ 50℃ | |||||
| Altitude | ≤3000m | |||||
| Communication | RS232(default),USB, RS485, SNMP (Optional) | |||||
| MECHANICAL SPECIFICATIONS | ||||||
| Dimension, DxWxH (mm) | 483×390×88 [2U] | |||||
| Net Weight (Kgs/PC) | 7.00 | |||||
