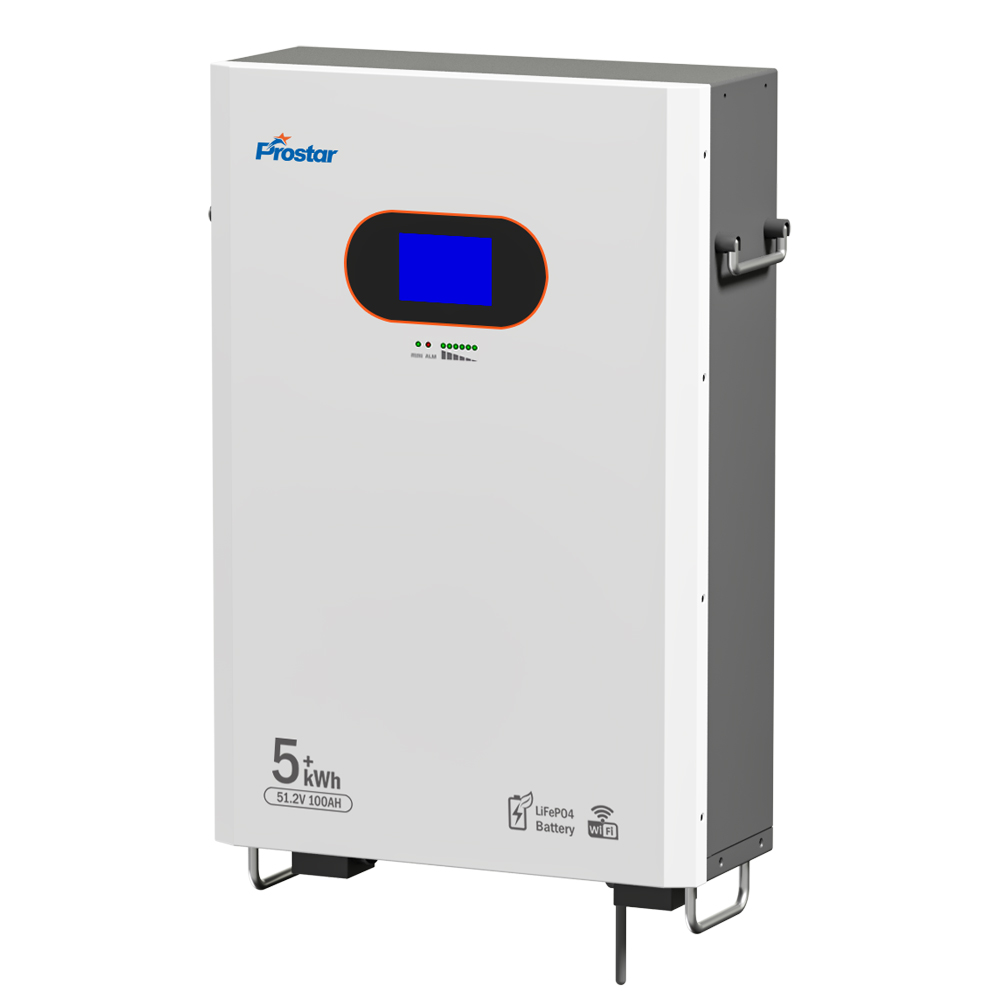

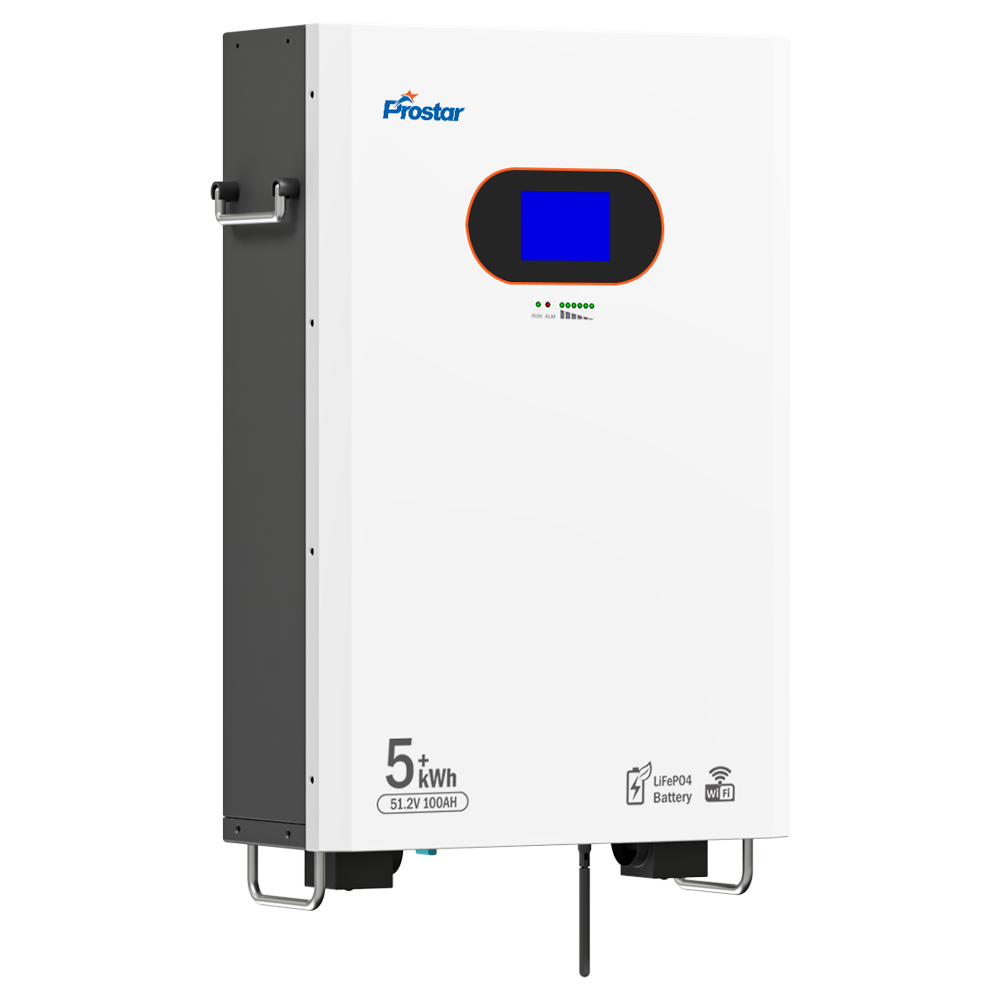

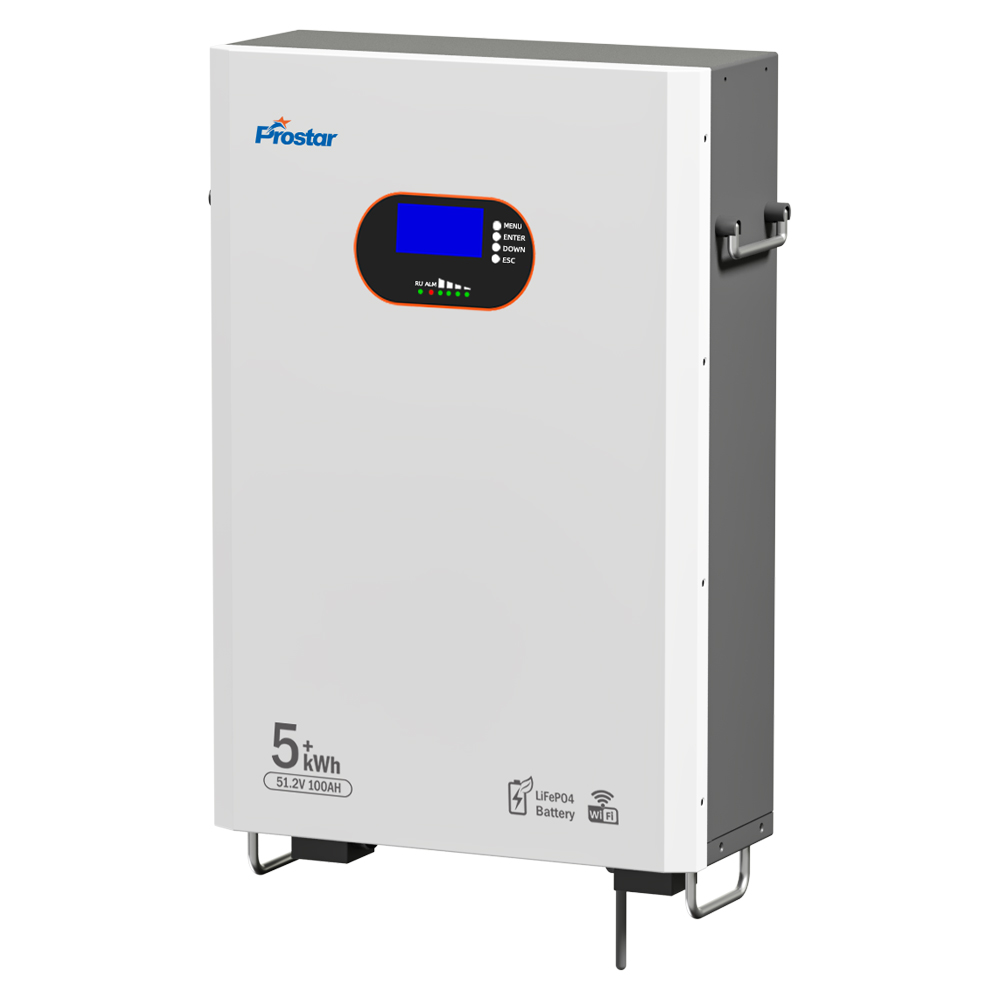

PLW51100 wall mounted LiFePO4 51.2V 100ah lithium battery 48v 5kwh

Prostar PLW51100 wall-mounted LiFePO4 51.2V 100Ah lithium battery 48V 5kWh is a versatile and convenient energy storage solution that is designed for easy wall mounting. It offers numerous benefits and features for efficient power storage and usage.

The LiFePO4 51.2V 100ah lithium battery utilizes advanced lithium-ion technology, providing high-quality performance, safety, and a long lifespan. With a voltage of 51.2V, it delivers reliable power for a wide range of applications.

Equipped with an integrated Battery Management System (BMS), the LiFePO4 51.2V 100ah lithium battery ensures optimal performance and safeguards against over-voltage, over-load, and over-temperature conditions. This BMS also extends the battery’s lifespan by monitoring and balancing individual cell voltages during charging and discharging.

LiFePO4 51.2V 100AH Lithium Battery Features

High-quality: The LiFePO4 battery is of superior quality, ensuring reliable performance and durability.

51.2V Voltage: The battery operates at a voltage of 51.2V, providing suitable power for various applications.

Wall Mounted Design: The battery is allowing for convenient installation and space utilization through wall mounting.

Safety: The LiFePO4 battery prioritizes safety, employing measures such as over-voltage, over-load, and over-temperature protection through its built-in Battery Management System (BMS).

Deep Cycle and Long Lifespan: The LiFePO4 battery can maintain a long lifespan through enabling repeated discharge and recharge cycles in deep cycling.

Parallel Support: The powerwall supports parallel connection of up to 15 modules, allowing for increased capacity and power output.

LCD Monitor: The battery features an LCD monitor that displays energy storage power data and operating status, providing real-time information to users.

External Main Switch: The battery includes an external main switch, which reduces product power consumption and enhances safety by allowing easy disconnection from the power source.

Wall Brackets: Wall brackets are provided with the battery, facilitating installation in different locations and ensuring secure mounting.

Compatibility: The LiFePO4 battery is compatible with various types of loads within the specified voltage range, enabling connection to a wide range of devices and applications.

100AH Lithium Battery Overview

LiFePO4 Lithium Battery Difference Connection

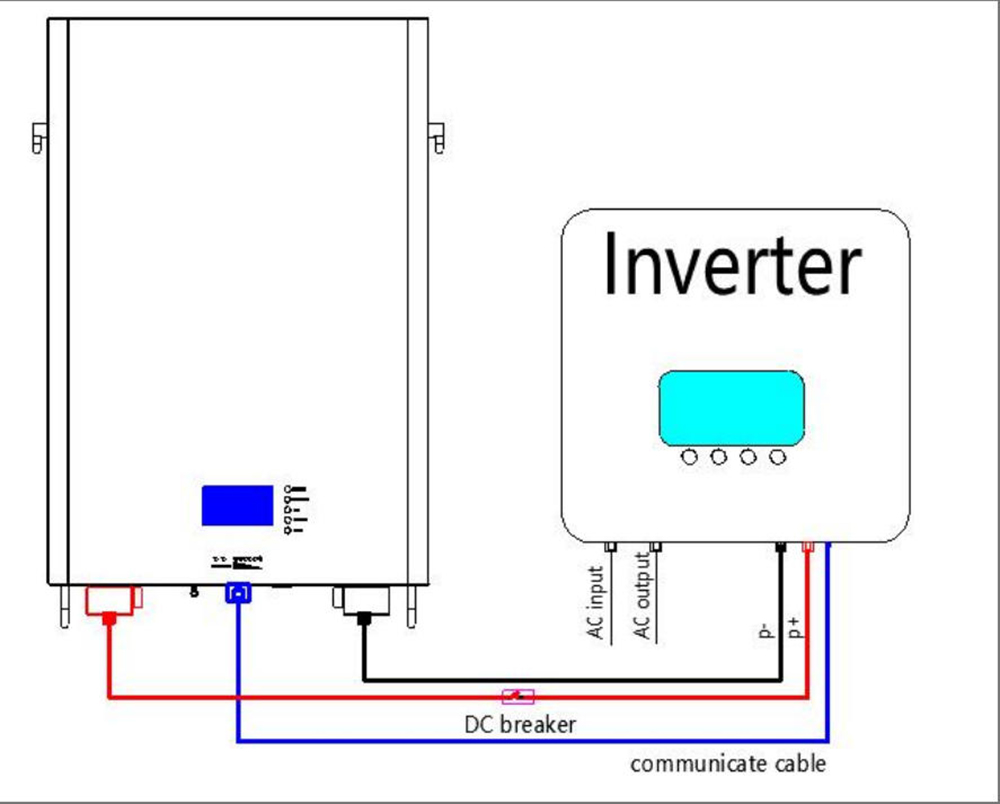

1. Single Lithium ion Battery Pack + Single Hybrid Solar Inverter

Connecting a single lithium-ion battery pack to a single hybrid solar inverter is the most straightforward and stable setup for residential or small commercial solar systems.

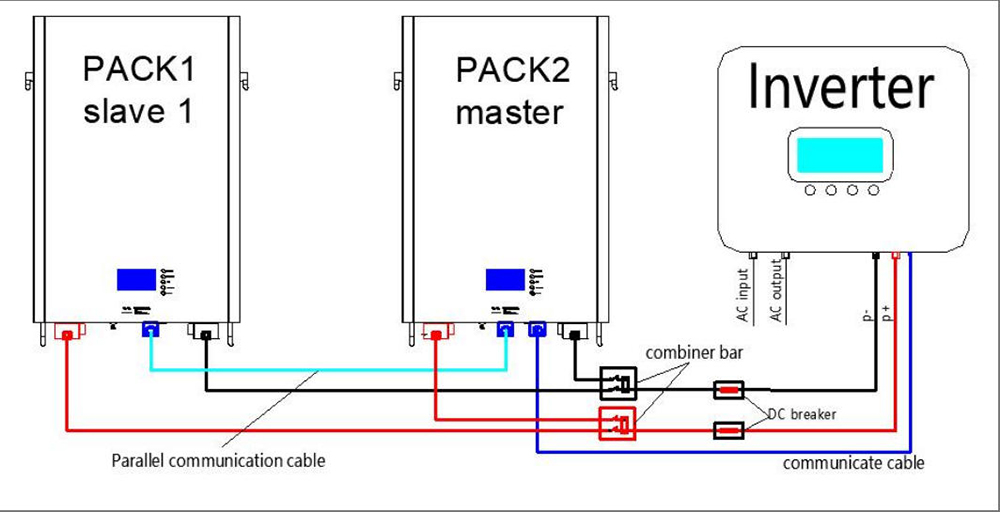

2.  TWO Lithium ion Battery Packs + Single Hybrid Solar Inverters

Connecting two lithium-ion battery packs in parallel with a hybrid solar inverter can be a good way to increase your battery capacity while maintaining the same system voltage.

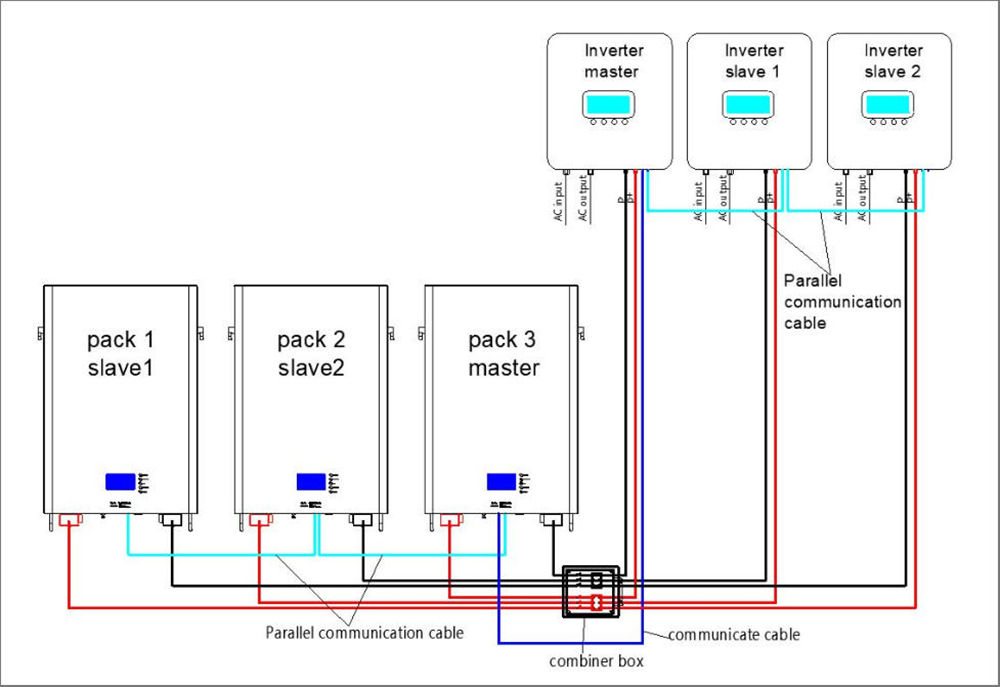

3. THREE Lithium ion Battery Packs + THREE units Hybrid Solar Inverters

Three hybrid inverters work in parallel to provide a single synchronized AC output, and either:

• Share one common battery bank (3 packs paralleled), or
• Each inverter runs on its own battery pack (less common, needs careful config).

Precautions

• Never mix batteries with different charge states or chemistry.

• Pre-balance (equalize voltage) before parallel connection.

• Monitor temperature and voltage regularly.

• Ensure the inverter supports lithium-ion settings (charging profile, cutoffs).

• Follow manufacturer instructions for battery and inverter.
