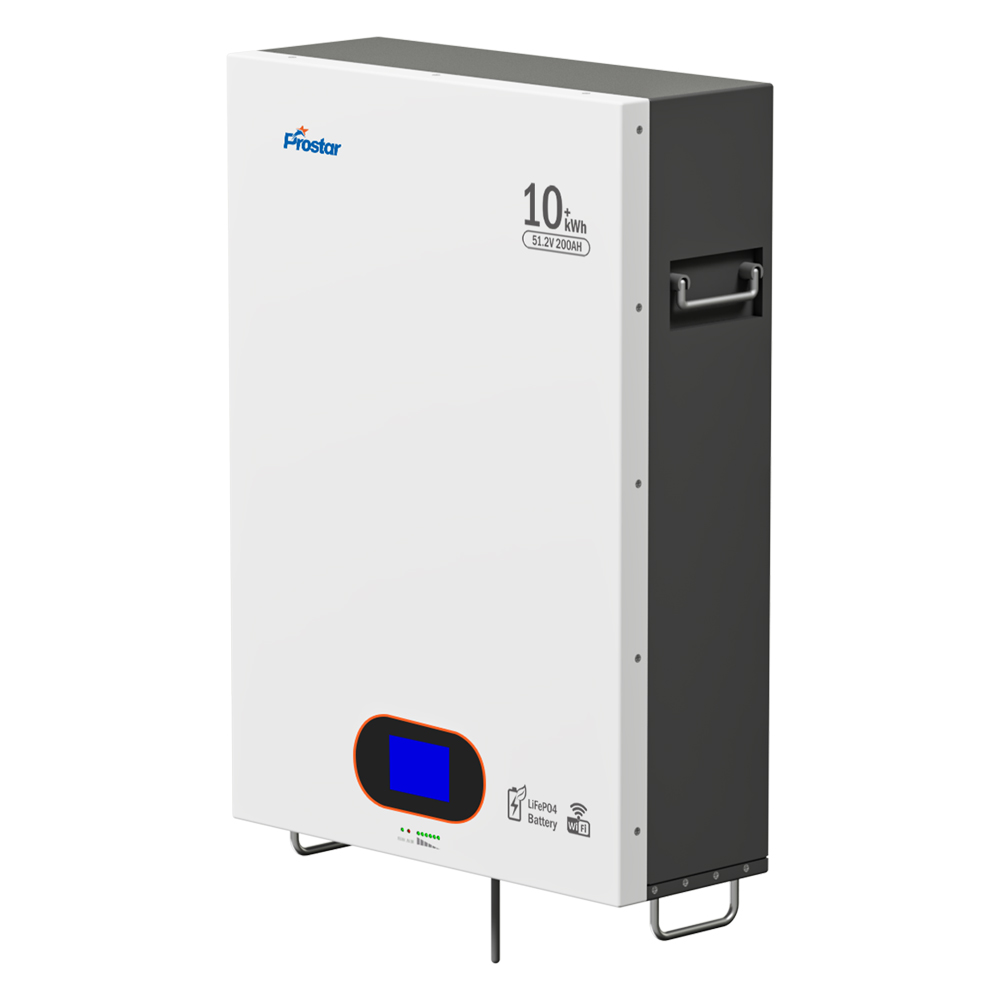

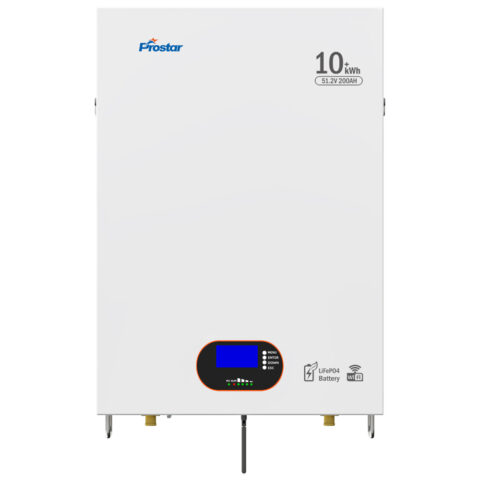

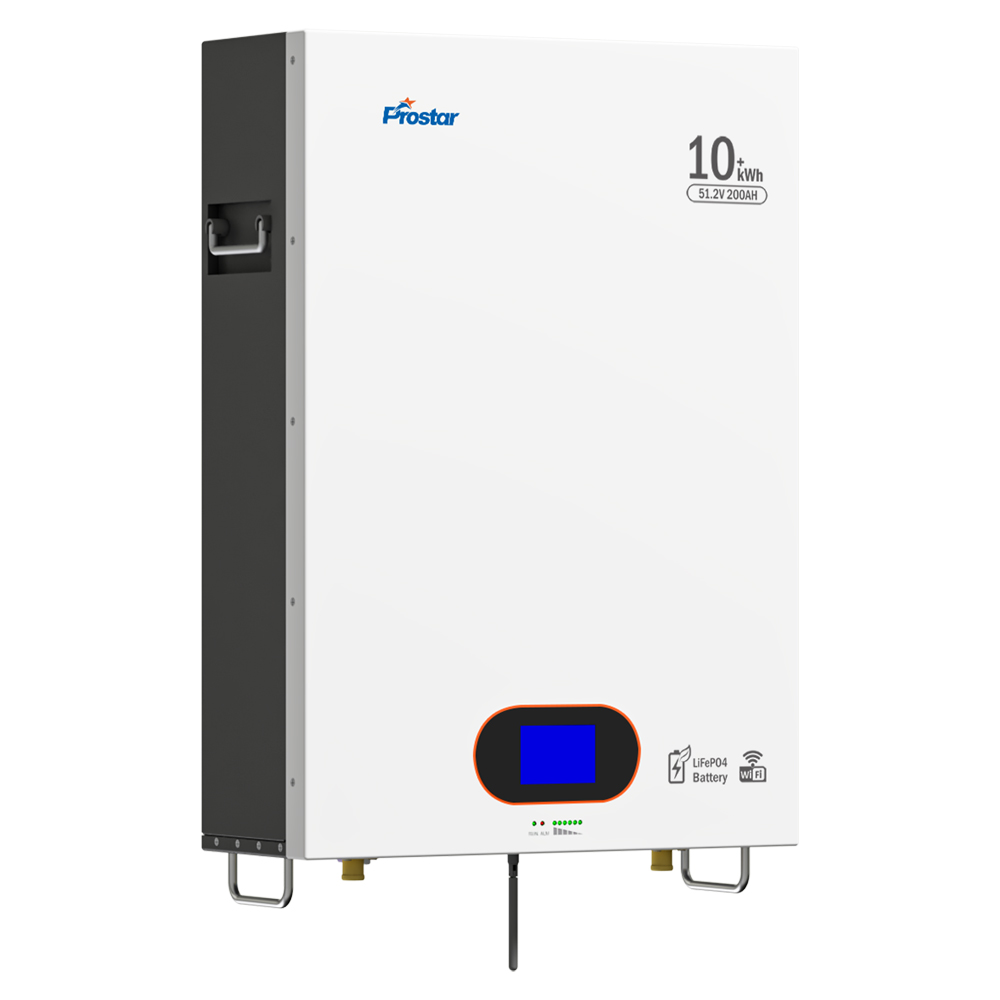

PLW51200 48v 10kwh wall mounted LiFePO4 51.2V 200ah lithium battery
Lithium Iron Phosphate Battery | 51.2V 200AH | 10.24KWH | BMS | LCD
Prostar PLW51200 48v 10kwh wall mounted LiFePO4 51.2V 200ah lithium battery combines safety, reliability, and convenience. With its high-quality construction, deep cycling capability, and long lifespan, it serves as an efficient energy storage solution for both residential and commercial settings.
The LiFePO4 51.2V 200ah lithium battery includes an LCD monitor that displays essential information such as energy storage levels, operating status, and other relevant data. This allows users to conveniently track and manage their power consumption.
Equipped with an integrated Battery Management System (BMS), the LiFePO4 51.2V 200ah lithium battery ensures optimal performance and safeguards against over-voltage, over-load, and over-temperature conditions. This BMS also extends the battery’s lifespan by monitoring and balancing individual cell voltages during charging and discharging.
Additionally, the 48v lithium battery pack comes with wall brackets that facilitate secure and flexible installation in various locations. This allows users to optimize space utilization while ensuring easy access for maintenance or replacement.
LiFePO4 51.2V 200AH Lithium Battery Features
High Energy Density
The PLW51200 boasts a high energy density, allowing for more energy storage in a compact design. This makes it perfect for installations where space is limited.
51.2V Voltage
The battery operates at a voltage of 51.2V, providing suitable power for various applications.
Wall Mounted Design
The battery is allowing for convenient installation and space utilization through wall mounting.
Safety and Stability
LiFePO4 batteries are known for their thermal stability and safety. The 200ah lithium battery is equipped with advanced battery management systems (BMS) that monitor and protect against overcharging, over-discharging, and short circuits.
Deep Cycle and Long Lifespan
With a cycle life of over 6000 cycles at 80% depth of discharge, the LiFePO4 chemistry ensures longevity and durability, significantly reducing the need for frequent replacements.
Parallel Support
The powerwall supports parallel connection of up to 15 modules, allowing for increased capacity and power output.
LCD Monitor
This LiFePO4 battery features an LCD monitor that displays energy storage power data and operating status, providing real-time information to users.
External Main Switch
The battery includes an external main switch, which reduces product power consumption and enhances safety by allowing easy disconnection from the power source.
Wall Brackets
Wall brackets are provided with the battery, facilitating installation in different locations and ensuring secure mounting.
Easy Installation
Designed for wall mounting, the PLW51200 can be easily installed in various settings, including homes, offices, and commercial buildings. Its lightweight design facilitates straightforward handling and setup.

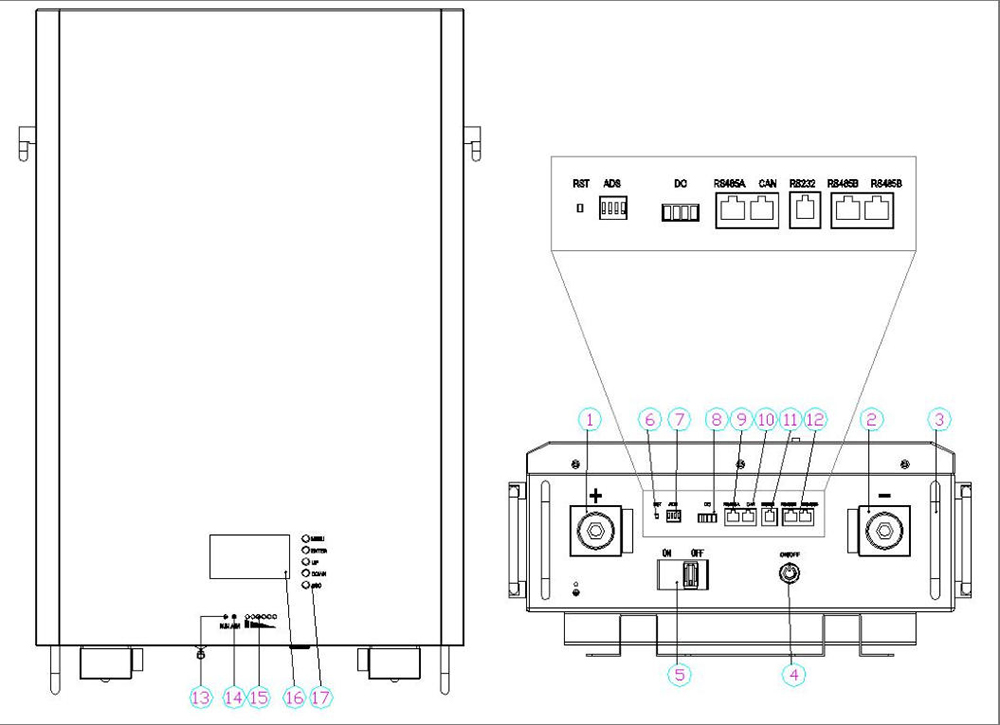

Lifepo4 Lithium Battery Overview
| 1 | Battery Pack positive pole | 10 | CAN bus Port |
| 2 | Battery Pack negative pole | 11 | RS232 Port |
| 3 | Handle | 12 | RS485B Port |
| 4 | E-switch | 13 | LED indicate |
| 5 | Power switch | 14 | LED indicate |
| 6 | Reset button | 15 | LED indicate |
| 7 | Dial switch | 16 | LCD Display |
| 8 | Dry port | 17 | LCD Button |
| 9 | RS485A Port |
Lithium Deep Cycle Battery Details
The Articles You may Like
- The Essential Role of Industrial UPS for Factories
- N+1 Modular UPS vs Standalone UPS for 120–200 kW Data Center Growth
- Top 5 Benefits of Installing Solar Battery Backup System
- Rack Mount UPS – How to Choose for Servers and Home Network?
- True online UPS system for railway signaling
- Solar inverter – Wikipedia
| MODEL | PLW51200 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Array Mode | 16S |
| Dimension (L x W x H, mm) | 440x206x670 |
| Approx. Weight (Kgs) | 76 |
| GENERAL | |
| Nominal Energy | 10240Wh |
| Efficiency | > 96% |
| Inner Resistance | 7mΩ |
| Cell Type | LiFePO4 |
| CHARGE | |
| Recommended Charge Voltage | 58.4V |
| Standard Charging Current | 40A |
| Max. Continuous Charging Current | 100A |
| DISCHARGE | |
| Standard Discharge Current | 40A |
| Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A(3s) |
| Discharge Cut-off Voltage | 42V |
| OTHERS | |
| Life Cycles | 4000+ (80% DoD for effectively lower total of ownership cost) |
| Self Discharge | 2% per month |
| Display | LED + LCD |
| Communication | RS485 / CAN |
| Shell Material | SPCC |
| ENVIRONMENT | |
| Charge Temperature Range | 0 ~ 60℃ |
| Discharge Temperature Range | -10 ~ 65℃ |
| Storage Temperature | -5 ~ 40℃ |
| Storage Humidity | 65±20%HR |
Download CATALOG
