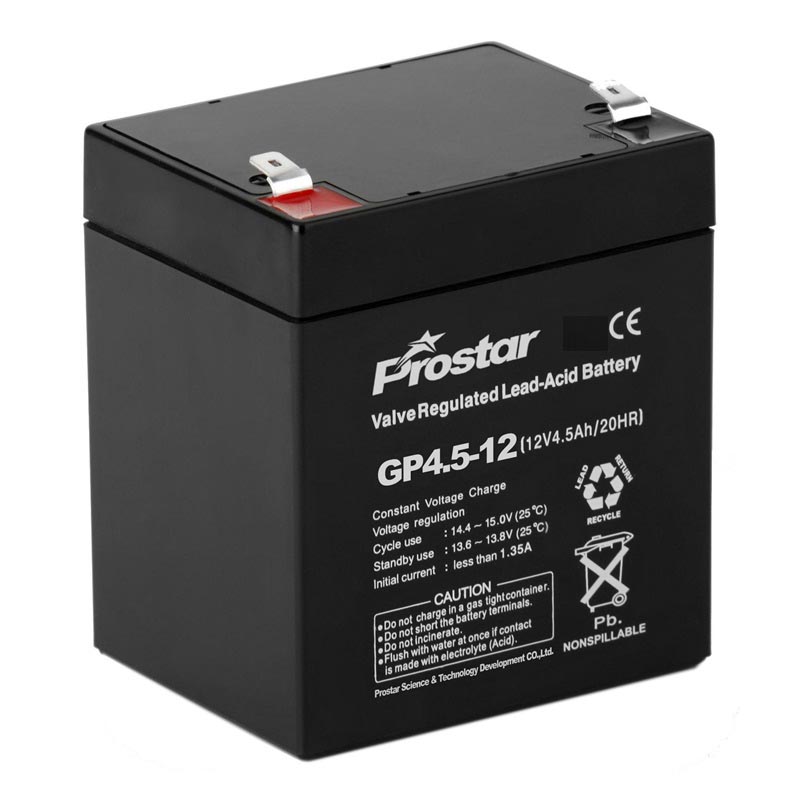

GP4.5-12 valve regulated 12v 4.5 ah battery for alarm security system

Lead Acid Battery | 12V 4.5AH | 20 Hour Rate | Dimension: 90x70x101x107mm

SKU: GP4.5-12 Category:

GP4.5-12 valve regulated 12v 4.5 ah battery for alarm security system uses a state of the art, heavy-duty, calcium-alloy grid that provides exceptional performance and service life in both float and cyclic applications.

The grid structure of the lead acid battery is made from a lead alloy. Pure lead is too soft and would not support itself, so small quantities of other metals are added to get the mechanical strength and improve electrical properties.

Valve regulated 12v 4.5 ah battery is an Absorbent Glass Mat (AGM) technology with a valve regulated design, that can be used in enclosed and indoor environments without leaking or maintenance, providing a superior performance for thousands of models.

lead acid battery

12v 4.5ah Battery Benefits

  • Inexpensive and simple to manufacture.
  • Mature, reliable and well-understood technology – when used correctly, lead-acid is durable and provides dependable service.
  • The self-discharge is among the lowest of rechargeable battery systems.
  • Capable of high discharge rates.
  • Sealed Maintenance-free
  • ABS Containers (UL94HB or UL94V0)
  • High-quality AGM separator

Battery Applications

  • UPS & EPS
  • Lighting equipment
  • Fire alarms and security systems
  • Communications and electric equipment
  • Portable VTR/TV, tape recorders, radios, etc.
  • Various power toys and recreational equipment
  • Emergency power supplies in power generation plants and substations
  • Golf Cart
  • Medical equipment

TECHNICAL SPECIFICATIONS

Nominal Voltage 12V
 Nominal Capacity (20 hour rate) 4.5Ah
Capacity

25℃(77°F)

 10 hour rate (0.43A) 4.3Ah
5 hour rate (0.80A) 4.0Ah
1 hour rate (2.97A) 2.97Ah
Internal Resistance Full Charged Battery 25℃ ≤32mΩ
Capacity affected by Temperature

(10 hour )

 40℃ (104°F) 102%
25℃ (77°F) 100%
0℃ (32°F) 85%
-15℃ (5°F) 65%
Self-Discharge

25℃(77°F) Capacity

 after 3 month storage 90%
after 6 month storage 80%
after 12 month storage 62%
Charge (Constant Voltage) 25℃(77°F) Float Initial Charging Current Less than1.35A

Voltage 13..6-13.8V
Cycle Initial Charging Current Less than1.35A

Voltage 14.4-15.0V

DIMENSIONS & WEIGHT

Battery Dimensions Length 90mm
Width 70mm
Height 101mm
Total Height 107mm
Box Dimensions Length 389mm
Width 200mm
Height 147mm
Quantity Per Box 10 pcs per box
Net weight Per Cell 1.38 kg±50g
Net weight Per Box 13.8kg
Gross Weight 14.2kg

Discharge Constant Current per Cell (Amperes at 77°F25°C)

F.V/Time 5min 10min 15min 30min 45min 1h 2h 3h 5h 8h 10h 20h
16.50 14.85 9.90 7.45 4.95 3.47 2.97 1.86 1.27 0.85 0.57 0.47 0.25
16.20 14.58 9.72 7.31 4.86 3.40 2.92 1.82 1.25 0.83 0.56 0.46 0.24
15.90 14.31 9.54 7.18 4.77 3.34 2.86 1.79 1.23 0.82 0.55 0.45 0.24
15.60 14.04 9.36 7.04 4.68 3.28 2.81 1.76 1.20 0.80 0.54 0.45 0.23
15.00 13.50 9.00 6.77 4.50 3.15 2.70 1.69 1.16 0.77 0.52 0.43 0.23

Discharge Constant Power per Cell (Watts at 77°F 25°C)

F.V/Time 5min 10min 15min 30min 45min 1h 2h 3h 5h 8h 10h 20h
1.60V 28.59 19.06 14.34 9.53 6.67 5.72 3.57 2.45 1.63 1.10 0.91 0.48
1.65V 28.07 18.71 14.08 9.36 6.55 5.61 3.51 2.40 1.60 1.08 0.89 0.47
1.70V 27.55 18.36 13.82 9.18 6.43 5.51 3.44 2.36 1.57 1.06 0.87 0.46
1.75V 27.03 18.02 13.56 9.01 6.31 5.41 3.38 2.32 1.54 1.04 0.86 0.45
1.80V 25.99 17.33 13.04 8.66 6.06 5.20 3.25 2.23 1.48 1.00 0.82 0.43
