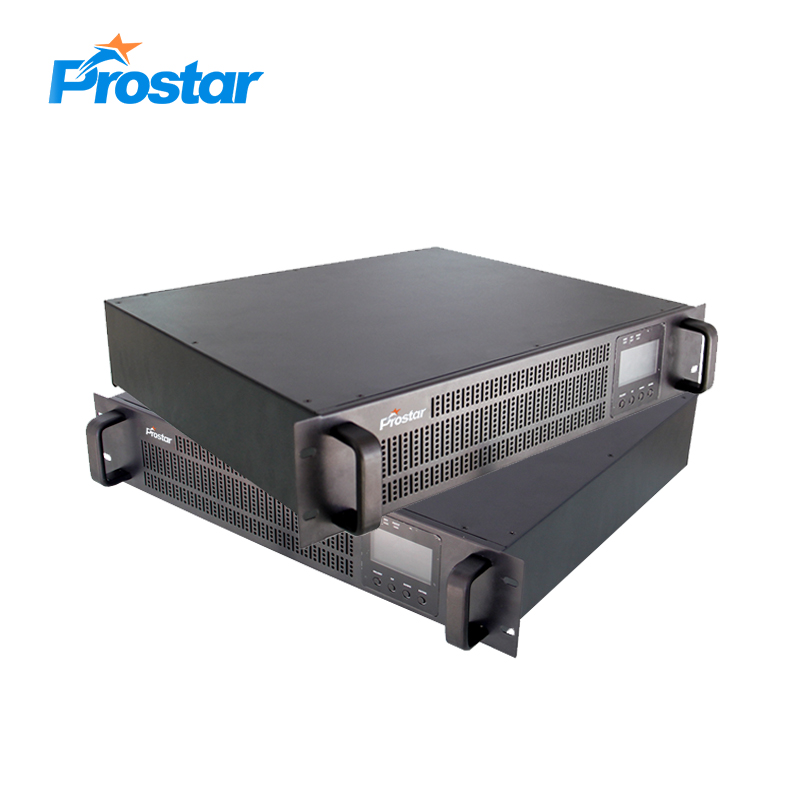

Prostar PIR3K 48 volt rack mount power pure sine wave inverter 3000w

Rack-mount Power Inverter | 3KW | 3U | 48VDC | 110V/120V or 220V/230V/240V | Single Phase

SKU: PIR3K Category:

Prostar PIR3K 48 volt rack mount power pure sine wave inverter 3000w is a stand-alone inverter capable of converting a 48V DC power source into a pure sine wave AC output.

It mounts neatly and out of the way on racks but will automatically switch from your local electric utility to your backup batteries when city power fails during storms or power outages are caused by other factors.

Prostar rack-mount inverter selection runs the gamut. From 300W 12VDC inverters and 4000W 48V DC inverters, we have you covered. Rack sizes include 2u and 3u.

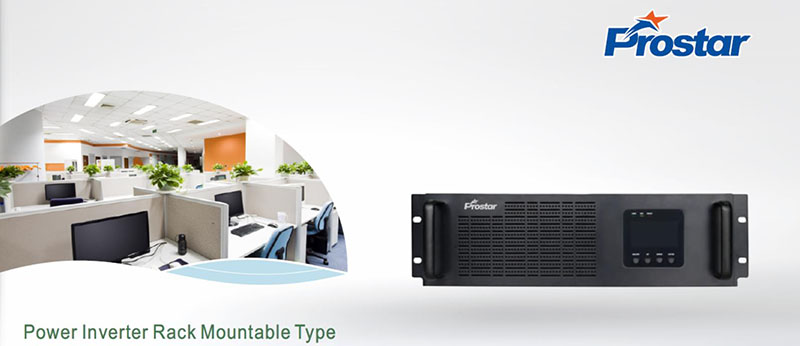

Prostar Rack-mount Power Inverter

Rack-mount power inverter technology

Prostar 48 volt rack mount power pure sine wave inverter 3000w produces high-quality, pure sine power at a stable 110V/120V or 220V/230V/240V AC output that is ideal for running sensitive electronics. It is perfect for computers, telecom, audio/visual, medical and other important equipment. Another way to better secure your critical loads.

A built-in automatic transfer switch seamlessly transfers power from your city service to your battery backup bank when city power goes out, with a typical transfer time of less than 8 ms. As long as your battery backups provide sufficient voltage, the telecom 48 volt rack mount power pure sine wave inverter 3000w will provide steady power to your devices.

AC outlets give you easy access to AC power. DC terminals are on the back of the inverter for connecting to battery power. The front of the inverter has a LED monitor and LCD display that lets you track input DC voltage, output AC voltage, frequency and AC current. A communications port allows you to monitor these numbers via computer as well.

Features & Benefits

1. Excellent microprocessor control guarantees high reliablility

2. Intelligent charger with adjustable charging voltage and charging current

3. Wide input voltage range (110V-300V)

4. Special Protection method

5. Well unattended function

6. Auto restart while AC is recovering

7. Pure Sine Wave Output

8. Boost and buck AVR for voltage stabilization

9. Cold start function

10. LCD panel for comprehensive display

Diagram Pure Sine Wave Inverter 3000w

Rack-mount power inverter diagram

Inverter Details

Rack-mount power inverter details

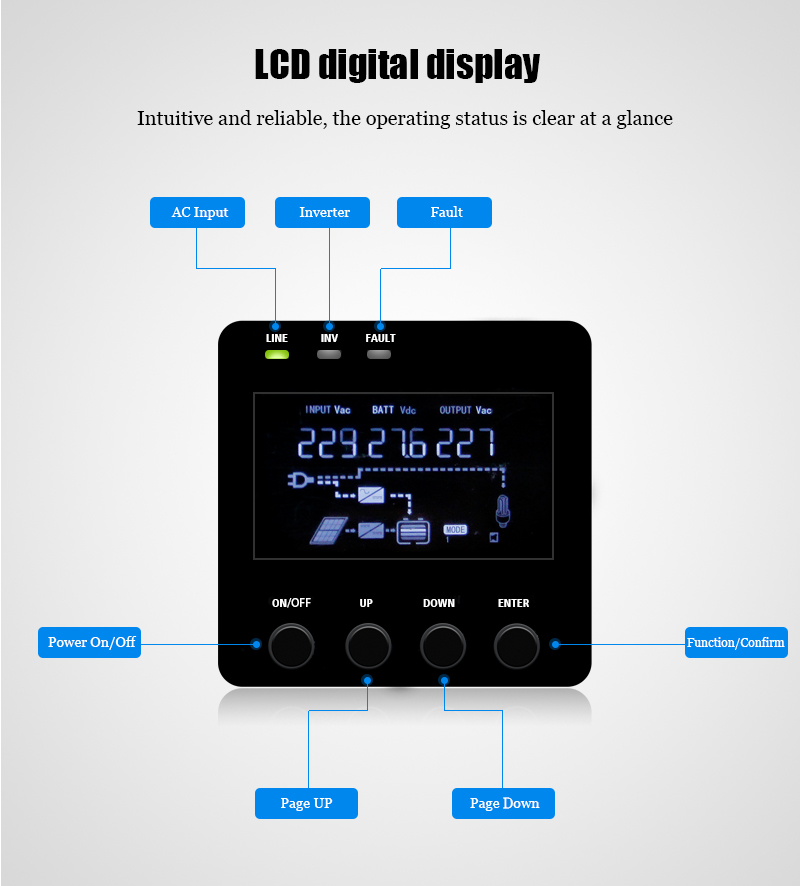

Rack-mount power inverter LCD display

Rack-mount power inverter display icons

Rack-mount power inverter rear detail

Inverter Smart Charger

Rack-mount power inverter smart charging

The Articles You may Like

    Request Product Price


    * Required

    Technical Data of Pure Sine Wave Inverter 3000w

    Model PIR3K
    Rated Power 3000W
    INPUT
    Voltage Range 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
    Frequency Range 50/60 Hz±2.5Hz Auto
    OUTPUT
    AC Voltage Regulation 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%(AC Mode±10%)
    Frequency 50HZ/60HZ±0.5HZ Auto(AC Mode±2.5HZ)
    Surge Power 0.9KW
    Battery Efficiency 81%
    AC Efficiency 93%
    Transfer Time 8ms default, 4ms optional
    Waveform Pure Sinewave
    BATTERY
    Battery Voltage 48VDC
    Floating Charge Voltage 54.4VDC
    Overcharge Protection 60.0VDC
    AC Charge Current 0-40A Adjustable (40A default)
    PROTECTION
    Battery Reversal Optional
    Output Short Circuit AC mode:Jump fuse, Inverter mode: Shut down
    Overload Full load 100%, UPS alarm. Overload 120%, inverter shut down output in 10s. Once the load back to normal, inverter recovers output.
    High AC Voltage Turn off AC, turn to inverter mode automatically
    Low DC Voltage Inverter shuts down automatically, once the AC recover, inverter turns on and charges automatically
    Over Temperature Power Off
    ENVIRONMENT
    Humidity 15~93%(No condensation)
    Temperature -10℃ ~ 50℃
    Altitude ≤3000m
    Communication RS232(default),USB, RS485, SNMP (Optional)
    MECHANICAL SPECIFICATIONS
    Dimension, DxWxH (mm) 483×420×132 [3U]
    Net Weight (Kgs/PC) 28.00
    Product specifications are subject to change without further notice.
