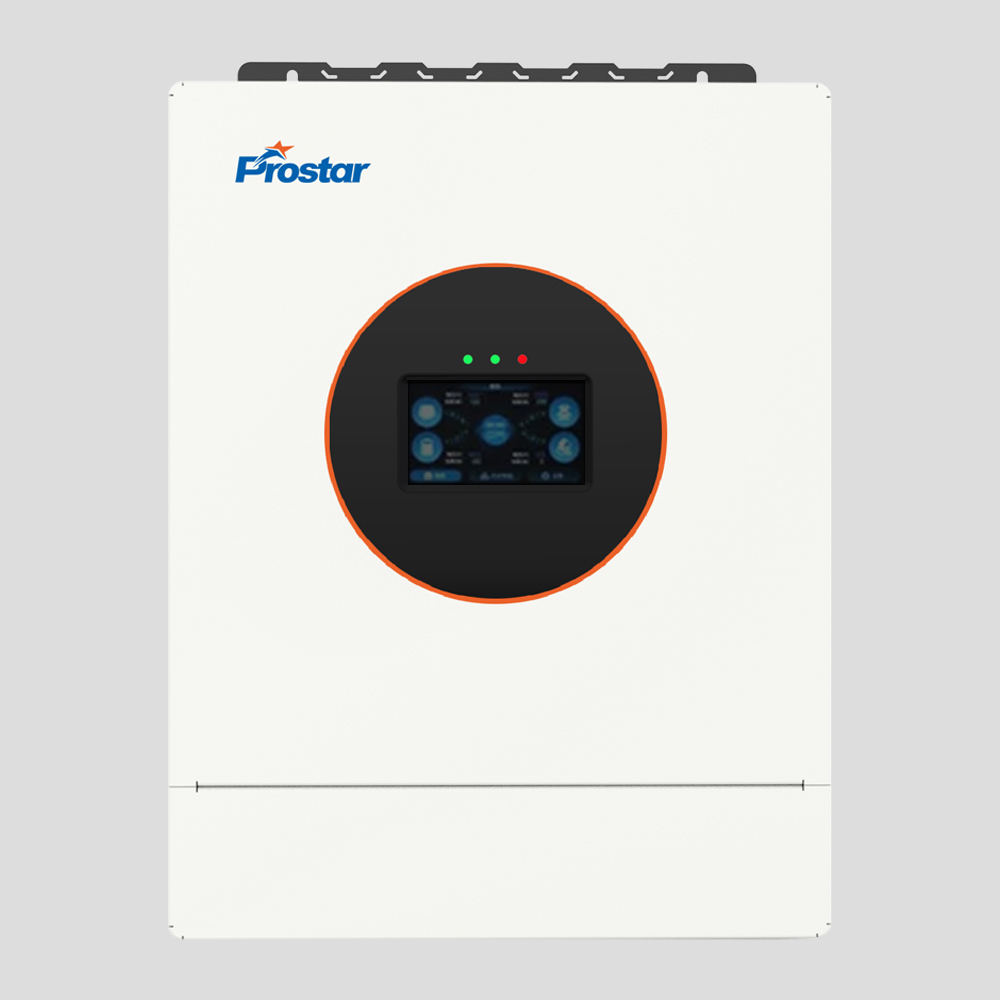

PLV5K-48PL-PLUS 5000w 48v split phase solar inverter charger
Split Phase Solar Inverter | 5000W | 110Vac/220Vac or 120V/240Vac | 48VDC | Max. Charge: 120A
Prostar PLV5K-48PL-PLUS 5000w 48v split phase solar inverter charger delivers reliable power. It is efficient and suitable for residential and small commercial applications. This advanced system seamlessly integrates solar energy, grid power, and battery storage to create a robust and versatile power solution.
It delivers a pure sine wave output in a split-phase configuration. This makes it perfectly suited for powering a wide range of appliances and tools in North American homes and beyond.
For higher power demands, the split phase solar inverter charger supports up to 6 units in parallel, enabling up to 30kW off-grid power. Its open battery interface design allows multi-battery expansions for extended storage capacity.
Split Phase Solar Inverter Charger Features
5000W Continuous Power (10,000W Surge)
Effortlessly runs sensitive electronics, power tools, and major household appliances like refrigerators, washing machines, and well pumps.
110V/220V or 120V/240V Split-Phase AC Output
Provides the standard voltage needed for homes with 220V or 240V appliances. These appliances include water heaters, air conditioners, and ovens. This offers complete electrical compatibility.
Maximum Power Point Tracking (MPPT)
Features a high-efficiency MPPT solar charge controller. The 5000w 48v split phase solar inverter charger optimizes the energy harvest from your solar panels. This increases efficiency by up to 30% compared to traditional PWM controllers.
Wide PV Input Range (125VDC-425VDC)
Supports high-voltage solar array strings, reducing current and allowing for the use of thinner, more cost-effective cables and smaller combiners.
Generator & Grid Input Support
Automatic switchover between power sources. It is perfect for backup, hybrid, and off-grid systems.
Smart Battery Compatibility
Works with LiFePO₄, GEL, AGM, Lead-carbon, and custom battery types. It is adjustable charging profiles and BMS support.
Product Details
| 1 | Touch Screen | 8 | Dry Contact |
| 2 | LED Indicator | 9 | Battery Connector (Positive) |
| 3 | Terminal Protection Cover | 10 | Battery Connector (Negative) |
| 4 | ON/OFF Switch | 11 | PV Connector |
| 5 | Parallel Communication Port | 12 | AC Output (L1-N-L2) |
| 6 | RS485-1 Port (BMS) | 13 | AC Input (L1-N-L2-PE) |
| 7 | CAN/RS485-2 Port | – | — |
Split Phase Inverter Wiring Diagram
Supports both single-phase (120VAC) and split-phase (120/240VAC) output modes, making it compatible with a wide range of residential and commercial loads.

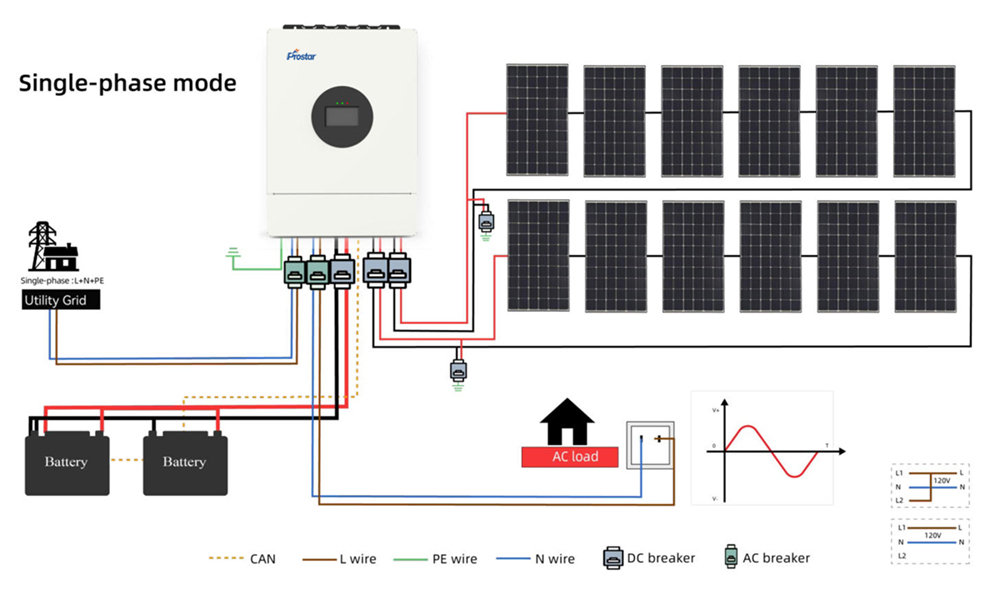

Single Phase Working Mode
In single-phase mode, the inverter delivers stable 120VAC output for typical household and light commercial applications. Users can run standard appliances, lighting, electronics, and battery backup systems without requiring a 240V setup.

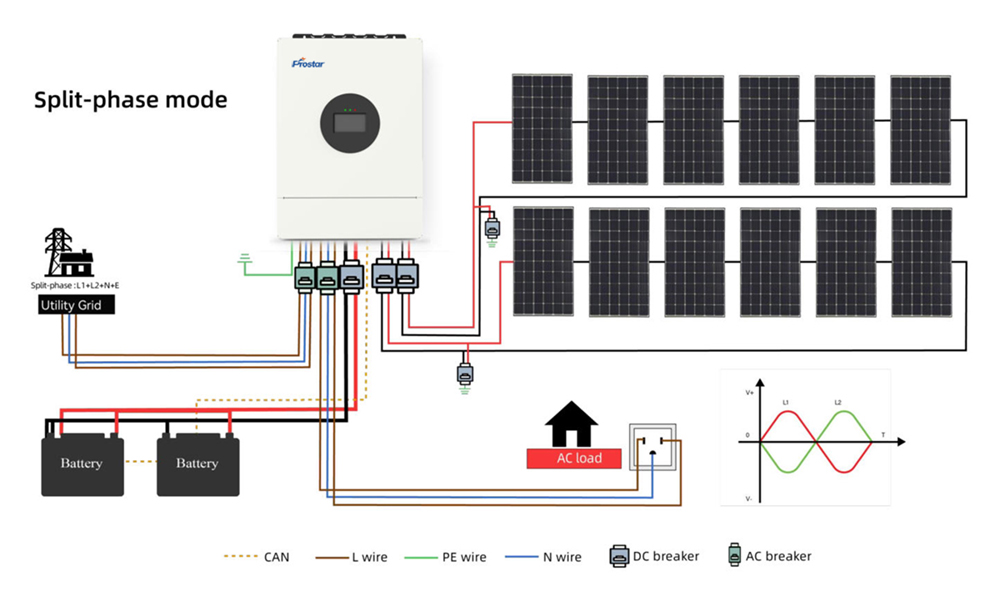

Split Phase Working Mode
In split-phase mode, the 5000w 48v split phase solar inverter charger provides 120VAC on each leg. It also provides 240VAC between legs. This makes it suitable for running heavy-duty equipment alongside standard household loads. This is ideal for off-grid homes, workshops, cabins, backup systems, and hybrid solar storage setups.
Ideal Applications
- Whole‑home backup systems that require split‑phase support.
- Off‑grid or hybrid systems for rural properties and agricultural operations.
- Small commercial installations needing reliable, expandable power with solar charging.
The Articles You may Like
- The Indispensable Role of Online UPS for Industrial Use
- Split-phase electric power – Wikipedia
- What is the CT Sensor in Solar Inverter On Off Grid
- How Long Should the Durable Online UPS Systems Last
- Why Medical Facilities Rely on Medical Grade UPS Systems
- The Essential Role of Industrial UPS for Factories
- The Essential Role of Industrial Grade UPS Systems in Modern Manufacturing
| Model | PLV5K-48PL-PLUS |
| PHASE | Single Phase or Split Phase |
| Rated Output Power | 5000W |
| Parallel Function | up to 6 units |
| Dimension, D x W x H (mm) | 130x472x365 |
| Net weight (Kg) | 15 |
| PV INPUT (DC) | |
| Max. PV INPUT POWER | 7500W |
| Max. DC Input Voltage | 500VDC |
| MPPT Voltage Range | 125VDC~425VDC |
| Max. DC INPUT Current | 27A |
| No. of MPPT Trackers | 1 |
| AC/GENERATOR INPUT | |
| Input Voltage Range | 90VAC-140VAC (L-N) |
| Input Frequency | 50Hz / 60Hz |
| Bypass Overload Current | 40A |
| AC OUTPUT | |
| Rated Output Power | 5000W |
| Max. AC Output Power | 10KW |
| Nominal Output Voltage | 110VAC/120VAC for Single Phase; 220VAC/240VAC for Split Phase |
| Output Frequency | 50Hz / 60Hz |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 10ms(max.20ms for single unit; max. 30ms for parallel ) |
| EFFICIENCY | |
| Max. Efficiency (DC/AC) | 93.0% |
| MPPT Tracking Efficiency | 99.9% |
| BATTERY & CHARGER | |
| Battery Type | Lead-acid or Lithium-ion or User-defined |
| Nominal DC Voltage | 48VDC |
| DC Voltage Range | 40VDC – 60VDC |
| Max. Solar Charging Current | 120A |
| Max. AC Charging Current | 100A |
| Max. Charging Current | 120A |
| Charging Strategy for Li-battery | Self-adaption to BMS |
| INTERFACE | |
| Communication Port | RS485/CAN, Dry Contact |
| External Module (optional) | WiFi/Bluetooth |
| ENVIRONMENT | |
| Operating Temperature | -10°C to 55 °C (>45 °C derating) |
| Humidity | 0~95% (non-condensing) |
| Noise | < 45dB |
| Cooling Method | Intelligent Air Cooling |
| Protection Degree | IP20 |
| Installation Style | Wall-mounted |
