In today’s healthcare environment, uninterrupted power is not just a convenience—it’s a matter of life and death. Medical grade UPS systems are specially designed to meet the strict requirements of medical environments, providing reliable, clean, and continuous power to critical equipment.
What Is a Medical Grade UPS?
A medical grade UPS is a power protection system built to supply emergency backup power to medical devices and systems in the event of a power failure or fluctuation. Unlike standard commercial UPS units, medical UPS systems comply with strict international safety standards such as IEC 60601-1 for electrical medical equipment. These UPS units are often found in hospitals, clinics, ICUs, operating rooms, emergency departments, and diagnostic imaging centers. Reference Prostar Medical Grade UPS Healthcare Power Solutions
Key Features
Medical Compliance
- Designed to meet medical safety certifications, especially IEC/EN 60601-1.
- Low leakage current to ensure patient safety.
High Reliability
- Delivers pure sine wave output for sensitive medical equipment like ventilators, monitors, CT scanners, and infusion pumps.
- Built-in redundancy and self-diagnostics for maximum uptime.
Isolation Transformer
Medical UPS systems typically include an isolation transformer to reduce electrical noise and ensure electrical isolation between patient-connected devices and power sources.
Battery Backup
Equipped with high-quality batteries to provide power during outages, ensuring uninterrupted operation of life-saving equipment.
Noise and Surge Protection
Offers excellent EMI/RFI filtering and surge suppression, protecting devices from electrical disturbances.
Why Healthcare Needs UPS Systems
Ensuring Continuous and Stable Power Supply
Medical equipment such as ventilators, imaging machines, and monitors require an uninterrupted power supply to function accurately and safely. UPS systems provide a seamless transition to battery power during mains failure or power fluctuations, preventing any downtime that could jeopardize patient care. This zero change-over delay ensures critical devices continue operating without interruption.
Delivering Clean and Conditioned Power
Medical UPS units deliver clean sinewave power, free from surges, spikes, and electrical noise that can damage sensitive equipment or cause inaccurate readings. They protect against mains borne disturbances, maintaining the integrity and longevity of medical devices.
High Reliability and Safety Features
UPS systems designed for healthcare incorporate multiple safety protections including overload, short-circuit, and surge protection. Their high reliability supports continuous 24/7 operation, essential for critical care environments. Additionally, low noise and vibration designs help maintain a quiet hospital atmosphere, which is important for patient comfort.
Backup Duration and Scalability
Depending on battery size, medical UPS systems can provide emergency power from 15 minutes up to several hours, allowing time for safe equipment shutdown or generator startup. They also come in scalable configurations (from 6KVA to 600KVA or 1.2MVA) to meet diverse healthcare needs, from operating theatres to imaging rooms.
Regulatory Compliance and Maintenance
Healthcare UPS solutions are factory tested to meet stringent regulations and often include features like external maintenance bypass panels. These allow UPS maintenance without disrupting power to critical loads, ensuring continuous protection and compliance with healthcare standards.
How do Isolation Transformers Prevent Electrical Noise
Isolation transformers in medical UPS systems prevent electrical noise through several key mechanisms rooted in their design and operation.
Breaking the Direct Electrical Path
Isolation transformers decouple the input (primary) and output (secondary) circuits by magnetic induction rather than a direct electrical connection. This breaks the path through which electrical noise, spikes, and surges typically travel, preventing these disturbances from reaching sensitive medical equipment.
Electromagnetic Induction Filtering
Power is transferred via electromagnetic induction, which inherently filters out high-frequency voltage spikes and electrical noise. This process smooths the power supply, delivering a cleaner and more stable output to connected devices.
Common Mode Noise Rejection
Isolation transformers are designed to reject common-mode noise—electrical interference that appears equally on both power lines relative to ground. This rejection ensures that only the intended clean power signal reaches sensitive medical devices, protecting them from disruption or damage.
Voltage Spike Absorption and Damping
Many isolation transformers have built-in capabilities to absorb and dampen voltage spikes, reducing their amplitude before they can affect downstream equipment. This buffering action further protects delicate medical electronics from transient power disturbances.
Secondary Grounding
Isolation transformers often provide a secondary grounding point that safely dissipates electrical noise and spikes into the earth, enhancing protection and electrical safety in medical environments.
Related Medical Grade UPS Systems
UPS Applications in Healthcare

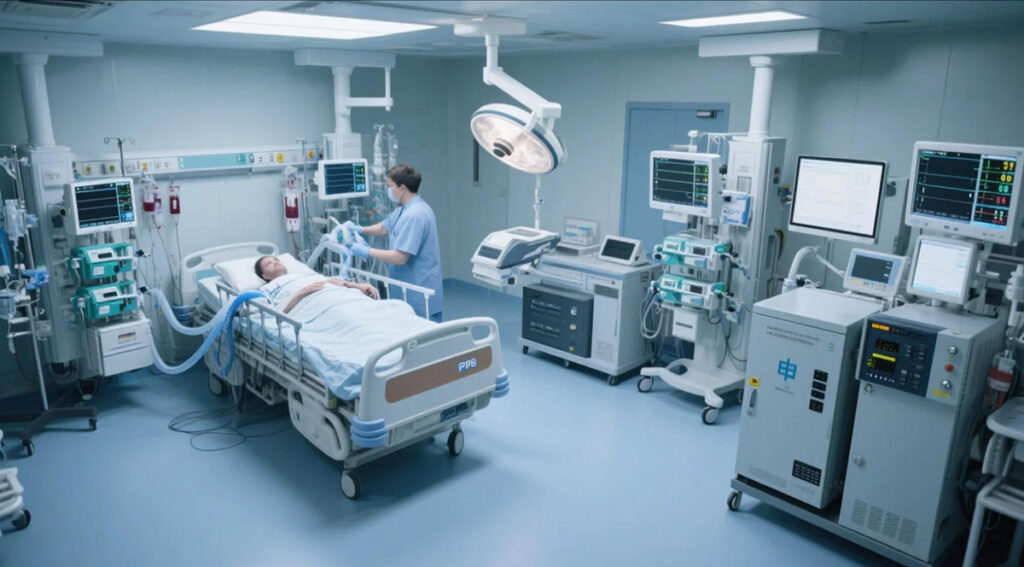

ICUs and Critical Care Units: Powering patient monitors, ventilators, and life-support systems.
Surgical Theaters: Ensuring no power disruption during surgeries.
Diagnostic Equipment: Safeguarding MRI, CT, and X-ray machines from power anomalies.
Laboratories: Maintaining stable power for refrigeration, testing equipment, and IT infrastructure.
