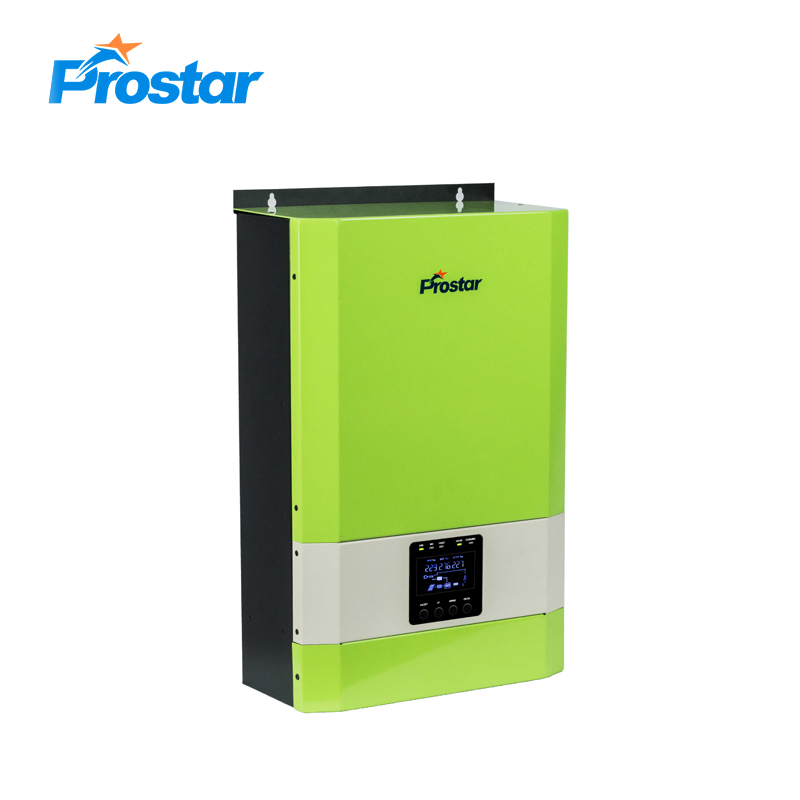

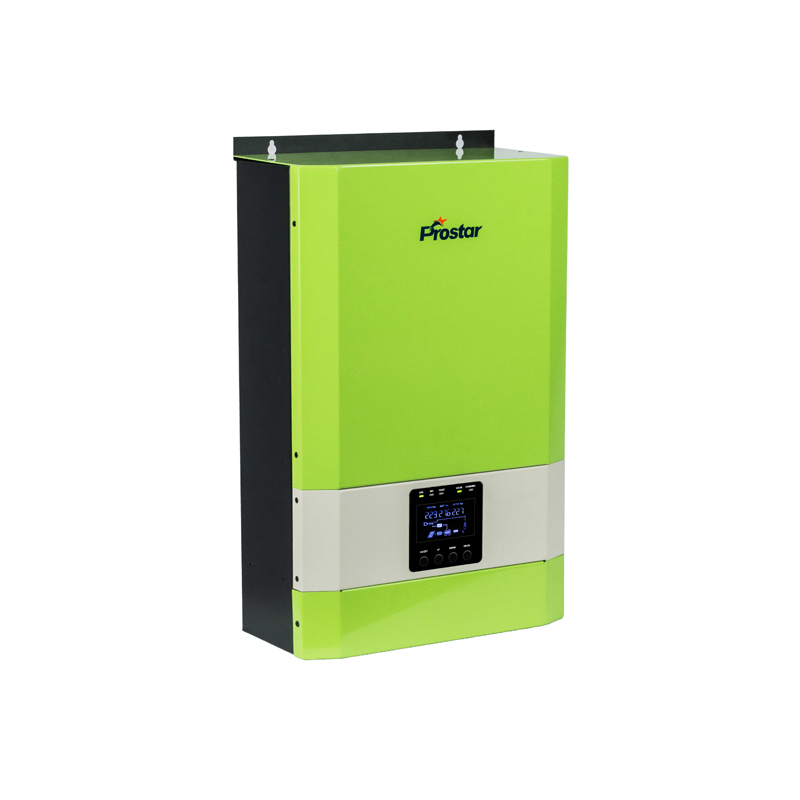

Prostar PSW1K-Pro 12v dc to ac off-grid solar power inverter 1000 watt

Off-grid/Hybrid Solar Inverter 1000W | MPPT Charger | 12VDC | 220Vac/230Vac@50Hz/60Hz | PV Input: 15VDC - 130VDC

SKU: PSW1K-Pro Category:

Prostar PSW1K-Pro 12v dc to ac off-grid solar power inverter 1000 watt converts the direct current of a solar PV system or a solar battery (battery inverter) into alternating current so that all current power loads can also operate without a network connection.

Prostar PSW Pro series inverter is combining functions of off-grid inverter, mppt solar charge controller and isolated transformer, AC transfer from an AC source to AC loads, and integrated with basic battery chargers which can be used to boost the battery from an AC power source to offer an uninterruptible power supply with a compact size.

Solar panels convert sunlight directly into DC electricity which is then stored in deep cycle batteries. In an offgrid solar system it’s the job of off-grid solar power inverter 1000 watt to convert the DC electricity to AC electricity.

solar power inverter 1000 watt

Solar Power Inverter 1000 watt Features & Benefits

1. Pure sine wave inverter
2. Configures quickly into compact wall mounted system
3. Built-in MPPT solar charge controller
4. Built-in isolated transformer
5. Harness the continuously declining production cost of solar power
6. Configurable battery charging current based on applications via LCD setting
7. Intelligent functionality enables self consumption with solar prioritization, peak shaving and, assisting small generators with heavy loads
8. Uninterruptible power supply in case of grid black-out
9. Robust design through rigorous reliability testing
10. Auto access MPP tracking states, be most probable to use PV energy in priority
11. Overload, over-temperature and short-circuit protection
12. Smart multi-stage battery charger with optional equalization for optimized battery performance
13. Cold start function (starting with only battery power and no AC source or PV modules attached)
14. Intelligent AC and PV complementary power supply function to extend the battery life
15. Staggering energy storage and power generation

 System Structure

Solar Power System

 Inverter Working Mode Choice

inverter 2000 watt

Which inverter voltage and loads are there in stand-alone systems?

Off-grid solar systems are direct current systems without a network connection. Small PV plants are usually operated at either 12 or 24 or 48 volts. Higher voltages such as 220 volts alternating current are generated with the aid of an off grid solar power inverter 1000 watt.

 Product Details

The Articles You may Like

    Request Product Price



    * Required

    Model PSW1K-Pro-12 PSW1K-Pro-24
    Rated Power 1000W
    Installation Type Wall Mounting
    INPUT
    Voltage Range 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
    Frequency Range 50/60 Hz±2.5Hz  (Auto sensing)
    OUTPUT
    AC Voltage Regulation 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%(AC Mode±10%)
    Frequency 50HZ/60HZ±0.5HZ Auto(AC Mode±2.5HZ)
    Power Factor 1.0
    Surge Power 3000W
    Capable Of Starting Electric Motor 1HP
    Battery Efficiency 81%
    AC Efficiency 93%
    Transfer Time 8ms default, 4ms optional
    Waveform Pure Sinewave
    BATTERY
    Battery Voltage 12VDC 24VDC
    Floating Charge Voltage 13.6VDC 27.2VDC
    Overcharge Protection 15.0VDC 30.0VDC
    SOLAR CHARGER & AC CHARGER
    Max. PV Array Power 390W 780W
    MPPT Range @ Operating Voltage 15VDC~ 130VDC 30VDC~ 130VDC
    Max. PV Array Open Circuit Voltage 150VDC
    Max. Solar Charge Current 30A default, 10A/20A(optional)
    AC Charge Current 1A-20A Adjustable
    Maximum Charge Current 50A
    Maximum Efficiency 98%
    PROTECTION
    Battery Reversal Optional
    Output Short Circuit AC mode:Jump fuse, Inverter mode: Shut down
    Overload Full load 105%, Inverter alarm. Overload 130%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output. Once the inverter is off, it must be turned on manually.
    High AC Voltage Turn off AC,turn to Inverter mode automatically
    Low DC Voltage Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
    Over Temperature Inverter will alarm and turn off but it will recover to normal status after cooling down
    Isolation Type Built-in Isolated Transformer
    Protection Grade IP20
    ENVIRONMENT
    Humidity 15~93%(No condensation)
    Temperature -10℃ ~ 50℃
    Altitude ≤3000m
    INTERFACE
    Communication USB, RS232/RS485/SNMP (Optional)
    Display LCD + LED
    MECHANICAL SPECIFICATIONS
    Dimension, DxWxH (mm) 450*280*135
    Net Weight (Kgs/PC) 13.9
    Product specifications are subject to change without further notice.
