In the oil and gas sector, operations highly depend on a continuous power supply. This ensures safety and productivity. It also maintains operational efficiency. Whether for offshore rigs, exploration sites, or refinery operations, the ability to keep power during electrical disruptions is crucial. Uninterruptible power system UPS are essential tools for achieving this goal. They offer a safeguard against power outages. These systems guarantee that critical systems stay operational.

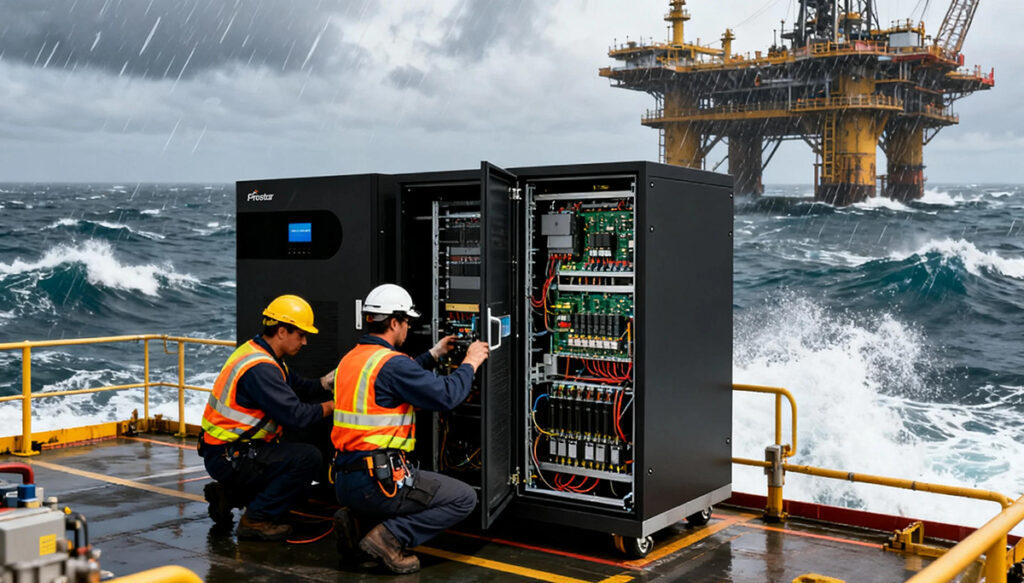

The Role of Uninterruptible Power System UPS in Oil and Gas Operations
The oil and gas industry often operates in challenging environments where power reliability is a constant concern. In remote locations, such as offshore oil rigs or isolated exploration sites, electrical failures can have catastrophic consequences. These include equipment damage, safety hazards, and even environmental disasters. This makes power continuity a non-negotiable priority.
UPS systems provide backup power to critical loads, such as communication systems, drilling equipment, control systems, and safety alarms. When the primary power source fails—due to grid outages, system malfunctions, or natural disasters—the UPS kicks in instantly. It ensures that operations can continue without interruption.
Applications in the Oil and Gas Sector
The oil and gas industry operates in harsh environments where power reliability is non-negotiable. Uninterruptible power system UPS is deployed across various segments to protect equipment and processes.
Exploration and Drilling
Offshore rigs and onshore drilling sites rely on UPS to power control systems, blowout preventers, and data acquisition tools. A power failure during drilling could lead to uncontrolled well pressure, risking blowouts or spills. For instance, UPS ensures continuous operation of supervisory control and data acquisition (SCADA) systems, which monitor real-time data from sensors.
Production and Processing
In refineries and processing plants, Uninterruptible power system (UPS) protects programmable logic controllers (PLCs). It also safeguards distributed control systems (DCS) and safety instrumented systems (SIS). These are essential for maintaining process stability, such as in distillation units or gas compression stations. Even a brief outage could cause equipment damage or hazardous material releases.
Pipeline and Transportation
Pipelines stretching thousands of miles use UPS to power monitoring stations, valve actuators, and leak detection systems. In remote areas prone to weather-related outages, UPS bridges the gap until generators kick in. This prevents interruptions in flow and potential environmental incidents.
Emergency and Safety Systems
UPS is integral to emergency shutdown systems (ESD), fire and gas detection, and communication networks. These systems must comply with standards like API (American Petroleum Institute) and IEC 61511. They must remain functional to ensure worker safety. Rapid response to incidents is also crucial.
Benefits of UPS in Oil and Gas Operations
Ensuring Continuous Operation
UPS systems are designed to supply power instantly in the event of an outage. This is critical for industries like oil and gas. Any downtime can lead to significant financial losses. It also poses safety risks. UPS ensures that essential equipment, such as drilling machinery, control panels, and communication systems, continues to operate seamlessly.
Enhanced Safety and Risk Mitigation
Safety is paramount in the oil and gas sector, and electrical failures can put workers and equipment at risk. A reliable uninterruptible power system UPS protects emergency systems from power loss. These systems include fire alarms, emergency lighting, and control systems. This protection reduces the likelihood of accidents and fatalities.
Protection of Equipment
Oil and gas operations rely on sophisticated machinery and equipment. This machinery can be vulnerable to power surges, brownouts, or total failures. UPS systems stabilize the incoming power supply by filtering out power irregularities, protecting sensitive equipment from potential damage.
Remote Operations Support
Many oil and gas operations take place in remote, off-grid locations. UPS systems are especially useful in these environments. They provide a reliable backup solution when there is no immediate access to grid power. Other reliable sources of electricity may also be unavailable.
Understand the Environmental Conditions
Oil and gas operations often take place in extreme environments that can pose significant challenges for electrical equipment. Offshore rigs, for example, face salty, corrosive air and high humidity. They also endure temperature extremes. Land-based operations may deal with dust, dirt, and high winds. These harsh conditions can affect the performance and longevity of electronic systems, including UPS units.
Challenges of Harsh Environments
Oil and gas facilities, whether onshore drilling rigs, offshore platforms, or refineries, face unique environmental and operational challenges:
- Extreme Temperatures: Desert sites may exceed 50°C (122°F). In contrast, Arctic operations can dip below -40°C (-40°F). These conditions test the thermal resilience of UPS components.
- Corrosive Atmospheres: Exposure to saltwater, hydrogen sulfide (H2S), and other corrosive agents can occur in offshore or refinery settings. These environments can degrade standard equipment.
- Hazardous Areas: Many areas are classified as Zone 1 or Zone 2 under ATEX/IECEx standards. These classifications require explosion-proof or intrinsically safe equipment.
- Space Constraints: Offshore platforms and compact onshore facilities demand compact UPS designs without sacrificing capacity.
- Power Instability: Remote locations often rely on inconsistent grid power or generators, leading to frequent voltage sags, surges, or outages.

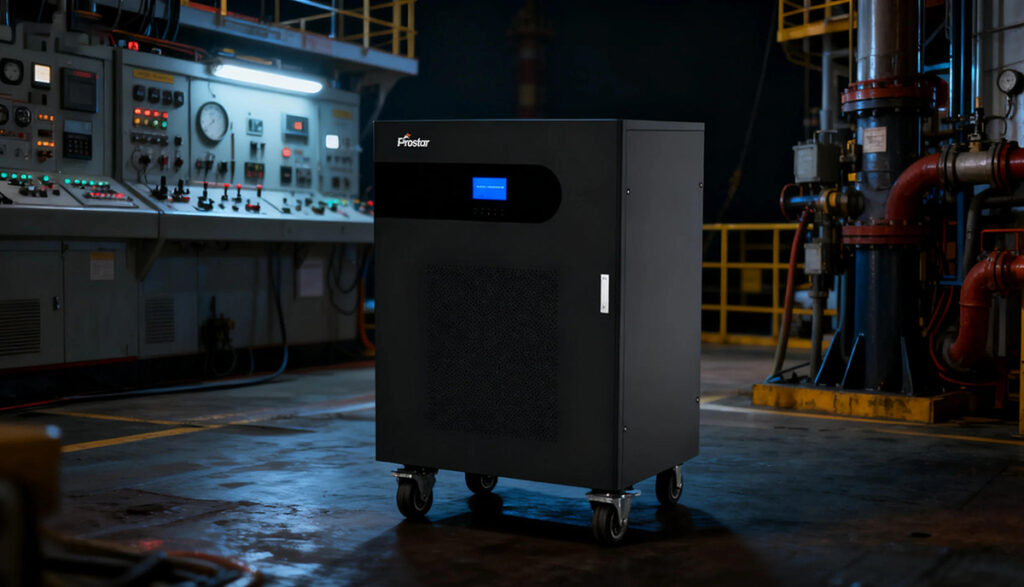

Key Criteria for Selecting Uninterruptible Power System UPS
To ensure reliability in oil and gas environments, consider the following factors when choosing a UPS.
Environmental Durability
When selecting a UPS for these environments, it is essential to consider:
- Temperature Tolerance: Ensure the UPS can operate within the temperature range of the location. In offshore environments, temperatures can fluctuate from freezing to sweltering, while land-based operations may experience extreme heat or cold.
- Corrosion Resistance: Offshore environments expose equipment to corrosive saltwater. Choosing a UPS system with a robust, corrosion-resistant casing or external components is crucial.
- Ingress Protection (IP) Rating: A higher IP rating ensures the UPS is protected from dust, dirt, and moisture. This protection makes it suitable for rugged and outdoor environments.
Power Requirements and Scalability
Oil and gas operations have diverse and fluctuating power demands, depending on the equipment being used. A UPS system must be selected based on the total power capacity required by the critical systems it will support. These can include control systems, communication equipment, emergency lighting, and safety alarms.
Consider the following when evaluating power needs:
- Peak Power Load: Estimate the peak power demand and select a UPS with sufficient capacity to handle those loads. A UPS rated for 10-500 kVA is typical for oil and gas applications.
- Continuous vs. Standby Power: Determine whether the uninterruptible power system UPS will provide continuous power. Alternatively, it may only act as a backup during outages. Continuous power may require more robust systems with higher efficiency.
- Scalability: As oil and gas operations expand, power requirements may increase. Modular UPS systems allow for easy scalability, providing flexibility to meet future power demands.
- Redundancy: N+1 or 2N configurations ensure failover if one unit fails, critical for 24/7 operations.
UPS Type and Technology
There are several types of UPS systems, each offering distinct benefits. The type of UPS chosen should align with the specific operational needs and environment.
Online UPS Systems
These systems provide constant, uninterrupted power by converting incoming AC power to DC and then back to AC. They offer the highest level of protection. This makes them ideal for critical equipment in the oil and gas sector. Even brief interruptions can have significant consequences in this industry.
High-Power UPS Systems
High-power UPS systems are necessary for large-scale operations. These include offshore drilling platforms or oil refineries. Multiple critical systems require simultaneous protection in these environments.
Flywheel UPS Systems
Flywheel systems store energy in the form of kinetic energy, making them highly efficient for high-power applications. They offer the benefit of extended service life. They require less maintenance. This is crucial for remote oil and gas sites where access to maintenance services can be limited.
Modular UPS Systems
Modular systems are highly flexible and scalable, allowing for easy expansion of power capacity as operational needs grow. These systems are particularly beneficial in large-scale oil and gas operations that require dynamic power solutions.
Battery Technology
Battery choice impacts performance and maintenance:
- Valve-Regulated Lead-Acid (VRLA): Common for their cost-effectiveness but require ventilation and struggle in extreme heat.
- Lithium-Ion: Offer longer lifespan (10-15 years vs. 3-5 for VRLA), smaller footprint, and better performance in high temperatures, though at a higher upfront cost.
- Temperature Compensation: Batteries with thermal management systems maintain capacity in extreme conditions.
Maintenance and Reliability
Given the remote locations and often harsh conditions, maintaining a UPS system can be difficult and costly. Reliability is therefore critical, as any failure could lead to costly downtime or even catastrophic safety incidents.
When selecting a UPS, it’s important to:
- Choose Low-Maintenance Systems: Look for UPS units designed for low-maintenance operations. They should function efficiently over extended periods without frequent servicing.
- Remote Monitoring and Diagnostics: Some modern UPS systems come equipped with remote monitoring capabilities. These capabilities allow operators to track system performance. They also help receive alerts for potential issues. This feature can be invaluable in remote locations where on-site intervention may not be possible.
- Quality and Durability: Invest in UPS systems that are built for durability and backed by solid warranties. Systems with proven track records in harsh environments offer greater peace of mind.
Space and Weight Considerations
In many oil and gas operations, space is a precious commodity, especially on offshore platforms or in confined exploration sites. The UPS system must be compact enough to fit within available spaces while still providing the necessary power output.
Key considerations include:
- Compact Design: Choose UPS units with a small footprint, especially for offshore rigs where space is limited.
- Weight: UPS systems, especially those with large battery backups, can be heavy. Ensure that the installation area can accommodate the weight without compromising the stability of the platform or equipment.
Related Uninterruptible Power System UPS
Emerging Trends in UPS for Oil and Gas
Smart UPS
AI-driven analytics predict failures and optimize performance, reducing maintenance costs.
Green Solutions
Hybrid UPS with renewable energy integration supports sustainability goals, especially in remote sites.
Compact Designs
Advances in power electronics enable smaller, high-capacity UPS for space-constrained platforms.
Digital Twin Integration
Virtual models of UPS systems allow real-time performance simulation, aiding in maintenance planning.
