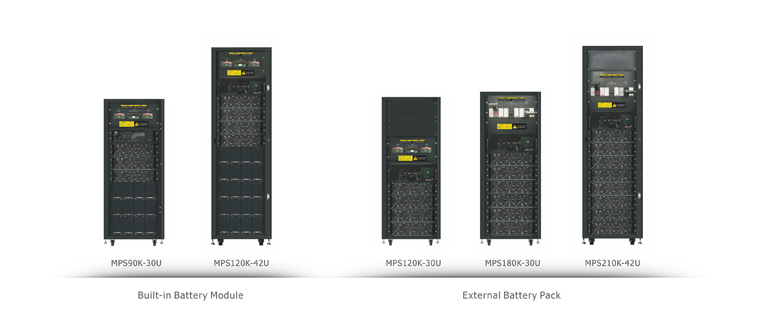

Modular UPS (Uninterruptible Power Supply) and conventional UPS refer to different architectures and designs of uninterruptible power systems. The UPS systems offer several advantages that make them a preferred choice in certain applications.
What is the difference between modular UPS and conventional UPS?
Scalability
- Modular UPS: Users can scale the UPS systems by adding or removing modules as needed, thanks to their designed modular architecture. This makes it easier to expand the capacity of the UPS to meet changing power requirements.
- Conventional UPS: Conventional UPS systems have a fixed capacity and are not easily scalable. To increase capacity, users typically need to invest in a larger, standalone UPS unit.
Redundancy
- Modular UPS: Modular UPS systems often feature built-in redundancy. If one module fails, the remaining modules can continue to provide power, minimizing the risk of downtime.
- Conventional UPS: Conventional UPS systems may have some level of internal redundancy, but a failure in a conventional UPS unit can potentially lead to a complete loss of power.
Maintenance and Serviceability
- Modular UPS: Modular UPS systems are generally easier to maintain and service. Without shutting down the entire UPS, one can repair or replace a module if needed.
- Conventional UPS: Maintenance of conventional UPS systems may require shutting down the entire unit, leading to downtime during servicing.
Flexibility
- Modular UPS: Modular UPS systems offer greater flexibility in terms of configuration and placement. Distributing modules across different locations provides flexibility in terms of space utilization.
- Conventional UPS: Typically, a single, standalone unit characterizes conventional UPS systems, and they may have limitations in terms of installation location.
Initial Cost
- Modular UPS: Modular UPS systems may have a higher upfront cost due to their modular design and scalability features.
- Conventional UPS: Conventional UPS systems may have a lower initial cost, but expansion may require investing in a new, larger unit.
What are the components of modular UPS?
The exact components may vary slightly depending on the specific model and manufacturer, but the following are common components found in the UPS systems:
Power Modules
Power modules are the building blocks of a modular UPS. Each power module typically includes components such as rectifiers, inverters, and DC-DC converters. These modules are hot-swappable, allowing for easy addition or replacement without shutting down the entire system.
Control Module
The control module manages and coordinates the operation of the power modules. It monitors various parameters such as voltage, current, and temperature, and it ensures that the power modules work together seamlessly. The control module often includes a microprocessor for intelligent control and communication capabilities.
Bypass Module
The bypass module provides a way to bypass the UPS system and supply power directly from the utility grid to the connected load in the event of a UPS failure or during maintenance. This ensures continuous power supply even when the UPS is offline.
Battery Modules
Battery modules store electrical energy and provide it to the load during power outages or when the input power falls outside acceptable parameters. These modules may contain maintenance-free sealed lead-acid batteries, lithium-ion batteries, or other energy storage technologies.
Static Switch
The static switch is a key component that automatically transfers the load from the normal power path to the bypass path in case of a UPS failure. This ensures a smooth transition and maintains power continuity.
Enclosure and Rack
The components are housed within an enclosure, which may be in the form of a rack or a standalone cabinet. The enclosure provides protection, organization, and, in some cases, helps manage heat dissipation.
Modular Expansion Slots
The UPS systems often have expansion slots or ports to accommodate additional power modules or accessories, allowing for future scalability.
Conclusion
These components work together to provide a flexible, reliable, and scalable power protection solution in modular UPS systems. The modular design allows for easier maintenance, scalability, and adaptability to changing power requirements.
