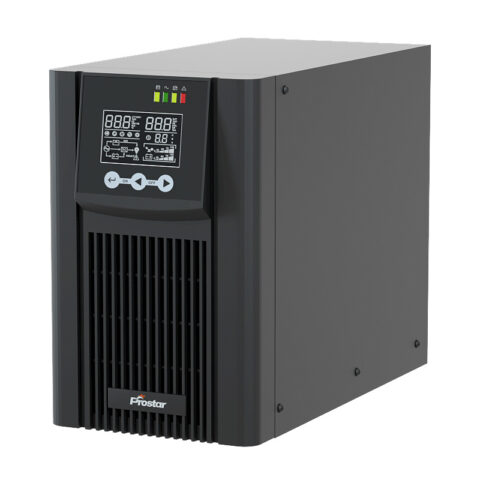

PET1101 long runtime single phase online double conversion ups 1kva
Double Conversion UPS | 1000VA / 1000W | 36Vdc | 208V/220V/230V/240V | Without battery inside
PET1101 long runtime single phase online double conversion ups 1kva is a professional high frequency online UPS for commercial applications featuring unity Power Factor (PF = 1.0).
Designed in small footprints, it adopts advanced DSP digital control technology to effectively improve product performance and system reliability.
The ECO and frequency inverter operation modes highlight the requirements for a modern versatile UPS.
The Double Conversion UPS uses a two-stage process to convert incoming AC power to DC power and then back to AC power with a pure sine wave output, ensuring clean and stable power for sensitive electronics. This technology provides complete isolation from power line disturbances, such as surges, spikes, and noise, making it ideal for protecting servers, data centers, and other mission-critical applications.
UPS 1KVA Features
- True double conversion
- Microprocessor control optimizes reliability
- DSP technology guarantees high performance
- Sinus shaped power feed (high-frequency pulse width modulation with IGBTs)
- Input power factor correction
- Output power factor 1
- Extremely wide input voltage window of 110 VAC to 300 VAC
- High efficiency up to 95.5%
- 50Hz/60Hz frequency converter mode
- ECO and frequency operating voltage possibilities
- Emergency power off(EPO) function
- Graphic LCD display with interactive multilingual user interface

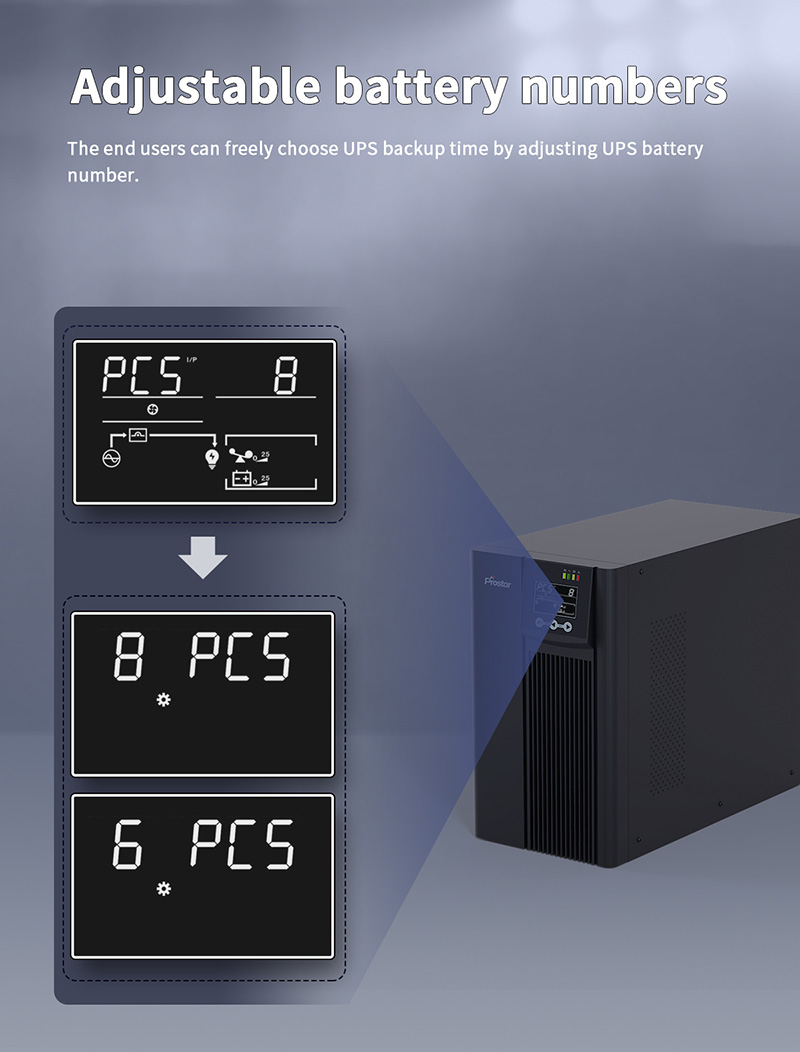

- Select battery numbers

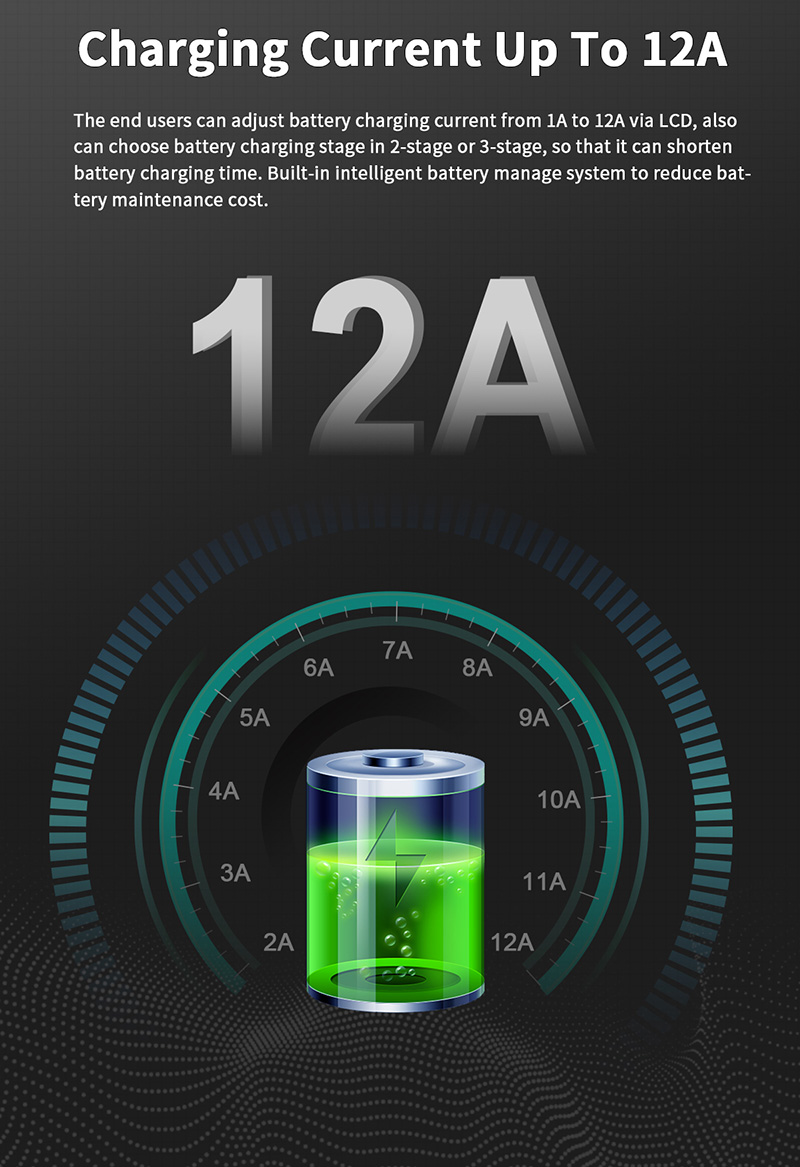

- Adjustable charging current/charging mode via LCD panel
- Charger capacity expansion to 12A for long-run models
- Programmable output voltage
- Cold start by battery without grid Input
- Advanced battery charging technology for maximum durability of the battery
- Generator compatible
- Extension slot for SNMP, potential-free contacts, remote panel
UPS Highlight

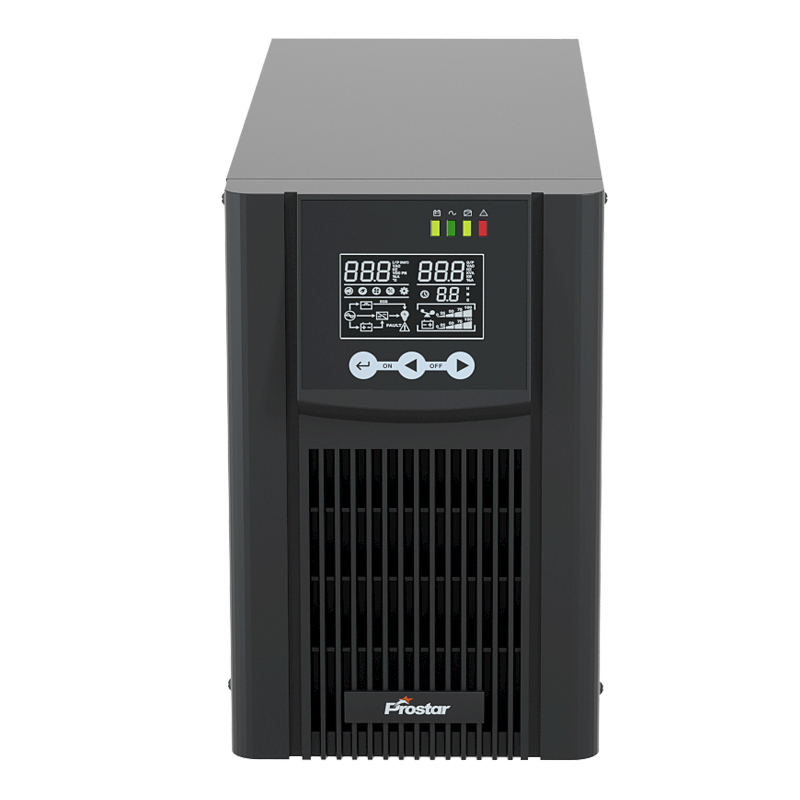

Online UPS 1KVA Details

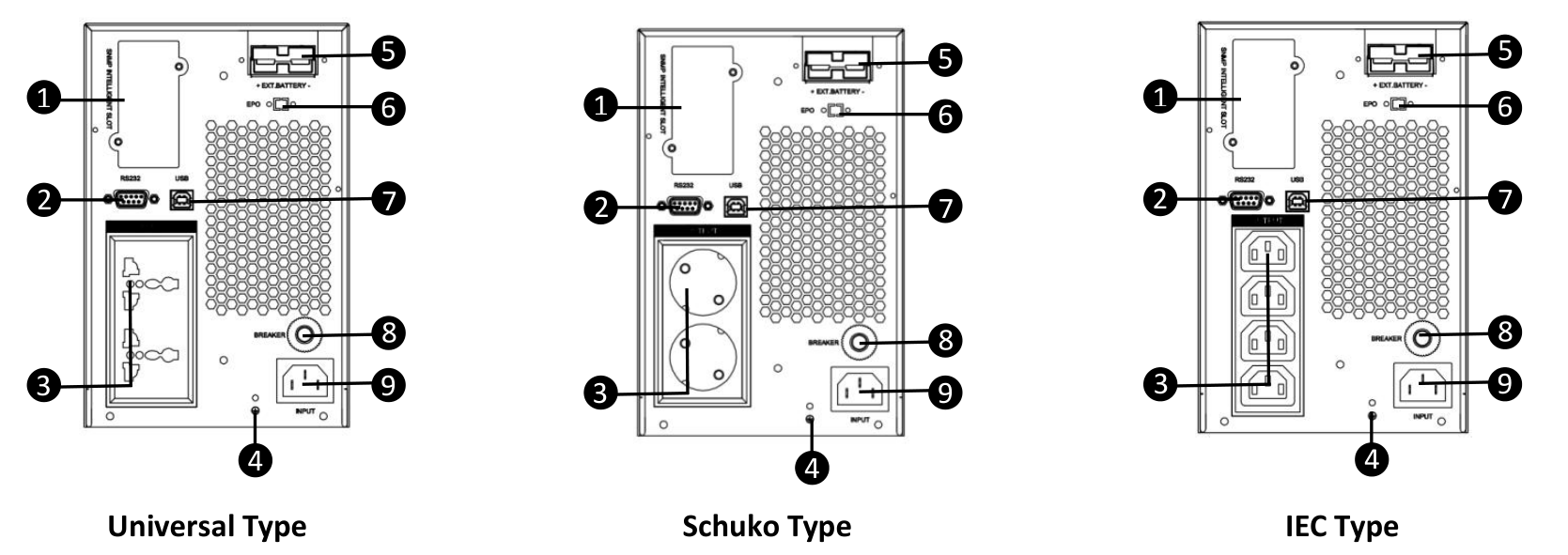

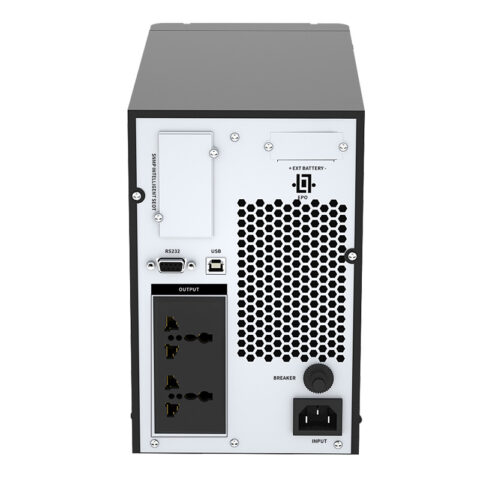

HF Online UPS 1000VA Rear
UPS Power Supply FAQ
-
What is an uninterruptible power supply?
An uninterruptible power supply or a UPS system is an electrical apparatus that provides emergency power to a load when the input power source or mains power fails. A UPS system performs three primary functions: conditions the incoming dirty power from the utility company to give you clean, uninterruptible power, provides ride-through power to cover for sags or short-term outages, and enables seamless system shutdown during a complete power outage.
-
What size UPS do you need?
UPSs are given a power rating in volt-amperes (VA) that range from 300 VA to 5,000 kVA. This rating represents the maximum load that a UPS can support, but it shouldn’t match exactly the power load you have. To allow room for growth, the best practice is to choose a UPS with a VA rating that is 1.2x the total load you need it to support. If your UPS will be supporting motors, variable-speed drives, medical imaging devices or laser printers, add more VA capacity to your requirements to account for the high power inrush that occurs when those devices startup.
Companies that are anticipating rapid growth should use a higher multiplier than 1.2x. Newer server hardware tends to have higher power requirements than older models, so factoring in additional VA will account for adding more and newer equipment.
-
Where is a UPS used?
UPS systems can be used anywhere that needs to ensure that the power keeps on following. The most common applications are where power is critical to avoid infrastructure damage, like in a data center or manufacturing facility.
The Articles You may Like
- What is the difference between online ups and line interactive ups
- Chooce your best value mppt solar charge controller
- Can hybrid inverter work without battery
- You should know the difference between ups and an inverter
- What is a lead acid battery?
- ET100KLV 3 phase 100kva ups data center
| MODEL | PET1101 | |
| CAPACITY | 1000VA / 1000W | |
| Battery Voltage | 36VDC | |
| Size, D X W X H (mm) | 385 X 143 X 222 | |
| Net Weight (kgs) | 4 | |
| INPUT | ||
| Norminal Voltage | 208/220/230/240VAC | |
| Input Voltage Range | 110-300VAC | |
| Frequency Range | 50Hz:44Hz~56Hz or 60Hz:54Hz~66Hz | |
| Phase | Single Phase, L+N+PE | |
| Power Factor | ≧ 0.99 @ nominal voltage (input voltage) | |
| Harmonic Distortion | ≤4% (Linear Load), ≤5% (Non-linear Load) | |
| OUTPUT | ||
| Output voltage | 208/220/230/240VAC | |
| AC Voltage Regulation | ± 1% (Batt. Mode) | |
| Frequency Range(Line Mode) | Synchronized range | |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.1% | |
| Overload Capacity | AC Mode: Battery Mode: 30mins @102%-110% load 1min @102%-110% load 10mins @110%-130% load 10sec @110%-130% load 30sec @130%-150% load 3sec @110%-130% load 200ms @>150% load 200ms @>150% load |
|
| Current Crest Ratio | 3:1 | |
| Harmonic Distortion | ≦3% THD (Linear Load);≦5% THD (Non-linear Load) | |
| Transfer Time | AC Mode to Battery Mode | 0ms |
| Inverter to Bypass | 4ms | |
| Waveform (Batt. Mode) | Pure Sine Wave | |
| EFFICIENCY | ||
| AC Mode | 94.5% | |
| Battery Mode | 88.5% | |
| BATTERY | ||
| Battery Type | Depending on applications | |
| Battery Numbers | 3 PCS | |
| Charging Current | 5A(Default),1A-12A adjustable | |
| Charging Voltage | 41.1VDC ± 1% | |
| Charging Mode | 2-stage or 3-stage | |
| INDICATORS | ||
| LCD Panel | Load level, Battery level, AC mode, Battery mode, Bypass mode,and Fault condictions | |
| ENVIRONMENT | ||
| Ambient temperature | 0- 40°C | |
| Operation Humidity | 20%-95% (non-condensing) | |
| Storage temperature | -15~60℃ (no battery inside) | |
| Altitude | <1000m ( the height above 1000m should be reduced to a maximum of 4000m.) | |
| Noise Level | Less than 50dBA @ 1 Meter | |
| COMMUNICATION | ||
| Communication Inteface | Standard: RS232, USB; Option: Dry contact, EPO | |
| Smart Slot | Optional SNMP Card | |
