An Uninterruptible Power Supply UPS refers to a power system that provides emergency power to a load when the input power source or mains power fails, regarded as near-instantaneous protection from input power interruptions. The three general categories of modern UPS systems are online UPS, line interactive UPS, and offline UPS.
Line interactive UPS vs Online UPS vs Offline UPS: Working Principles
Offline UPS

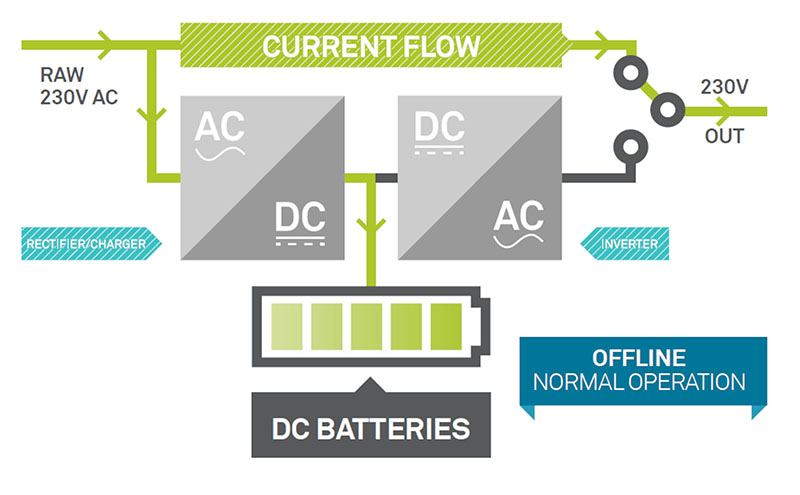

In an off-line (“standby”) UPS system, the load is powered directly by the input power, and the backup power supply circuitry will only be invoked when the utility power fails.
Specifically speaking, the load is fed directly from the raw mains power rather than the inverter output. The energy storage components—battery charger, battery, and inverter are offline as far as the load is concerned, although the charger and battery still remain connected to the mains power in order to ensure the battery is always fully charged. When the mains power voltage fails or exceeds the limits, the switch will immediately connect the inverter output to the critical load.
Line Interactive UPS

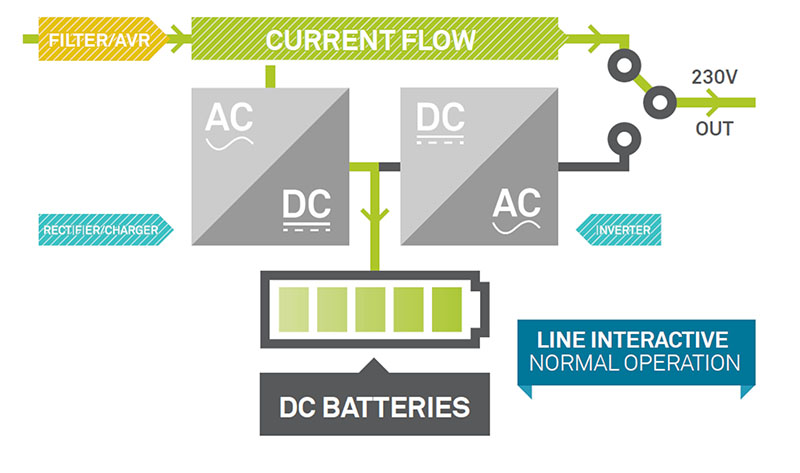

A line interactive UPS maintains the inverter in line and redirects the battery’s DC current path from the normal charging mode to supplying current when power is lost.
In this smart design, the battery-to-AC power inverter is always connected to the output of the UPS. When the input AC power is normal, the inverter of the UPS is in reverse operation and provides battery charging. Once the input power fails, the transfer switch will open and the power will flow from the battery to the UPS output. This design offers additional filtering and yields reduced switching transients since the inverter is always on and connected to the output.
Online UPS
An online UPS uses a “double conversion” method of accepting AC input, rectifying to DC for passing through the rechargeable battery (or battery strings), then inverting back to 120 V/230 V AC for powering the protected equipment.
In an online (aka double-conversion) UPS, the input AC is charging the backup battery source which provides power to the output inverter, so the failure of the input AC won’t cause activation of the transfer switch. That is to say, if a power loss occurs, the rectifier will simply drop out of the circuit and the batteries will keep the power steady and unchanged. No transfer time during the failure. When power is restored, the rectifier will resume carrying most of the load and begin charging the batteries, though the charging current may be limited to prevent the high-power rectifier from overheating the batteries and boiling off the electrolyte.
Line interactive UPS vs Online UPS vs Offline UPS: Functions
All of the above-mentioned three categories are invented to protect hardware and electrical equipment where an unexpected power disruption may happen. However, influenced by various working principles, their inherent capabilities are different.
Surge/Noise Protection
All Network/Server UPS Systems include surge suppression and line noise filtering components to shield your equipment from damage caused by lightning, surges and electromagnetic (EMI/RFI) line noise. On-line UPS systems offer superior protection because the double-conversion operation isolates equipment from problems on the AC line.
Transfer Time to Battery
During an outage, a break in power to a load of typically 2 to 10 milliseconds is inevitable in offline UPS, while line-interactive UPS systems typically transfer from line power to battery-derived power within 2 to 4 milliseconds, faster enough to keep all but a small percentage of the most power-sensitive equipment operating without interruption. Surprisingly, the online UPS system does not have a transfer time, because the inverter is already supplying the connected equipment load when an outage occurs.
Pure Sine Wave OUTPUT
When operating from battery power, a line interactive UPS generates the waveform of its AC output. An online UPS does this continuously. All online and many lineinteractive UPS systems have pure sine wave output. Pure sine wave output provides maximum stability and superior compatibility with sensitive equipment. Pure sine wave power is required by some equipment power supplies and prevents others from overheating, malfunctioning or failing prematurely.
Voltage Regulation
As is known, the voltage regulation is crucial, especially for low voltage conditions. Line-interactive UPS systems use automatic voltage regulation (AVR) to correct abnormal voltages without switching to battery. When voltage crosses a preset low or high threshold value, this type of UPS will detect and use transformers to boost or lower the voltage by a set amount to return it to the acceptable range. Online UPS systems adopt a more precise method of voltage regulation: continuous “double-conversion” operation, isolating connected equipment from problems on the AC line, including blackouts, brownouts, overvoltages, harmonic distortion, electrical impulses, and frequency variations. When not operating from the battery, line-interactive UPS systems typically regulate output within ±8-15% of the nominal voltage (e.g. 120, 208, 230, or 240 volts), whereas online UPS systems typically regulate voltage within ±2-3%.
In fact, there are some common power issues that may occur in daily operations. The table below will present whether the above-mentioned UPS system will protect against the anomalies:
| ITEMS | Offline UPS | Line interactive UPS | Online UPS |
| Power Failure | ✔ | ✔ | ✔ |
| Power Sag | ✔ | ✔ | ✔ |
| Power Surge | ✔ | ✔ | ✔ |
| Under-Voltage | ✔ | ✔ | |
| Over-Voltage | ✔ | ✔ | |
| Electrical Line Noise | ✔ | ||
| Frequency Variation | ✔ | ||
| Switching Transient | ✔ | ||
| Harmonic Distortion | ✔ |
Line interactive UPS vs Online UPS vs Offline UPS: Pros and Cons
When it comes to an apples-to-apples comparison, the analysis of their advantages and disadvantages can’t be ignored, which may help to make a wise decision among the objects. In the following, the benefits and limitations of these three topologies of the UPS system will be presented clearly.
Offline UPS
 |  |  |
| High quality led small offline computer backup ups 500va 300w 12v | Best uninterruptible power supply computer backup ups 650va 390w | Low cost 12v backup power supply offline ups 1000va 600w for home |
Advantages:
- High-efficiency (The charger is not constantly on).
- User-friendly to operate.
- Affordable price.
- Built-in storage batteries inside.
Disadvantages:
- Uses battery during brownouts, limited or no protection against power irregularities.
- The load is continuously exposed to spikes, transients, and any other aberrations coming down the power line, resulting in the risk of loss or damage to sensitive equipment and data.
- Finite transfer time from mains power to inverter when the mains power supply fails.
- Short backup time.
Line Interactive UPS
Advantages:
- High-reliability.
- High-efficiency.
- Reasonable voltage conditioning.
- Lower electricity consumption.
- Lower component count.
- Lower operating temperatures.
- Offers long-run types and standard types.
Disadvantages:
- Not protect against all forms of power irregularities.
- Do not provide power-factor correction or frequency regulation.
- Require frequent battery use in areas of extreme voltage distortion.
Online UPS
 |  |  |
| ET30K 3 phase double conversion long backup power supply ups 30kva | ET60K 3 phase commercial critical power supply 60kva ups data center | ET100K 3 phase healthcare 100 kva ups uninterrupted power supply |
Advantages:
- Better voltage regulation.
- Conversion time from DC to AC is negligible with no gaps in coverage.
- No fluctuations in the voltage, indicating stable voltage quality.
- The quality of the load voltage is free from distortion.
- Near ideal electrical output, highest protection against all power irregularities.
Disadvantages:
- Complex designs requiring a large heat sink.
- Higher power dissipation.
- The overall efficiency of UPS is reduced.
- The wattage of the rectifier is increased (It has to supply power to the inverter as well as charge the battery).
- Costlier than other UPS systems.
Applications
Considering the previous benefits and limitations and combining the current situation with your expectations, it’s time to deploy the three topologies into practical applications. The applications of these three topologies with different operating principles vary from small-size residential homes to large-scale data centers.
Due to its higher energy efficiency and economical nature, offline UPS is most commonly-used for households, small offices with low-budgets for power designs, and some fields that have relatively low requirements for power supply quality. Best value for personal computers, and also suitable for printers, scanners, emergency power supply.
As one of the main choices, line interactive UPS that meets the demands of high power reliability is ideal for departmental servers, homes, small businesses, and medium enterprises. In some infrastructure challenged areas where the AC line voltage is unstable, fluctuates wildly, or is highly distorted, a line interactive UPS may need to charge the battery once or twice a day or even more frequently.
The most intelligent online UPS system, regarded as a default solution for providing backup power and protection to mission-critical equipment and servers at data centers, can also be applied in fields like computer, transportation, banking, securities, communications, medical requiring a long-time power supply. Specifically, for some induction motor drives and similar other motor control applications, intensive care units, medical equipment, sensitive electrical appliances.
How to Decide
While an online UPS is the top of the line protection available, it can be costly. These units are best suited for sensitive mission-critical equipment that handles very sizable amounts of power. Many people are looking for great protection that won’t hurt the budget too much, which is where the line interactive units come into play. Line interactive UPSs are a great balance between protection and quality. Minuteman’s line interactive UPSs range from 500VA to 3000VA to ensure the right fit for every system.
In short, offline UPS or line interactive UPS may be cheaper, but they won’t provide you the same level of protection as an double conversion online ups system. If you want your mission-critical equipment to survive any of the nine power anomalies we discussed, an online double conversion system is the best option for your facility.
