• PET1102 single phase pure sine wave double conversion online ups 2kva

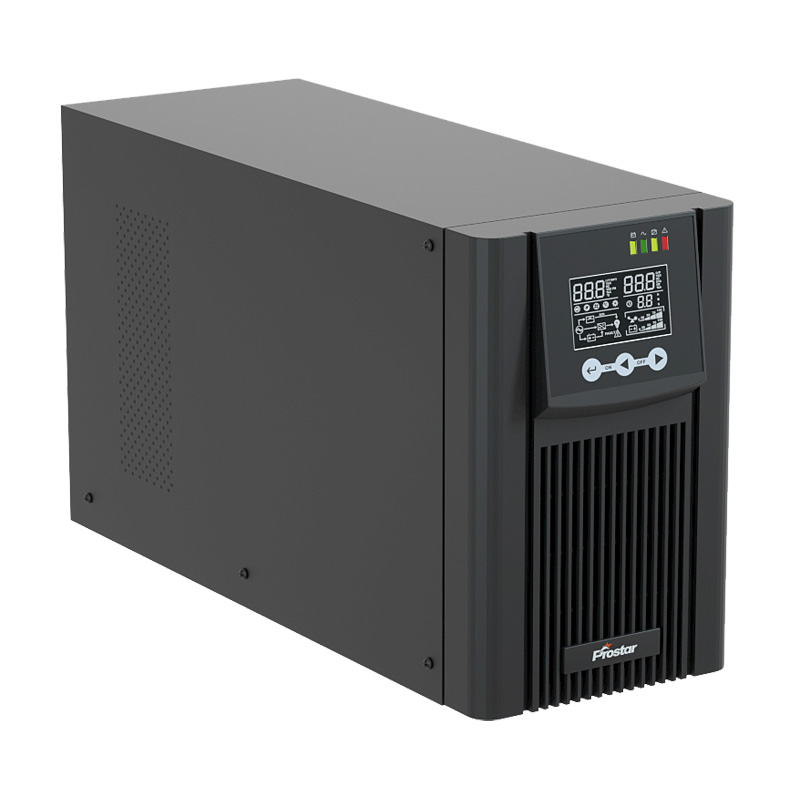

PET1102 single phase pure sine wave double conversion online ups 2kva

Double Conversion UPS | 2000VA / 2000W | 72Vdc | 208V/220V/230V/240V | Without battery inside

SKU: PET1102 Category:

Prostar PET1102 single phase pure sine wave double conversion online ups 2kva is a transformer-less UPS that combines high efficiency values with compact footprint and flexible configurations.

The ECO and frequency inverter operation modes highlight the requirements for a modern versatile UPS.

PET1102 single phase online ups 2kva is the perfect solution for supplying sensitive mission critical utilities. The applications require reliability and performance from an uninterruptible power supply.

Single phase pure sine wave double conversion online ups 2kva is a reliable and efficient solution for protecting critical equipment from power disturbances, ensuring uninterrupted operation and minimizing downtime.



PET single phase pure sine wave double conversion online ups 1KVA-3KVA

Online UPS 2KVA Features

  • True double conversion
  • Microprocessor control optimizes reliability
  • DSP technology guarantees high performance
  • Input power factor correction
  • Output power factor 1
  • Extremely wide input voltage window of 110 VAC to 300 VAC
  • High efficiency up to 95.5%
  • 50Hz/60Hz frequency converter mode
  • ECO and frequency operating voltage possibilities
  • Emergency power off(EPO) function
  • Graphic LCD display with interactive multilingual user interface
  • Select battery numbers
  • Adjustable charging current/charging mode via LCD panel
  • Charger capacity expansion to 12A for long-run models
  • Programmable output voltage
  • Cold start by battery without grid Input
  • Generator compatible
  • Extension slot for SNMP, potential-free contacts, remote panel

UPS Highlight

PET single phase pure sine wave double conversion online ups 1KVA-3KVA PF1

PET single phase online UPS 1KVA-10KVA battery charging current

PET single phase online UPS 1KVA-10KVA adjustable battery numbers

Online UPS 2KVA Details

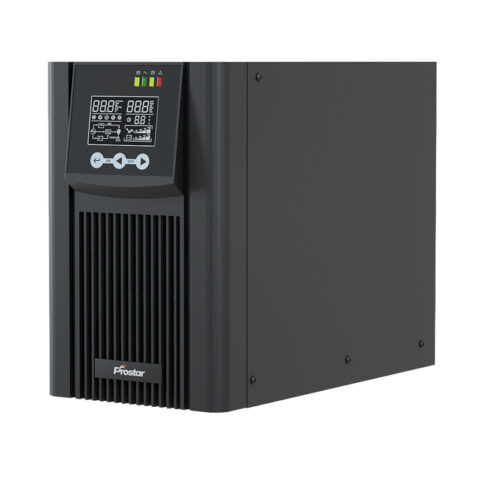

PET1102 single phase pure sine wave double conversion online ups 2kva

PET1102 single phase pure sine wave double conversion online ups 2kva

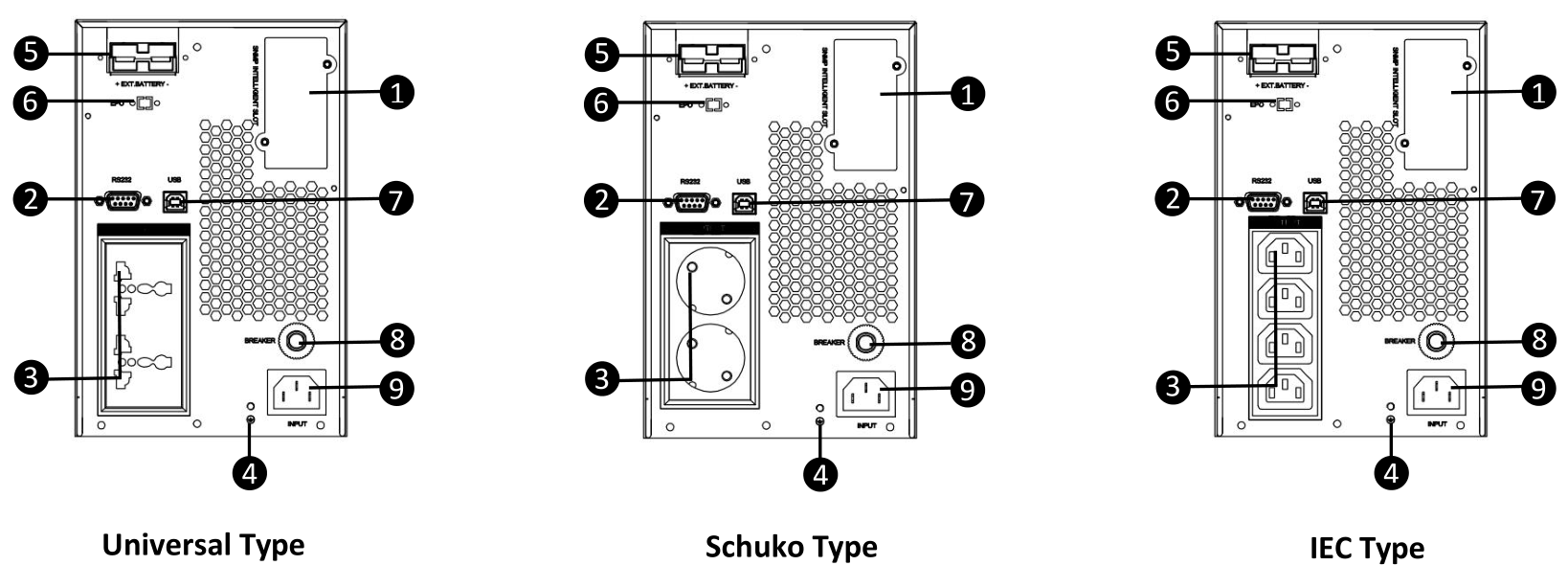

HF Online UPS 2000VA Rear

PET1102 Single Phase HF Online UPS 2000VA Rear

Single Phase HF Online UPS Rear Description





UPS Power Supply FAQ

  1. What is an uninterruptible power supply?

    An uninterruptible power supply provides emergency power to a load when the input power source or mains power fails. A UPS system performs three primary functions: conditions the incoming dirty power from the utility company to give you clean, uninterruptible power, provides ride-through power to cover for sags or short-term outages, and enables seamless system shutdown during a complete power outage.

  2. What will occur if a UPS system fails?

    While UPS systems are generally reliable, there can be occasions when they fail. In a worst-case scenario, although it is unlikely, you could lose valuable data which could damage your business and lead to business disruption. This small risk is not worth taking, however, there is a solution.

    When you purchase your UPS system, you will receive a manufactures warranty that will cover replacement parts to ensure reliability.

    Also, you can protect against possible UPS failures by

    • Installing the appropriate UPS size
    • Having a professional properly install the UPS
    • Providing your UPS system with proper maintenance.
  3. How should I choose a UPS?

    You need to make a note of the number of gadgets that need to function in the eventuality of a power cut, and the battery backup power requirement. Additional battery capacity should always be planned keeping future expansion in mind. These pointers will help you choose the right UPS for your ideal backup power supply requirement.

The Articles You may Like

    Request Product Price


    * Required

    MODEL PET1102
    CAPACITY 2000VA / 2000W
    Battery Voltage 72VDC
    Size, D X W X H (mm) 395 X 143 X 222
    Net Weight (kgs) 6
    INPUT
    Norminal Voltage 208/220/230/240VAC
    Input Voltage Range 110-300VAC
    Frequency Range 50Hz:44Hz~56Hz or 60Hz:54Hz~66Hz
    Phase Single Phase, L+N+PE
    Power Factor ≧ 0.99 @ nominal voltage (input voltage)
    Harmonic Distortion ≤4% (Linear Load), ≤5% (Non-linear Load)
    OUTPUT
    Output voltage 208/220/230/240VAC
    AC Voltage Regulation ± 1% (Batt. Mode)
    Frequency Range(Line Mode) Synchronized range
    Frequency Range (Batt. Mode) 50 Hz or 60Hz ± 0.1%
    Overload Capacity AC Mode:                                                                       Battery Mode:
    30mins @102%-110% load                                             1min @102%-110% load
    10mins @110%-130% load                                             10sec @110%-130% load
    30sec @130%-150% load                                                3sec @110%-130% load
    200ms @>150% load                                                      200ms @>150% load
    Current Crest Ratio 3:1
    Harmonic Distortion ≦3% THD (Linear Load);≦5% THD (Non-linear Load)
    Transfer Time AC Mode to Battery Mode 0ms
    Inverter to Bypass 4ms
    Waveform (Batt. Mode) Pure Sine Wave
    EFFICIENCY
    AC Mode 95.5%
    Battery Mode 91.5%
    BATTERY
    Battery Type Depending on applications
    Battery Numbers 6 PCS
    Charging Current 5A(Default),1A-12A adjustable
    Charging Voltage 82.2VDC ± 1%
    Charging Mode 2-stage or 3-stage
    INDICATORS
    LCD Panel Load level, Battery level, AC mode, Battery mode, Bypass mode,and Fault condictions
    ENVIRONMENT
    Ambient temperature 0- 40°C
    Operation Humidity 20%-95% (non-condensing)
    Storage temperature -15~60℃ (no battery inside)
    Altitude <1000m ( the height above 1000m should be reduced to a maximum of 4000m.)
    Noise Level Less than 50dBA @ 1 Meter
    COMMUNICATION
    Communication Inteface Standard: RS232, USB; Option: Dry contact, EPO
    Smart Slot Optional SNMP Card
