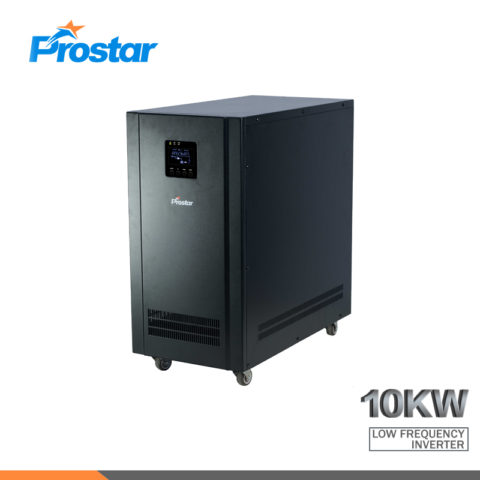

Prostar PIH10K-96 single phase ac dc power supply inverter 10kW 96V

Prostar PIH10K-96 single phase ac dc power supply inverter 10kW 96V is an electronic device or circuitry that changes direct current (DC) to alternating current (AC).

SKU: PIH10K-96 Category:

Prostar PIH10K-96 single phase ac dc power supply inverter 10kW 96V is an electronic device or circuitry that changes direct current (DC) to alternating current (AC). The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry. The inverter does not produce any power; the power is provided by the DC source.

Prostar ac dc power supply inverter 10kW can be entirely electronic or may be a combination of mechanical effects (such as a rotary apparatus) and electronic circuitry. Static inverters do not use moving parts in the conversion process.

Prostar 96V ac dc power supply inverter 10kW is capable of producing 110Vac/120Vac/220Vac/230Vac. It will work virtually anywhere in the world, with the ability to auto detect 50Hz or 60Hz.

96v inverter built-in charger allows for you to use your existing grid power to maintain a charge on your batteries.

Prostar 96V ac dc power supply inverter 10kW which produces a multiple step sinusoidal AC waveform is referred to as a sine wave inverter. To more clearly distinguish the inverters with outputs of much less distortion than the modified sine wave inverter designs. Almost all consumer grade inverters that are sold as a “pure sine wave inverter” do not produce a smooth sine wave output at all, just a less choppy output than the square wave and modified sine wave inverters. However, this is not critical for most electronics as they deal with the output quite well.

Where power inverter devices substitute for standard line power, a sine wave output is desirable because many electrical products are engineered to work best with a sine wave AC power source. The standard electric utility provides a sine wave, typically with minor imperfections but sometimes with significant distortion.

  Product Features & Benefits

  • 10KW max continuous power
  • Pure sine wave
  • 96 Volt DC inverter
  • Built-in isolation transformer
  • Volt meter on front panel to monitor your battery voltage
  • Watt meter on front panel
  • LED indicator green/red that monitors ready/fault
  • Isolated ground neutral
  • On/off switch
  • Cold start function
  • Over Temperature protection
  • Over Load protection
  • Cooling fan operation thermally controlled
  • Internally fuse protected
  • AC Charging current max. 20A to meet client requirements for fast charging
  • Adjustable AC charging voltage to adapt to different type of batteries
  • Adjustable AC charging current to meet different capacity of batteries
  • AC output short circuit protection
  • Auto restart while AC is recovering
  • Aluminum case for optimal cooling
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor

Inverter System Structure

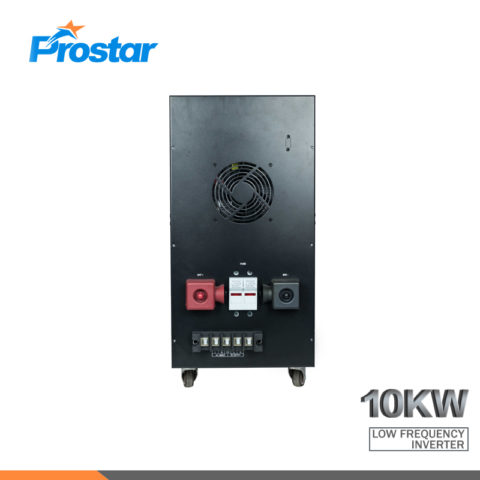

Inverter Details



Other Products

The Articles You may Like

Request Product Price

Model PIH10K-96
Rated Power 10000W
INPUT
Voltage Range 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
Frequency Range 50/60 Hz±2.5Hz Auto
OUTPUT
AC Voltage Regulation 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%(AC Mode±10%)
Frequency 50HZ/60HZ±0.5HZ Auto(AC Mode±2.5HZ)
Power Factor 1.0
Surge Power 30000W
Battery Efficiency 85%
AC Efficiency 93%
Transfer Time 8ms default, 4ms optional
Waveform Pure Sinewave
BATTERY
Battery Voltage 96VDC
Floating Charge Voltage 108.8VDC
Overcharge Protection 120.0VDC
AC Charge Current 1A-20A Adjustable (20A default)
CONNECTOR
AC Input Terminals
AC Output Terminals
PROTECTION
Battery Reversal Optional
Output Short Circuit AC mode:Jump fuse, Inverter mode: Shut down
Overload Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
High AC Voltage Turn off AC,turn to Inverter mode automatically
Low DC Voltage Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
Over Temperature Power Off
ENVIRONMENT
Humidity 15~93%(No condensation)
Temperature -10℃ ~ 50℃
Altitude ≤3000m
Communication USB, RS232, 485, SNMP (Optional)
MECHANICAL SPECIFICATIONS
Dimension, DxWxH (mm) 535*280*525
Net Weight (Kgs/PC) 55.50
Product specifications are subject to change without further notice.
