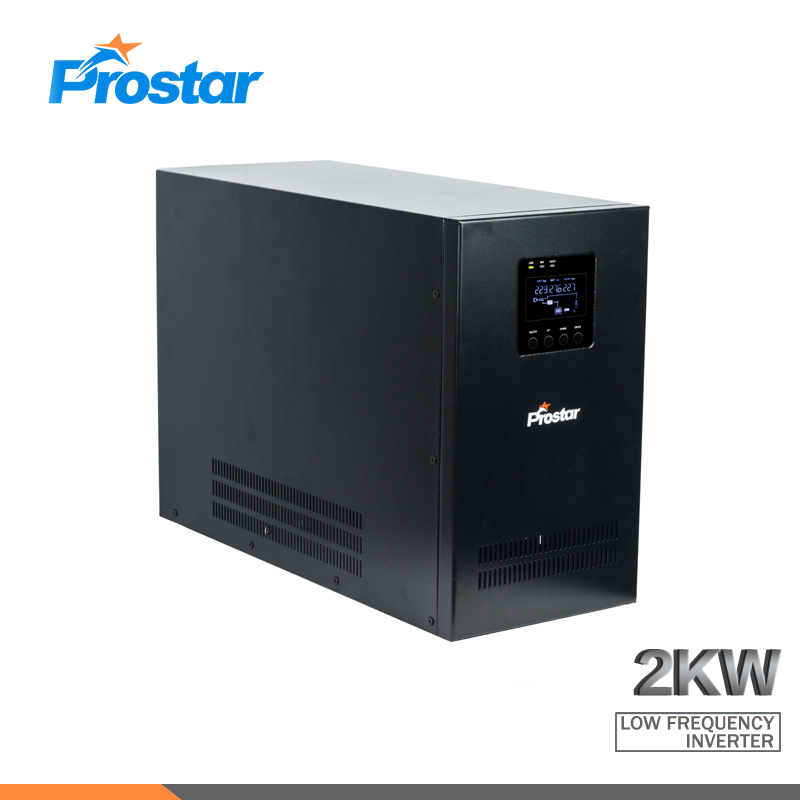

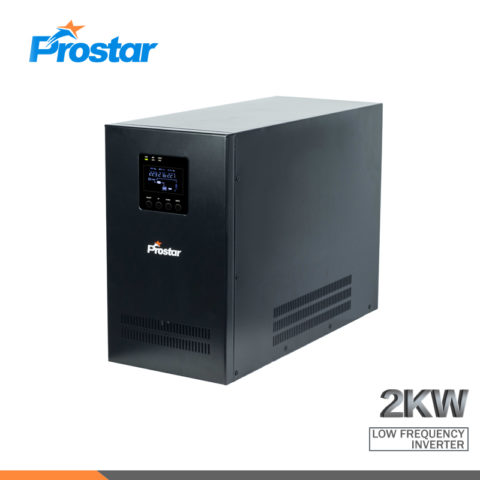

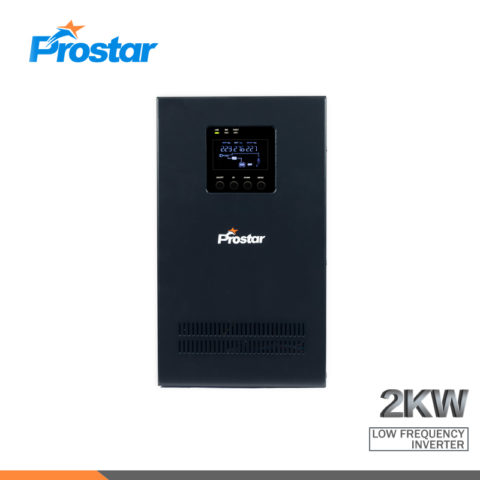

Prostar PIH2K-24 dc to ac 2000w power inverter for home solar system

Pure Sine Wave Power Inverter | 2KW | 24Vdc | 208V/220V/230V/240V @50Hz or 60Hz(Auto) | Surge Power 6000W (3 Times)

SKU: PIH2K-24 Category:

Prostar PIH2K-24 dc to ac 2000w power inverter for home solar system is an electronic device or circuitry that changes direct current (DC) to alternating current (AC). The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry.

Prostar PIH2K-24 dc to ac 2000w power inverter is built-in fuses, cooling fan, multi-protections against low voltage, high voltage, over load, over heating, short circuit and reverse connection, to keep your device running safely and effectively.

Prostar PIH2K-24 dc to ac 2000w power inverter can be entirely electronic or may be a combination of mechanical effects (such as a rotary apparatus) and electronic circuitry. Static inverters do not use moving parts in the conversion process.

Prostar low frequency 24v dc to ac 2000w power inverter is capable of producing 110Vac/120Vac/220Vac/230Vac. It will work virtually anywhere in the world, with the ability to auto detect 50Hz or 60Hz.

Pure sine wave inverter built-in charger allows for you to use your existing grid power to maintain a charge on your batteries.

2000w power inverter

Product Features & Benefits

1- Pure sine wave output
2- Rate power from 500W to 10KW
3- Built-in isolation transformer
4- Smart LCD setting
5- Cold start function
6- Over Temperature protection
7- Over Load protection
8- Cooling fan operation thermally controlled
9- Run with lead acid/lithium battery
10- AC Charging current max. 40A to meet client requirements for fast charging
11- Adjustable AC charging voltage to adapt to different type of batteries
12- Adjustable AC charging current to meet different capacity of batteries
13- AC output short circuit protection
14- Auto restart while AC is recovering

Inverter System Structure

off grid solar systems

Inverter Details

Power inverter LCD

power inverter lcd icons

power inverter

power inverter

power inverter

power inverter

power inverter

power inverter

power inverter



The Articles You may Like

Tags: dc to ac  2000w power inverter solar system

Request Product Price



* Required

Model PIH2K-24 PIH2K-48
Rated Power 2000W
INPUT
Voltage Range 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
Frequency Range 50/60 Hz±2.5Hz Auto
OUTPUT
AC Voltage Regulation 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%(AC Mode±10%)
Frequency 50HZ/60HZ±0.5HZ Auto(AC Mode±2.5HZ)
Power Factor 1.0
Surge Power 6000W
Battery Efficiency 83%
AC Efficiency 93%
Transfer Time 8ms default, 4ms optional
Waveform Pure Sinewave
BATTERY
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27.2VDC 54.4VDC
Overcharge Protection 30.0VDC 60.0VDC
AC Charge Current 8A-40A Adjustable (40A default)
CONNECTOR
AC Input Terminals
AC Output 1 Terminal + 1 Socket
PROTECTION
Battery Reversal Optional
Output Short Circuit AC mode:Jump fuse, Inverter mode: Shut down
Overload Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
High AC Voltage Turn off AC,turn to Inverter mode automatically
Low DC Voltage Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
Over Temperature Power Off
ENVIRONMENT
Humidity 15~93%(No condensation)
Temperature -10℃ ~ 50℃
Altitude ≤3000m
Communication USB, RS232, 485, SNMP (Optional)
MECHANICAL SPECIFICATIONS
Dimension, DxWxH (mm) 472*190*330
Net Weight (Kgs/PC) 21.11
Product specifications are subject to change without further notice.
