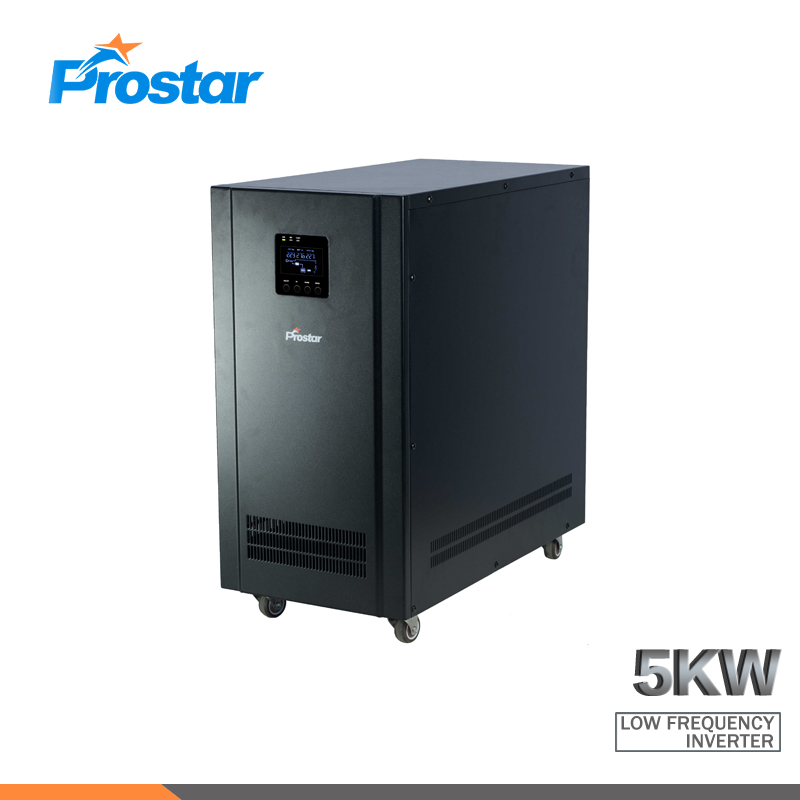

Prostar PIH5K-48 single phase dc ac power inverter 5kw with charger

Prostar PIH5K-48 single phase dc ac power inverter 5kw can be entirely electronic or may be a combination of mechanical effects and electronic circuitry.

SKU: PIH5K-48 Category:

Prostar PIH5K-48  single phase pure sine wave 48V dc ac power inverter 5kw is an electronic device or circuitry that changes direct current (DC) to alternating current (AC). The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry. The inverter does not produce any power; the power is provided by the DC source.

Prostar pure sine wave 48V dc ac power inverter 5kw can be entirely electronic or may be a combination of mechanical effects (such as a rotary apparatus) and electronic circuitry. Static inverters do not use moving parts in the conversion process.

Prostar pure sine wave 48V dc ac power inverter 5kw is capable of producing 110Vac/120Vac/220Vac/230Vac. It will work virtually anywhere in the world, with the ability to auto detect 50Hz or 60Hz.

48vdc inverter built-in charger allows for you to use your existing grid power to maintain a charge on your batteries.

Prostar pure sine wave 48V dc ac power inverter 5kw which produces a multiple step sinusoidal AC waveform is referred to as a sine wave inverter. To more clearly distinguish the inverters with outputs of much less distortion than the modified sine wave inverter designs. Almost all consumer grade inverters that are sold as a “pure sine wave inverter” do not produce a smooth sine wave output at all, just a less choppy output than the square wave and modified sine wave inverters. However, this is not critical for most electronics as they deal with the output quite well.

Where power inverter devices substitute for standard line power, a sine wave output is desirable because many electrical products are engineered to work best with a sine wave AC power source. The standard electric utility provides a sine wave, typically with minor imperfections but sometimes with significant distortion.

  Product Features & Benefits

  • 5KW max continuous power
  • Pure sine wave output
  • 48 Volt DC inverter
  • Built-in isolation transformer
  • Volt meter on front panel to monitor your battery voltage
  • Watt meter on front panel
  • LED indicator green/red that monitors ready/fault
  • Isolated ground neutral
  • On/off switch
  • Cold start function
  • Over Temperature protection
  • Over Load protection
  • Cooling fan operation thermally controlled
  • Internally fuse protected
  • AC Charging current max. 20A to meet client requirements for fast charging
  • Adjustable AC charging voltage to adapt to different type of batteries
  • Adjustable AC charging current to meet different capacity of batteries
  • AC output short circuit protection
  • Auto restart while AC is recovering
  • Aluminum case for optimal cooling
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor

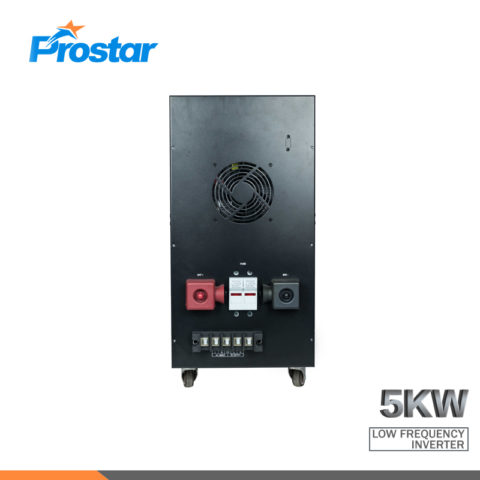

Inverter System Structure

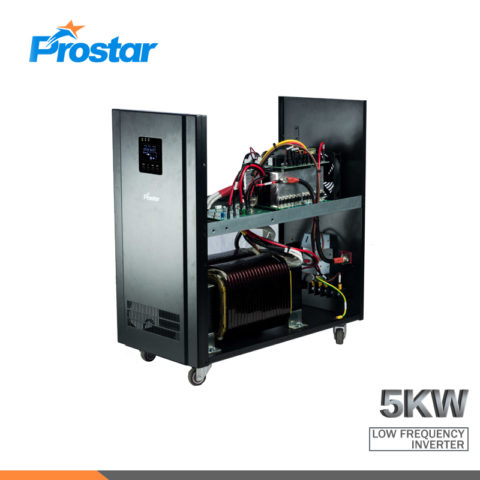

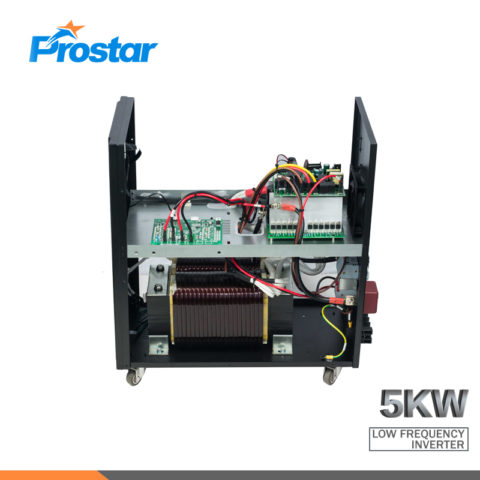

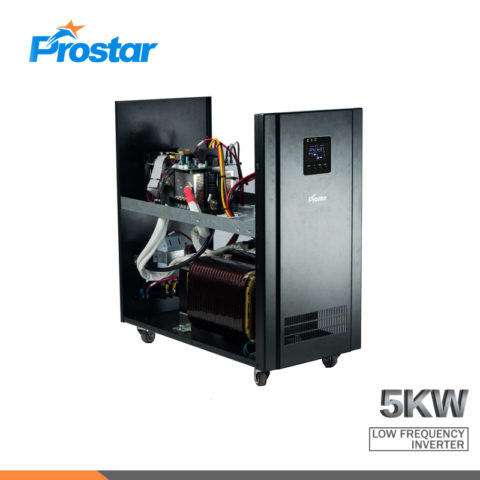

Inverter Details

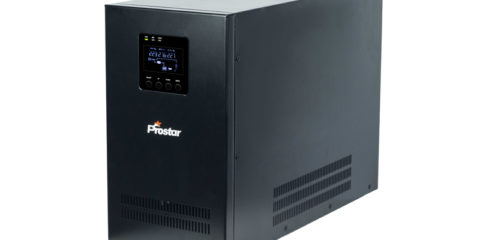

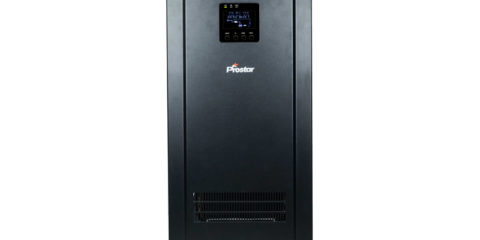

Other Products

The Articles You may Like

    Request Product Price



    * Required

    ModelPIH5K-48
    Rated Power5000W
    INPUT
    Voltage Range100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
    Frequency Range50/60 Hz±2.5Hz Auto
    OUTPUT
    AC Voltage Regulation100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%(AC Mode±10%)
    Frequency50HZ/60HZ±0.5HZ Auto(AC Mode±2.5HZ)
    Power Factor1.0
    Surge Power15000W
    Battery Efficiency85%
    AC Efficiency93%
    Transfer Time8ms default, 4ms optional
    WaveformPure Sinewave
    BATTERY
    Battery Voltage48VDC
    Floating Charge Voltage54.4VDC
    Overcharge Protection60.0VDC
    AC Charge Current8A-40A Adjustable (40A default)
    CONNECTOR
    AC InputTerminals
    AC OutputTerminals
    PROTECTION
    Battery ReversalOptional
    Output Short CircuitAC mode:Jump fuse, Inverter mode: Shut down
    OverloadFull load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
    High AC VoltageTurn off AC,turn to Inverter mode automatically
    Low DC VoltageInverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
    Over TemperaturePower Off
    ENVIRONMENT
    Humidity15~93%(No condensation)
    Temperature-10℃ ~ 50℃
    Altitude≤3000m
    CommunicationUSB, RS232, 485, SNMP (Optional)
    MECHANICAL SPECIFICATIONS
    Dimension, DxWxH (mm)535*280*525
    Net Weight (Kgs/PC)38.61
    Product specifications are subject to change without further notice.
