• pure sine wave inverter 4kw
  • inverter 4kw 48v

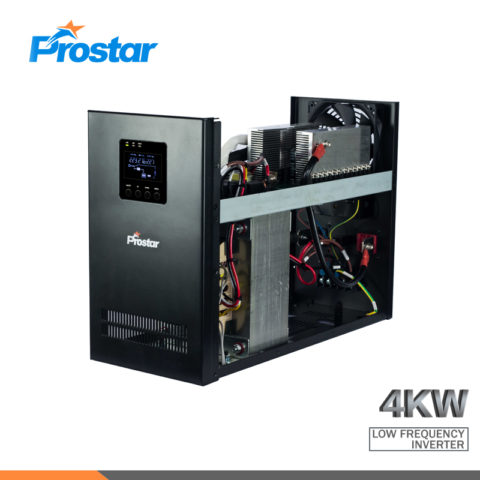

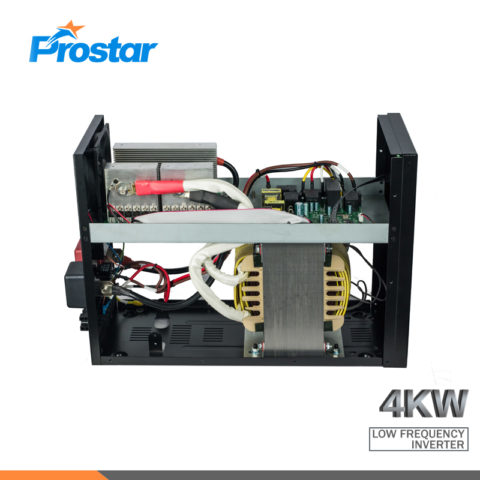

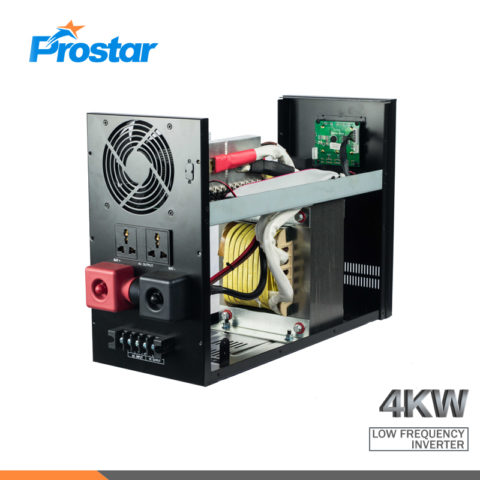

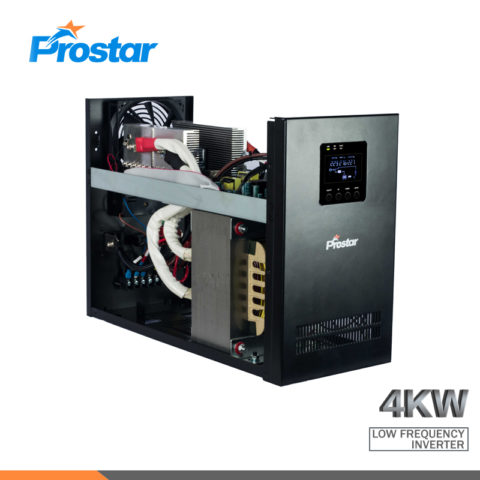

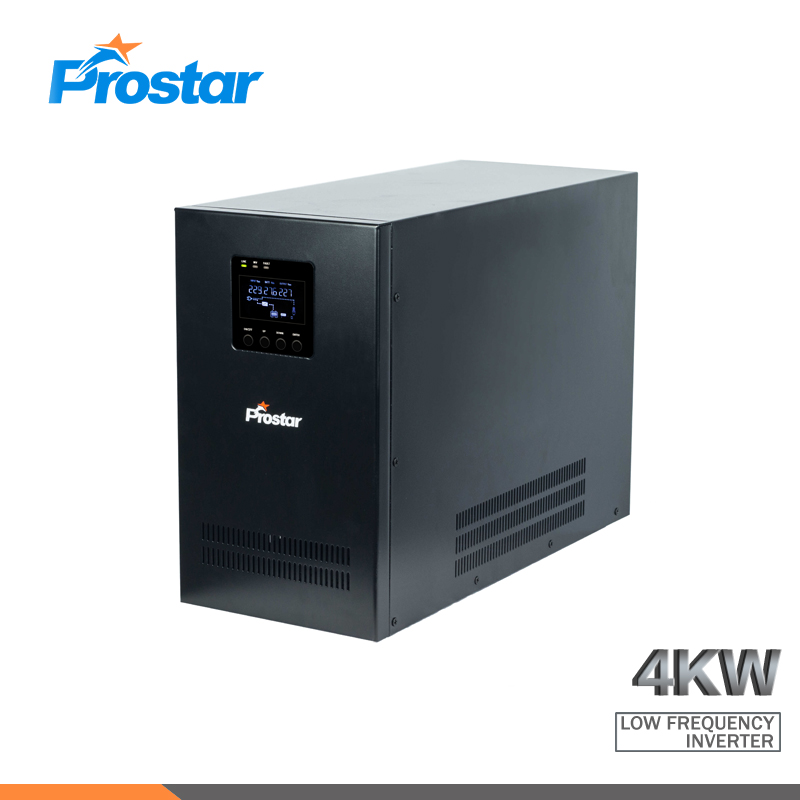

Prostar PIH4K-48 low frequency pure sine wave inverter 4kw 48v off grid

Prostar PIH4K-48 low frequency pure sine wave inverter 4kw 48v can be entirely electronic or may be a combination of mechanical effects and electronic circuitry.

SKU: PIH4K-48 Category:

Prostar PIH4K-48 single phase low frequency pure sine wave inverter 4kw 48v is an electronic device or circuitry that changes direct current (DC) to alternating current (AC). The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry. The inverter does not produce any power; the power is provided by the DC source.

Prostar low frequency pure sine wave inverter 4kw 48v can be entirely electronic or may be a combination of mechanical effects (such as a rotary apparatus) and electronic circuitry. Static inverters do not use moving parts in the conversion process.

Prostar low frequency pure sine wave inverter 4kw 48v is capable of producing 110Vac/120Vac/220Vac/230Vac. It will work virtually anywhere in the world, with the ability to auto detect 50Hz or 60Hz.

Pure sine wave inverter built-in charger allows for you to use your existing grid power to maintain a charge on your batteries.

inverter 4kw 48v

  Product Features & Benefits

  • 4KW max continuous power
  • Pure sine wave output
  • 48 Volt DC inverter
  • Built-in isolation transformer
  • Isolated ground neutral
  • On/OFF switch
  • Cold start function
  • Over Temperature protection
  • Over Load protection
  • Cooling fan operation thermally controlled
  • Internally fuse protected
  • Adjustable AC charging voltage to adapt to different type of batteries
  • Adjustable AC charging current to meet different capacity of batteries
  • AC output short circuit protection
  • Auto restart while AC is recovering
  • Aluminum case for optimal cooling

Inverter System Structure

Inverter Details



Other Products

The Articles You may Like

Now Become A Partner with Prostar!

Request Product Price



* Required

Model PIH4K-24 PIH4K-48
Rated Power 4000W
INPUT
Voltage Range 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
Frequency Range 50/60 Hz±2.5Hz Auto
OUTPUT
AC Voltage Regulation 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%(AC Mode±10%)
Frequency 50HZ/60HZ±0.5HZ Auto(AC Mode±2.5HZ)
Power Factor 1.0
Surge Power 12000W
Battery Efficiency 85%
AC Efficiency 93%
Transfer Time 8ms default, 4ms optional
Waveform Pure Sinewave
BATTERY
Battery Voltage 24VDC 48VDC
Floating Charge Voltage 27.2VDC 54.4VDC
Overcharge Protection 30.0VDC 60.0VDC
AC Charge Current 8A-40A Adjustable (40A default)
CONNECTOR
AC Input Terminals
AC Output 1 Terminal + 1 Socket
PROTECTION
Battery Reversal Optional
Output Short Circuit AC mode:Jump fuse, Inverter mode: Shut down
Overload Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
High AC Voltage Turn off AC,turn to Inverter mode automatically
Low DC Voltage Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
Over Temperature Power Off
ENVIRONMENT
Humidity 15~93%(No condensation)
Temperature -10℃ ~ 50℃
Altitude ≤3000m
Communication USB, RS232, 485, SNMP (Optional)
MECHANICAL SPECIFICATIONS
Dimension, DxWxH (mm) 472*190*330
Net Weight (Kgs/PC) 32.25
Product specifications are subject to change without further notice.
