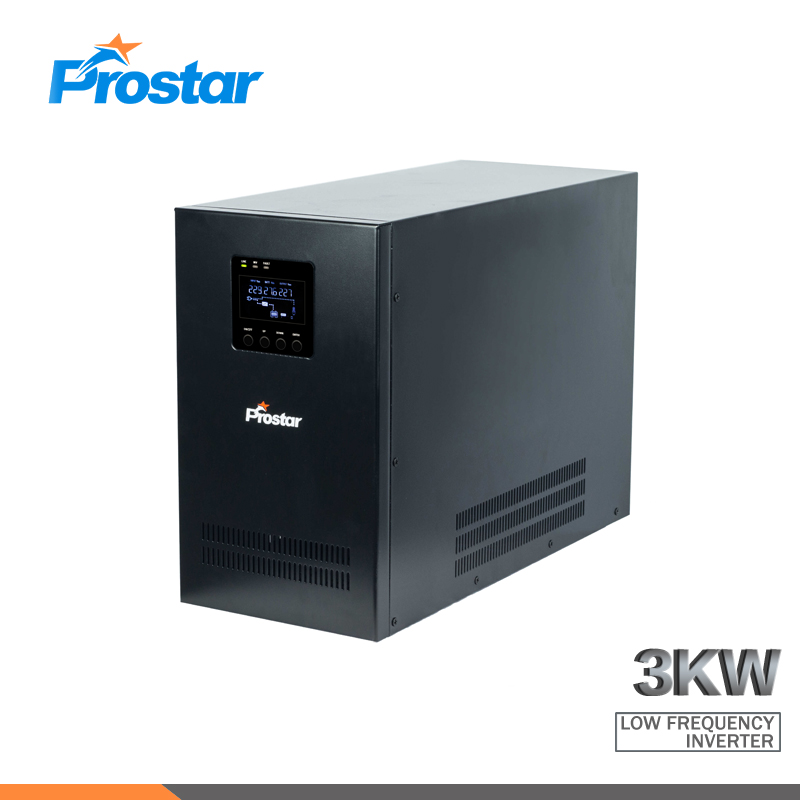

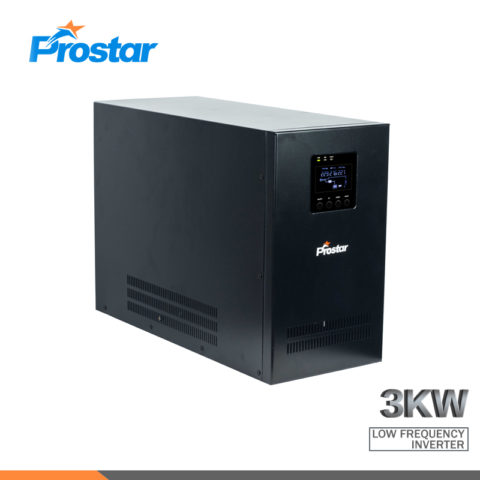

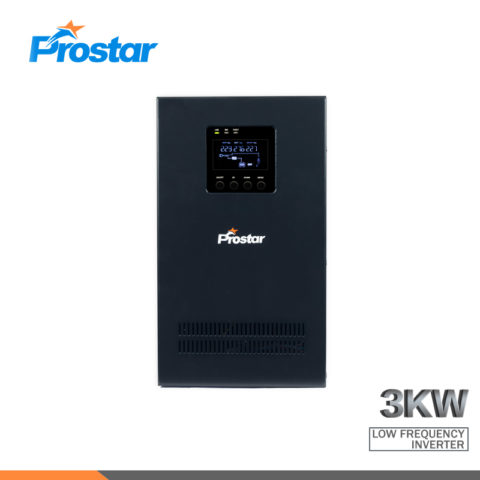

Prostar PIH3K-48 pure sine wave 3000 watt power inverter with charger

Pure Sine Wave Power Inverter | 3000W | 24Vdc / 48Vdc | 220Vac/230Vac@50Hz/60Hz | Surge Power: 9000W

SKU: PIH3K-48 Category:

Prostar PIH3K-48 pure sine wave 3000 watt power inverter with charger is an electronic device or circuitry that changes direct current (DC) to alternating current (AC). The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry. The inverter does not produce any power; the power is provided by the DC source.

Prostar PIH3K-48 pure sine wave 3000 watt power inverter with charger can be entirely electronic or may be a combination of mechanical effects (such as a rotary apparatus) and electronic circuitry. Static inverters do not use moving parts in the conversion process.

Prostar PIH3K-48 pure sine wave 3000 watt power inverter with charger is capable of producing 110Vac/120Vac/220Vac/230Vac. It will work virtually anywhere in the world, with the ability to auto detect 50Hz or 60Hz.

Pure sine wave inverter built-in charger allows for you to use your existing grid power to maintain a charge on your batteries.

3000 watt power inverter

  Product Features & Benefits

  • 3KW max continuous power
  • Pure sine wave output
  • 48 Volt DC inverter
  • Built-in isolation transformer
  • Smart LCD Display
  • Isolated ground neutral
  • ON/OFF switch
  • Cold start function
  • Over Temperature protection
  • Over Load protection
  • Cooling fan operation thermally controlled
  • Internally fuse protected
  • Adjustable AC charging voltage to adapt to different type of batteries
  • Adjustable AC charging current to meet different capacity of batteries
  • AC output short circuit protection
  • Auto restart while AC is recovering
  • Aluminum case for optimal cooling

Inverter System Structure

Inverter Details



Other Products

The Articles You may Like

Now Become A Partner with Prostar!

    Request Product Price



    * Required

    Model PIH3K-24 PIH3K-48
    Rated Power 3000W
    INPUT
    Voltage Range 100V/110V/120V/127AC or 208V/220V/230V/240VAC(+25%,-36%)
    Frequency Range 50/60 Hz±2.5Hz Auto
    OUTPUT
    AC Voltage Regulation 100V/110V/120V/127AC±0.5% or 208V/220V/230V/240VAC±0.5%(AC Mode±10%)
    Frequency 50HZ/60HZ±0.5HZ Auto(AC Mode±2.5HZ)
    Power Factor 1.0
    Surge Power 9000W
    Battery Efficiency 83%
    AC Efficiency 93%
    Transfer Time 8ms default, 4ms optional
    Waveform Pure Sinewave
    BATTERY
    Battery Voltage 24VDC 48VDC
    Floating Charge Voltage 27.2VDC 54.4VDC
    Overcharge Protection 30.0VDC 60.0VDC
    AC Charge Current 8A-40A Adjustable (40A default)
    CONNECTOR
    AC Input Terminals
    AC Output 1 Terminal + 1 Socket
    PROTECTION
    Battery Reversal Optional
    Output Short Circuit AC mode:Jump fuse, Inverter mode: Shut down
    Overload Full load 100%, Inverter alarm. Overload 120%, Inverter shut down output in 10s. Once the load back to normal, Inverter recover output.
    High AC Voltage Turn off AC,turn to Inverter mode automatically
    Low DC Voltage Inverter shut down automatically,Once the AC recover, Inverter turn on and charge automatically
    Over Temperature Power Off
    ENVIRONMENT
    Humidity 15~93%(No condensation)
    Temperature -10℃ ~ 50℃
    Altitude ≤3000m
    Communication USB, RS232, 485, SNMP (Optional)
    MECHANICAL SPECIFICATIONS
    Dimension, DxWxH (mm) 472*190*330
    Net Weight (Kgs/PC) 28.00
    Product specifications are subject to change without further notice.
